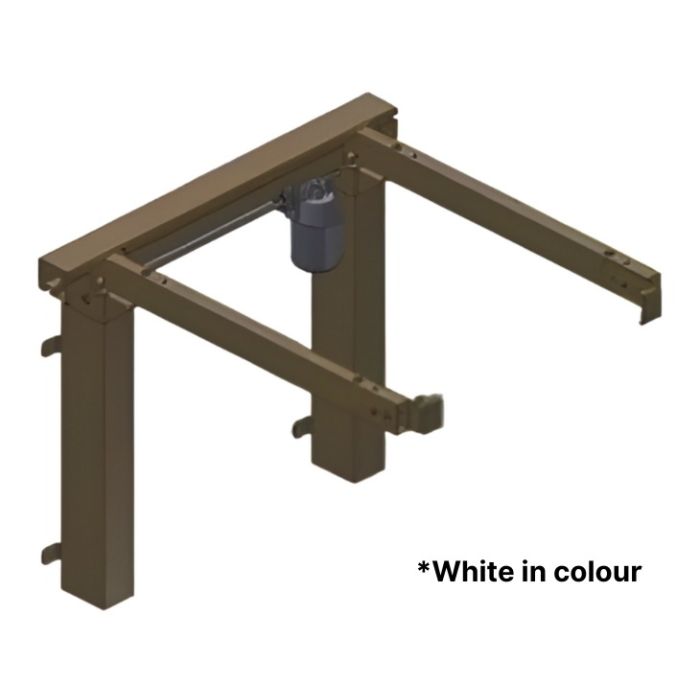

Ropox FlexiElectric Height ADJ Worktop Frame Assembly 500-1040mm (Excludes Safety Stop)
Ropox FlexiElectric electrically height adjustable kitchen worktop frame kit. 650 - 950mm height adjustment. For worktops 500 - 1040mm widths. Choice of support arms for worktop depths of 520 - 620 or 600 - 620mm. Can be floor mounted with extra support feet. Order safety stop strip separately, this is not included.
Ropox self assembly FlexiElectric worktop frame with 650 to 950mm vertical height adjustment via a quiet 24V DC electric motor.
A cost effective way of purchasing this system compared to the ready assembled units, they are also ideal if you have limited space to manoeuvre an assembled frame.
- Ideal for single person and/or multiple users of the kitchen where regular adjustment is required
- Ideal for installing an electric hob or kitchen sink (requires flexible plumbing kit)
- Standard RAL 9010, matt white
- 150kg maximum load - evenly distributed
- Electrical adjustment with two low-noise 24V motors / 2.5A / 50 Hz
- For worktops between 500 to *1040mm in width
- Frame vertically height adjustable from 650 - 950mm
- Choice of support arms for worktop depths of 520 - 620 or 600 - 620mm
- Speed - Approx. 12mm / sec
- Lifting time stroke 30mm: Approx. 30 sec.
- Supplied with (Green/Black) colour coded legs - See Page 6 of the installation instructions for more information.
- *Note: The 1x Motor is recommended for use with worktops up to 1040mm in width, after which 2x motors are required
Kit includes:
- 1x Wall Bar Profile (1150mm length) and Spindle (1050mm length)
- 2x Support Legs
- Choice of 2x Support Arms: 520 - 620 or 600 - 620mm
- 1x Motor with 3000mm cable and Control Unit
- 1x Standard Mini Control Switch with Up/Down arrows (Width x Height) 30 x 60mm
- The Standard Mini Control Switch includes 1500mm cable
Available separately:
- Support feet - to be used if the supporting wall is of insufficient strength
- Height adjustable leg covers - for use with or without support feet
- Flexible plumbing kit
- Safety stop strip - highly recommended, prevents crushing or accidental entrapment. Position along the front edge and sides
- FlexiCorner Bracket Set - joins 2x Flexi height adjustable worktop frame assemblies together
Please note:
- The wall bar and spindle will have to be cut to your required length - the profile should be 50mm shorter than worktop length
- Worktop, wall fixings and front fascia for mounting on the support arms are not included
- Safety stop strips are not included - Available in lengths of 1600, 2400mm
Warranty:
- 1 year manufacturer warranty
Alternative product code:
- This product is also known as the: ACK8500
| Manufacturer | Ropox |
|---|---|
| Mounting / Model | Wall / FlexiElectric |
| Max. Load (kg / St) | 150 / 23.5 |
| Method of Operation | Electric - Push Button |
| Height Adjustment (mm) | 300 |
| Mounting | Wall Mounted, Floor - Optional Feet |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
