Royde & Tucker 120kg Double Action Pivot Door Set, ADJ Top Centre & Floor Mounted Pivot - Satin SS

This heavy duty pivot hinge set from Royde & Tucker allows the door to swing in either direction.

Constructed from stainless steel, the sets are British made to ensure quality.

Key benefits:

• Allows doors to swing in either direction
• Door plates radii for easy preparation
• Floor mounting lower pivot
• Top and bottom plates have HI-LOAD maintenance free oil impregnated bronze bearings
• Maintenance free - 25 year manufacturer guarantee
• Satin Stainless steel - grade 304

Technical details:

• Adjustable top centre and floor mounted pivot
• Allows +/-5.5mm lateral adjustment at head and base of the door
• Minimum door thickness 44mm
• Heavy duty for doors up to 120kg
• Maximum door width 1100mm
• 44mm thick doors require R9 radius on pivot edge
• 54mm thick doors require R15 radius on pivot edge

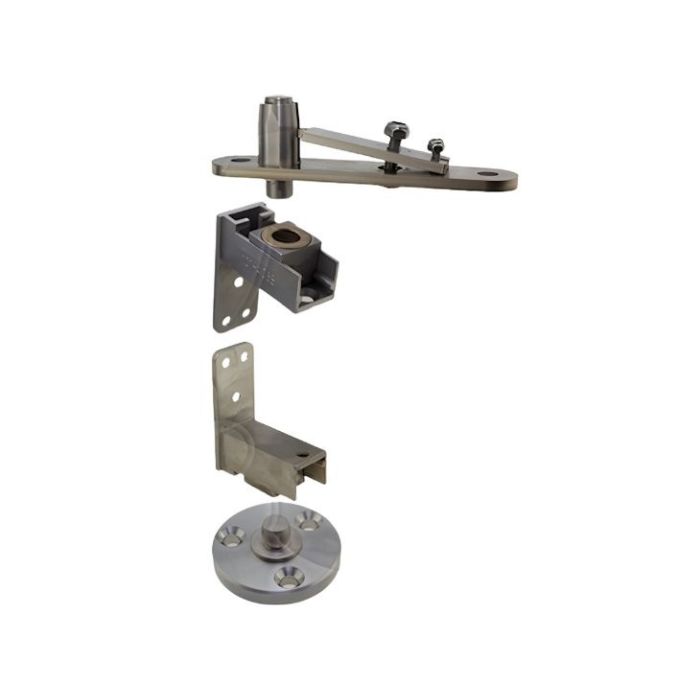

Parts supplied:

• 2x Adjustable door bracket
• 1x Top frame bracket
• 1x Bottom floor pivot bracket
• 4x 1-1/4" x No. 10 Woodscrews
• 3x 1-1/4" x No. 12 Woodscrews
• 6x 1-1/4" x No. 8 Woodscrews
• 1x Allen Key for top frame bracket
• Installation Instructions

Please note:

• Not suitable for Fire Doors. See Product Code: H131-401, which is suitable for FD30 and FD60 Fire Doors

Recommended accessories:

• Emergency release door stop - prevents pivot swing except in cases of emergency
• Brush strips - it is recommended that both lock and hinge stiles are brush stripped for privacy
