Royde & Tucker Double Action Pivot Door Set, 120kg Floor Mounted Lower Pivot Bracket - Satin SS

This pivot hinge set from Royde & Tucker allows doors to swing in either direction.

Constructed from stainless steel, the sets are British made to ensure quality.

Key benefits:

• Allows doors to swing in either direction
• Door plates radii R12.5 for easier preparation
• Floor mounting lower pivot
• Top and bottom plates have HI-LOAD maintenance free oil impregnated bronze bearings
• Suitable for FD30 and FD60 doors, to BS 476 for both single and double door applications
• Maintenance free - 25 year manufacturer guarantee
• Grade 304 stainless steel
• Satin finish

Technical details:

• Minimum door thickness 44mm
• To suit internal doors weighing up to 120kg
• Maximum door width 1100mm
• For 44mm non-Fire Rated doors an R9 radius is required on the pivot edge with a 4mm door and frame gap
• For 44mm thick Fire doors an R15 radius is required on the pivot edge as only a 3mm gap is permitted between the door and frame
• For 54mm thick Fire doors an R20 radius is required on the pivot edge as only a 3.5mm gap is permitted between the door and frame

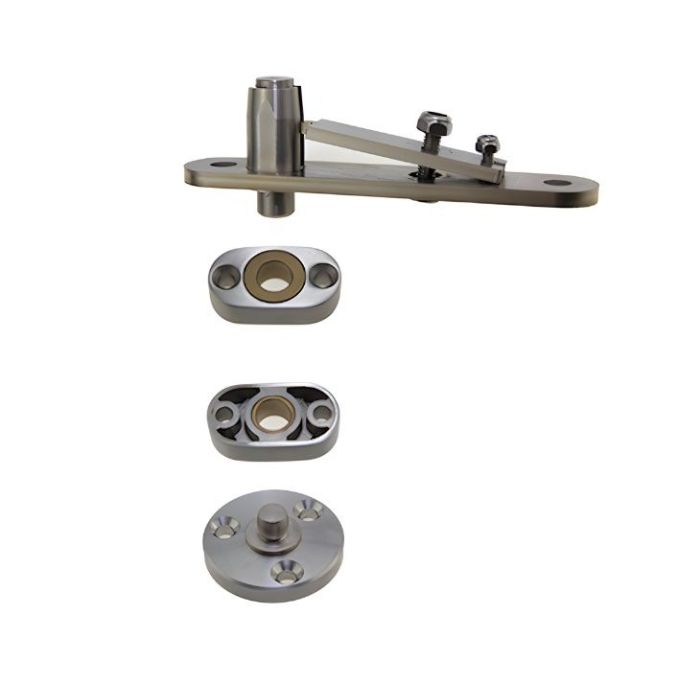

Parts supplied:

• 2 x Door plates
• 1 x Top frame bracket
• 1 x Bottom floor pivot bracket - 30mm dia.
• 6 x 1-1/4" x No. 10 Woodscrews
• 3 x 1-1/4" x No. 12 Woodscrews
• 1 x Allen Key for top frame bracket adjustment
• Installation Instructions

Warranty:

• 25-year manufacturer warranty

Recommended accessories:

• Emergency release door stop - prevents pivot swing except in cases of emergency
• Brush strips - it is recommended that both lock and hinge stiles are brush stripped for privacy
• 80kg Pivot Bracket Product Code: H131-402
• Adjustable version Product Code: H131-451
