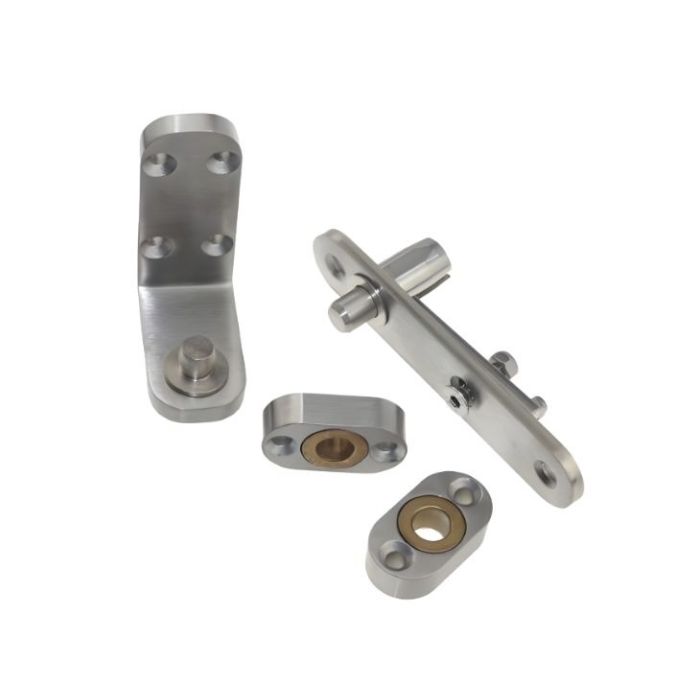

Royde & Tucker Double Action Pivot Door Set, 80kg Frame Mounted - Satin SS

H131-400 - Medium duty Pivot door hinge set. Satin Stainless steel. British made. Includes door bottom frame mounted pivot, top centre door bracket. Allows 80kg x 1100mm doors to swing in either direction. Suitable for single and double FD30 and FD60 fire doors.

This pivot hinge set from Royde & Tucker allows doors to swing in either direction.

Constructed from stainless steel, British made to ensure quality.

Key benefits:

  • Allows doors to swing in either direction
  • Door plates radii R12.5 for easier preparation
  • Bottom bracket is frame mounted
  • Top and bottom plates have HI-LOAD maintenance free oil impregnated bronze bearings
  • Includes door bottom pivot, top centre door brackets and M5 x 30mm screws
  • Suitable for FD30 and FD60 doors, to BS 476 for both single and double door applications
  • Maintenance free - 25 year manufacturer guarantee
  • Grade 304 - Satin Stainless steel

Technical details:

  • Minimum door thickness 44mm
  • To suit internal doors up to 80kg - when floor mounted
  • Maximum door width 1100mm - when jamb mounted
  • For 44mm non-Fire Rated doors an R9 radius is required on the pivot edge with a 4mm door and frame gap
  • For 44mm thick Fire doors an R15 radius is required on the pivot edge as only a 3mm gap is permitted between the door and frame
  • For 54mm thick Fire doors an R20 radius is required on the pivot edge as only a 3.5mm gap is permitted between the door and frame

Parts supplied:

  • 2 x Door plates
  • 1 x Top frame bracket
  • 1 x Bottom frame pivot bracket
  • 10 x 1-1/4" x No. 10 Woodscrews
  • 1 x Allen Key for adjustable frame bracket
  • Installation Instructions

Warranty:

  • 25-year manufacturer warranty

Also available separately:

  • Emergency release door stop - prevents pivot swing except in cases of emergency
  • Brush strips - it is recommended that both lock and hinge stiles are brush stripped for privacy
  • Floor Mounted versions available see Product Code: H131-401 - 120kg doors and Product Code: H131-402 - 80kg doors
  • Adjustable version available see Product Code: H131-450
Technical Information
Manufacturer Royde & Tucker
Max. Load (kg) 80
Suitable For FD30 / FD60 Fire Doors Yes
Stock status Available to order
Delivery time1-2 weeks
Returns Status Returnable in 14 days
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
H131-400 - Medium duty Pivot door hinge set. Satin Stainless steel. British made. Includes door bottom frame mounted pivot, top centre door bracket. Allows 80kg x 1100mm doors to swing in either direction. Suitable for single and double FD30 and FD60 fire doors.
In stock
£102.32 £85.27
Product Code: H131-400
Availability Available to order (Info)
Expected delivery 1-2 weeks
VAT Exemption is not available on this product (Info)
Download PDF Download PDF
