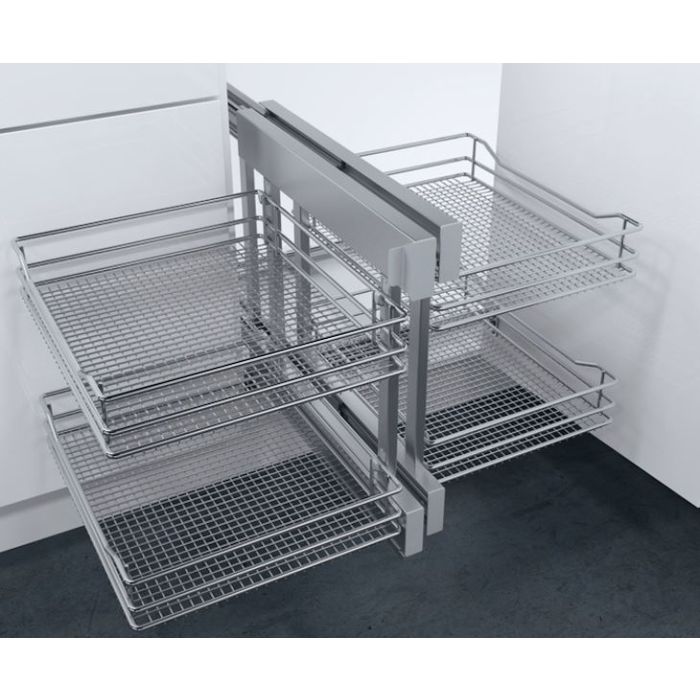

Vauth-Sagel VS COR Flex - Pull Out Corner Unit, Saphir Chrome Mesh Baskets, for 900-1000 mm CAB - Unhanded
Vauth-Sagel VS COR Flex corner pull-out storage unit with 4x Saphir chrome mesh baskets. This frame only allows desired movement, preventing accidental closing of trays and potential damage to surrounding cabinets. The unit is suitable for left or right-handed 900 and 1000 mm wide base cabinets with minimum door widths of 381-450 or 444-500 mm. Integral self and soft closing for easy quiet operation. Installed height: 530 mm. Built-in depth: 480 to 515 mm. Max. 8kg per basket, 32kg total. 10-year Warranty.
The VS COR Flex by Vauth-Sagel is a fantastic addition to any kitchen, its clever design allows all four Saphir chrome mesh baskets to fully exit the cupboard. This corner storage system with full extension really maximizes the use of corner space and provides easy access to stored items.
This unit is unhanded for easy retro fitting into existing 900 or 1000 mm corner base cabinets with a minimum door widths of 381-450 or 444-500 mm door widths.
The Saphir chrome mesh baskets have a maximum payload capacity of 8kg per basket.
Suitable for 900 and 1000 mm wide left-handed or right-handed corner base units, the set contains all the components needed for an easy installation, select the size required.
This system is unhanded
Featuring Lock-system: This frame only allows desired movement, preventing accidental closing of trays and potential damage to surrounding cabinets.
Technical details:
- For cabinet width (mm): 900
- - Min. inside cabinet width (mm): 693
- - Min. door opening (mm): 381
- For cabinet width (mm): 1000
- - Min. inside cabinet width (mm): 802
- - Min. door opening (mm): 444
- For internal cabinet height (mm): 530
- Minimum installation depth:
- - 480 mm for cabinet constructions with post
- - 515 mm for blind side cabinet constructions
- Clearance between rear of front baskets and cabinet door when unit is fully extended (mm): 40
- 4x Saphir chrome mesh baskets
- Max. per basket (kg): 8
- Max. system payload capacity (kg): 32
- Unhanded
- Integral self and soft closing for easy and quiet operation
Set includes:
- Hanging frames and base mounting track; silver epoxy coated tubular steel
- Front and back frames; silver epoxy coated tubular steel
- 4x Saphir chrome mesh baskets
- Fitting instructions
- Fixing screws
Warranty information:
- Vauth-Sagel’s products are of excellent quality and workmanship and are extensively tested
- Vauth-Sagel has hence set out to guarantee their products are free from construction, material and manufacturing defects for up to 10 years from the purchase of the items
- Download the PDF warranty for more information
Please note:
- Cabinet and door front are not included
| Manufacturer | Vauth-Sagel |
|---|---|
| Pull Out Model | VS COR Flex |
| Installed Height Range | 530 |
| Cabinet Width (mm) | 900, 1000 |
| Cabinet Door Width (mm) | Min. 381 - 450, Min. 444 - 500 |
| Handing | Unhanded |
| Built-in Depth (mm) | 480, 515 |
| Basket Style | Saphir Mesh Chrome Wire |
| Shelving / Basket / Tray - Material | Saphir Mesh Chrome Wire |
| Soft Close | Yes |
| Door Style | Hinged Door Cabinets |
| Opening Style | Baskets Pull Out Together |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
