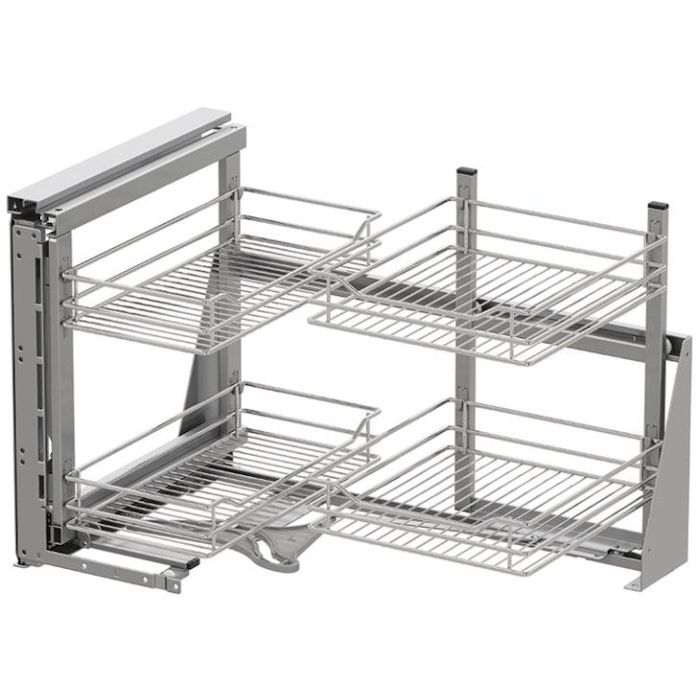

Vauth-Sagel VS COR Fold - Swing Out Corner Storage, Classic Silver Linear Wire Baskets, 800-1000 mm CAB - Left
Vauth-Sagel VS COR Fold swing out storage with 4x Classic silver linear wire baskets. For 800 or 900 - 1000 mm wide corner base units. Left-handed, 400 or 450 - 600 mm door widths. Automatic pull-out action. Soft close. Installed height: 530mm. Built-in depth: 485mm. Max. 8kg per front basket, rear baskets 9.5kg each.
This is a clever storage system with 4x Classic silver linear wire baskets. The rear baskets automatically follow the front baskets when the door is opened and pulled away from the cabinet.
When opening the cabinet door, the front baskets automatically swing away leaving free access to the back basket, making all baskets easily accessible when the unit is fully opened.
The integrated damping ensures quiet, smooth closing of the pull out, thanks to the integrated shock absorption and self closure.
The door front fixing has an integrated 3D adjustment and central height alignment allowing the swing out corner storage unit to be fitted perfectly.
The baskets are individually height-adjustable, each basket has a payload maximum capacity of 8kg per front basket and 9.5kg for each rear basket.
Suitable for 800 or 900 - 1000 mm wide left handed corner base units, the set contains all the components needed for easy installation.
This is the left handed configuration of the unit, please check your handing prior to ordering.
Technical details:
- For cabinet / door width (mm): 800 / 400
- For cabinet / door width (mm): 900 - 1000 / 450 - 600
- Installed height (mm): 530
- Built-in depth (mm): 485
- 4x Classic silver linear wire baskets
- Payload capacity: Max. 8kg per front basket, rear baskets 9.5kg each
- System payload capacity (kg): Max. 35
- Left-handed
- Automatic pull-out action with soft close
Set includes:
- Rear hanging frame and base mounting track - silver epoxy coated tubular steel
- Door frame with pivot - silver epoxy coated tubular steel
- Back frame - silver epoxy coated tubular steel
- Door frame follower - fibre glass improved plastic
- Door panel hanging plates - silver coloured steel, 3 way adjustable
- 2x Storage baskets (rear) - Classic silver linear wire
- 2x Storage baskets (door) - Classic silver linear wire
- Fitting instructions
- Fixing screws
Warranty information:
- Vauth-Sagel’s products are of excellent quality and workmanship and are extensively tested
- Vauth-Sagel has hence set out to guarantee their products are free from construction, material and manufacturing defects for up to 10 years from the purchase of the items
- Download the PDF warranty for more information
Please note:
- Cabinet and door front are not included
| Manufacturer | Vauth-Sagel |
|---|---|
| Pull Out Model | VS COR Fold |
| Installed Height Range | 530 |
| Cabinet Width (mm) | 800, 900, 1000 |
| Cabinet Door Width (mm) | 400, 450, 500, 600 |
| Handing | Left |
| Built-in Depth (mm) | 485 |
| Basket Style | Classic Silver Linear Wire |
| Shelving / Basket / Tray - Material | Classic Silver Linear Wire |
| Soft Close | Yes |
| Door Style | Door Front Fixing |
| Opening Style | Shelves Pull Out Together |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
