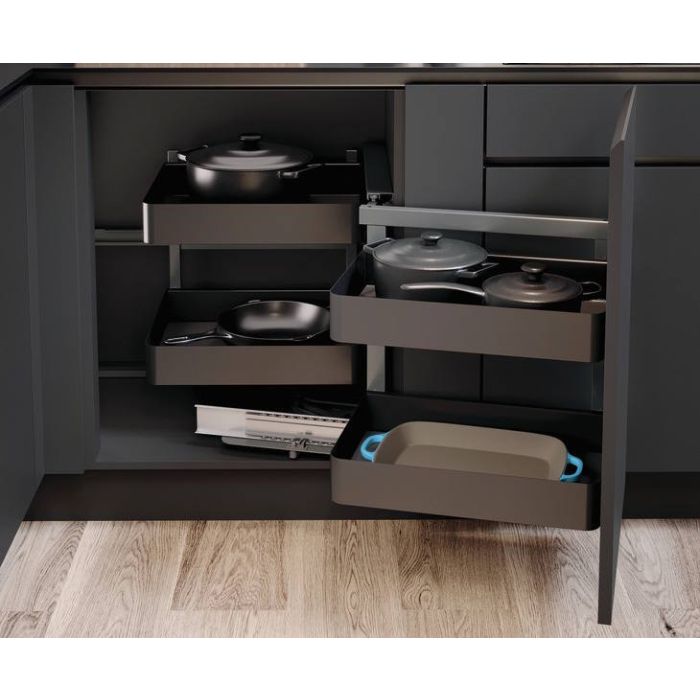

Vauth-Sagel VS COR Fold - Swing Out Corner Storage, Planero Lava Grey Baskets, 800-1000 mm CAB - Right
Vauth-Sagel VS COR Fold swing out storage with 4x Planero Lava Grey Baskets. For 800 or 900 - 1000 mm wide corner base units. Right-handed, 400 or 450 - 600 mm door widths. Automatic pull-out action. Soft close. Installed height: 530 mm. Built-in depth: 485 mm. Max. 8kg per front basket, rear baskets 9.5kg each. 10-year warranty guarantee.
This is a clever storage system with 4x Planero Lava Grey Baskets. The rear baskets automatically follow the front baskets when the door is opened and pulled away from the cabinet.
When opening the cabinet door, the front baskets automatically swing away leaving free access to the back basket, making all baskets easily accessible when the unit is fully opened.
The integrated damping ensures quiet, smooth closing of the pull out, thanks to the integrated shock absorption and self closure.
The door front fixing has an integrated 3D adjustment and central height alignment allowing the swing out corner storage unit to be fitted perfectly.
The baskets are individually height-adjustable, each basket has a payload maximum capacity of 8kg per front basket and 9.5kg for each rear basket.
Suitable for 800 or 900 - 1000 mm wide right handed corner base units, the set contains all the components needed for easy installation.
This is the right handed configuration of the unit, please check your handing prior to ordering.
Technical details:
- For cabinet / door width (mm): 800 / 400
- For cabinet / door width (mm): 900 - 1000 / 450 - 600
- Installed height (mm): 530
- Built-in depth (mm): 485
- 4x Planero lava grey baskets
- Payload capacity: Max. 8kg per front basket, rear baskets 9.5kg each
- System payload capacity Max. (kg): 35
- Right-handed
- Automatic pull-out action with soft close
Set includes:
- Rear hanging frame and base mounting track - Lava grey epoxy coated tubular steel
- Door frame with pivot - Lava grey epoxy coated tubular steel
- Back frame - Lava grey epoxy coated tubular steel
- Door frame follower - fibre glass improved plastic
- Door panel hanging plates - Lava grey coloured steel, 3 way adjustable, to suit door width
- 2x Storage baskets (rear) - Planero Lava Grey
- 2x Storage baskets (door) - Planero Lava Grey
- Fitting instructions
- Fixing screws
Warranty information:
- Vauth-Sagel’s products are of excellent quality and workmanship and are extensively tested
- Vauth-Sagel has hence set out to guarantee their products are free from construction, material and manufacturing defects for up to 10 years from the purchase of the items
- Download the PDF warranty for more information
Please note:
- Cabinet and door front are not included
| Manufacturer | Vauth-Sagel |
|---|---|
| Pull Out Model | VS COR Fold |
| Installed Height Range | 530 |
| Cabinet Width (mm) | 800, 900, 1000 |
| Cabinet Door Width (mm) | 400, 450, 500, 600 |
| Handing | Right |
| Built-in Depth (mm) | 485 |
| Basket Style | Planero Lava Grey |
| Shelving / Basket / Tray - Material | Lava Grey Metal Base & Sides |
| Soft Close | Yes |
| Door Style | Door Front Fixing |
| Opening Style | Shelves Pull Out Together |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
