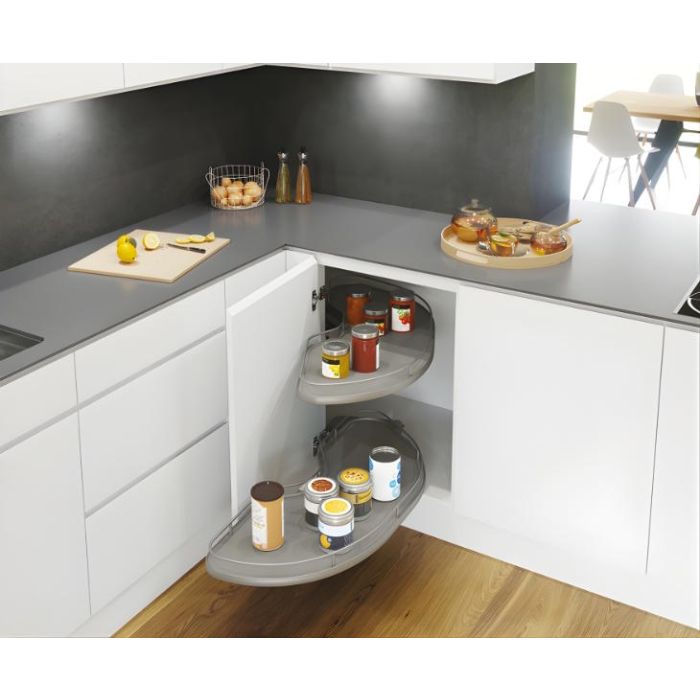

Vauth-Sagel VS Cornerstone Maxx Pull Out Shelving Unit, Grey Base, Silver Rails, 800-1000mm CAB - RH
Vauth-Sagel VS Cornerstone Maxx Pull-out storage unit with twin independent power assisted movement pull-out shelves. Suitable for 800, 900 and 1000 mm wide kitchen base units with 400, 450, 500 and 600 mm doors and 650 to 850 mm internal height. Two shelves with grey bases and silver rails, the integrated Soft and Self-Closing damping mechanism provides a soft-close action.
The Cornerstone Maxx Pull out Shelving Unit by Vauth-Sagel is a pull-out corner storage unit, the shelves can be moved in and out independently and do not obstruct the adjacent cabinet, with the (PAM) Power Assisted Movement in pull-out direction.
The floating shelves, feature hidden fastenings making the Cornerstone Maxx a stylish and modern storage system.
Suitable for 800, 900 and 1000 mm wide kitchen base units with 400, 450, 500 and 600 mm doors, the system is ideal of retro-fitting into existing left corner base units, with a 650 to 850 mm internal height.
With a maximum load of 50kg (evenly distributed, 25kg per shelf), the shelves have a grey base with silver rails.
Integrated Soft and Self-Closing damping mechanism provides a soft-close action of the unit.
This is the right hand version of the unit, please check your handing prior to ordering.
Set includes:
- 2x Shelves, with grey bases and silver rails
- 1x Pull-out and pivoting mechanism
- Fixing screws and fitting instructions
Technical details:
- Right hand cabinet - see handing plan in images
- Single fixing point on cabinet centre post
- Easy Fit: Tool-free assembly of shelf elements on the support arms
- 800 mm cabinet width / 400 mm door width
- 900 mm cabinet width / 450 mm door width
- 1000 mm cabinet width / 500 mm door width
- 1000 mm cabinet width / 600 mm door width
- Built-in depth (mm): 490
- Installation height min/max. (mm): 650 - 850
- Carrying capacity (kg): 25 per shelf, evenly distributed
- Wood shelves with a grey finish and silver rails
- Right-handed
Warranty information:
- Vauth-Sagel’s products are of excellent quality and workmanship and are extensively tested
- Vauth-Sagel has hence set out to guarantee their products are free from construction, material and manufacturing defects for up to 10 years from the purchase of the items
- Download the PDF warranty for more information
| Manufacturer | Vauth-Sagel |
|---|---|
| Pull Out Model | VS Cornerstone Maxx |
| Installed Height Range | 650 - 850 |
| Cabinet Width (mm) | 800, 900, 1000 |
| Cabinet Door Width (mm) | 400, 450, 500, 600 |
| Handing | Right |
| Built-in Depth (mm) | 490 |
| Basket Style | Grey Base/Silver Rails |
| Shelving / Basket / Tray - Material | Grey Solid Base & Silver Rails |
| Soft Close | Yes |
| Door Style | Hinged Door Cabinets |
| Opening Style | Shelves Pull Out Individually |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 4pm |
| Returns Status | Returnable in 14 days |
