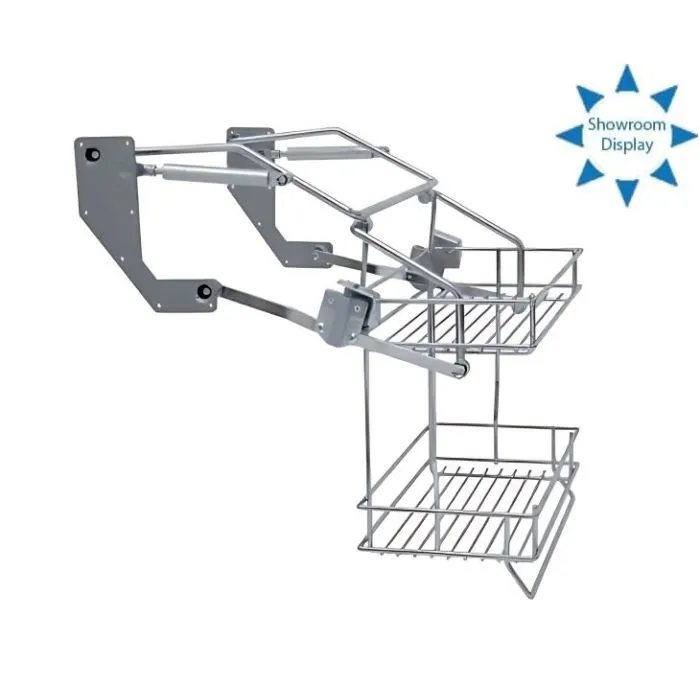

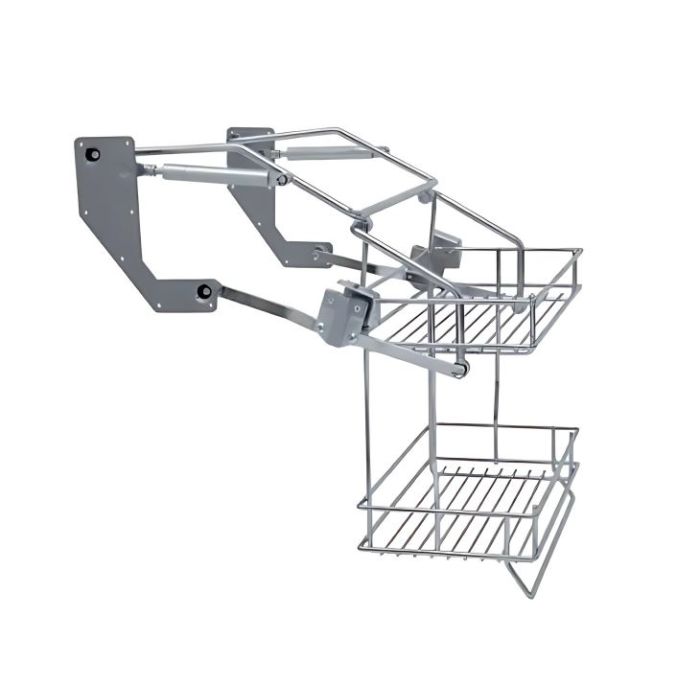

Vibo Pull Down Two Tier Wire Shelves - 500mm Width Wall Units

Vibo downward folding wire shelving for 500mm wide kitchen wall cabinets.

Enables easy access to wall cabinet contents for seated or wheelchair users, children, and those with a limited reach range.

A two tier system, the pull down handle and gas spring operation assists the user in lowering and raising the baskets.

Key benefits:

• Pull-down storage baskets for kitchen cabinets
• Two tiers of wire shelving
• Pull down handle to underside of bottom tier
• Gas Spring operated
• Chrome-plated steel
• Improved design, for easier installation

Technical details:

• For wall cabinet width (mm): 500
• Installation width (mm): 464
• Height of installation in cupboard (mm): 484
• Minimum clear internal cabinet depth required (mm): 240
• Wire basket depth (mm): 231
• Internal height of bottom basket to underside of upper basket (mm): 240
• Shelf drop down height / minimum height required from worktop (mm): 420
• Maximum load per basket (kg): 3

Please note:

• Some physical effort is required to pull down these baskets, particularly when the baskets are empty
• Approximate pull force required to lower empty baskets: 7.7kg (17lb)
• For cabinets with a door, we recommend the fitting of 110° hinges (not included) to allow unobstructive movement of the mechanism
• Important: The drilling pattern supplied with product must be used - failure to do so may cause fitting issues

Former Product Code:

• Product Code: 4G40180

Warranty:

• 1-year warranty
