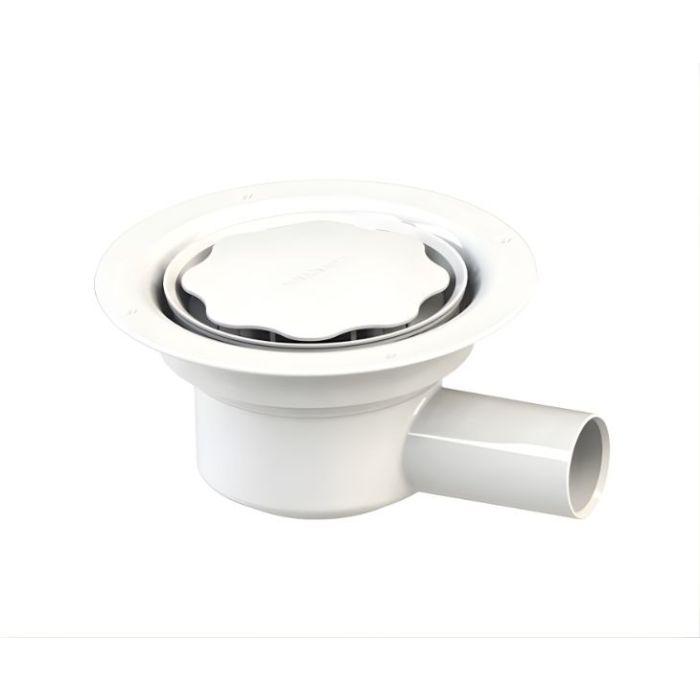

AKW / Contour CTW01 Gravity Shower Trap, Floor Formers - Vinyl Flooring
AKW / Contour CTW01, 2-part waste for floor formers, clamping ring for vinyl sheet safety flooring. Easy cleaning with removable inner cup, white ABS. 50mm water seal. Overall diameter 200mm with a depth of 100mm. Flow rate in excess of 26 litres per minute.
The AKW / Contour CTW01 shower trap is a 2 part, 50mm water seal trapped waste for use with a floor former and sheet flooring.
Key benefits:
- Bolts together for easy installation
- Supplied with clamping ring for use with sheet vinyl flooring
- Removable inner cup for easier cleaning
- Flow rate in excess of 26 litres per minute
- Manufactured in white ABS - will withstand wheelchair loadings
- Tested in accordance with EN274-2:2002
- Includes fixing screws
Technical details:
- 1½" outlet
- 100mm depth
- Overall diameter: 200mm
| Manufacturer | AKW / Contour |
|---|---|
| Configuration | Gravity Waste |
| Compatible Tray or Former | AKW - Tuff Form, AKW - Tuff Form8, AKW / Contour - ShowerDec, Maxxus |
| Installation | Floor Formers |
| Application | Floor Former |
| Waste Diameter (mm) | 200 |
| Waste Outlet / Depth (mm) | Horizontal |
| Flow Rate / l/min | 26 |
| Floor Finish | Vinyl Sheet Flooring |
| Grate Material / Finish | Plastic / White |
| Stock status | Available to order |
|---|---|
| Delivery time | Out of Stock - Expected Mid June 2026 |
| Returns Status | Returnable in 14 days |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
AKW / Contour CTW01, 2-part waste for floor formers, clamping ring for vinyl sheet safety flooring. Easy cleaning with removable inner cup, white ABS. 50mm water seal. Overall diameter 200mm with a depth of 100mm. Flow rate in excess of 26 litres per minute.
In stock
£41.53
£34.61
Product Code:
08CTW01
RRP Inc. VAT: £103.22 Save 60%
Available to order (Info)
Out of Stock - Expected Mid June 2026 VAT Exemption is available on this product - deducted at Checkout (Info)
