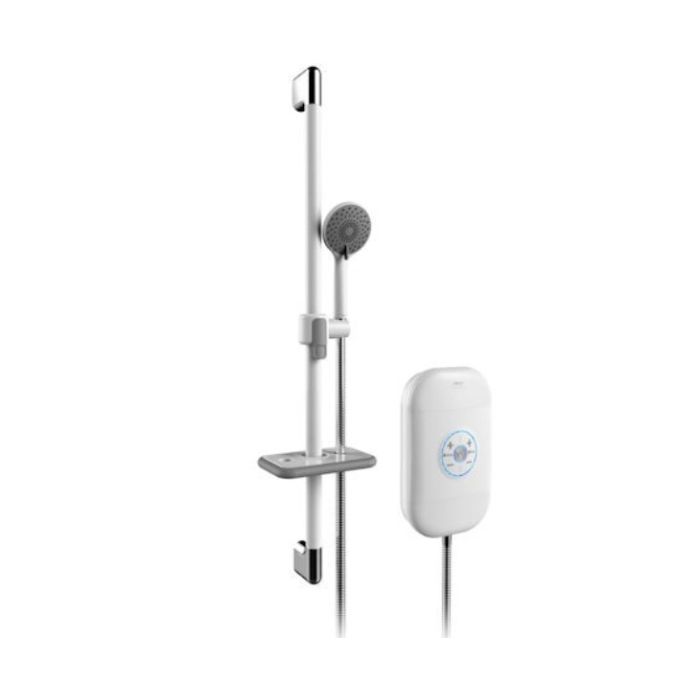

AKW SmartCare Plus White 9.5kW with Silver/White Kit

The AKW SmartCare Plus 9.5kW is a thoughtfully engineered electric shower, designed to support both independent and assisted showering. It combines a wide range of user-focused features, including app control (Android or iPhone), alongside simple on-unit operation via raised tactile “+” and “–” buttons to adjust flow rate and temperature directly from the shower body.

The shower has also been designed to assist the installer with simple but thoughtful features such as 6 different electric and water entry points, dual power blocks for right or left-hand wiring and a footprint that covers most manufacturer models; this reduces the chances of having to re-tile if retrofitting.

For added reassurance when showering, the included 1000mm riser bar has a 150kg maximum load allowing it to double as a grab bar if needed.

Key benefits:

• Quick and easy to install
• Easy push button controls
• Electronic thermostatic Temperature and Flow Control
• Audible and tactical controls for temperature and flow to assisted users with visual impairments
• Audible indicators when the desired temperature and flow is reached
• Anti-glare matte finish panel
• Rounded surfaces for added safety if the user falls in the shower
• 1000mm riser rail in a choice of White/Silver
• The 1000mm riser rail has a maximum load of 150kg so can be used as a grab bar
• 2m anti-kink smooth hose
• Includes a 3 mode shower head
• Optional eco-setting limiting flow rate to 6 litres per minute
• Soap Dish

Choice of control:

• Raised tactile flow and temperature controls on the body of the shower
• Led lights display the temperature and the flow rate
• iShower app for Android and iPhone

Technical details:

• Hose length (mm): 2000
• Riser rail (mm): 1000
• Height (mm): 388
• Width (mm): 240
• Depth (mm): 82
• Footprint height (mm): 365
• Footprint width (mm): 218
• Riser colour: White/Silver
• Output (kW): 9.5
• Supply rating: 35/40 amp
• Residual Current device: 30mA (must be fitted)
• Isolation Switch: 50 Amp double pole with 3mm contact separation
• Terminal block connections: Max. 10mm²
• 6 cable entry points: top, bottom or back
• Supply: Mains pressure cold water feed
• 6 water entry points: top, bottom or back
• Inlet connections: 15mm compression
• Outlet connection: ½" BSP male
• Min. dynamic pressure: 0.5 - 1 bar
• Max. static pressure: 10 bar
• inlet temperature range: 3 - 28°C
• Water ingress rating: IPX4

Approvals:

• WRAS Approved
• BEAB Care Approved
• BEAB Approved
• RNIB Approved Gold awarded

Manufacturer warranty:

• 5 year manufacture warranty
