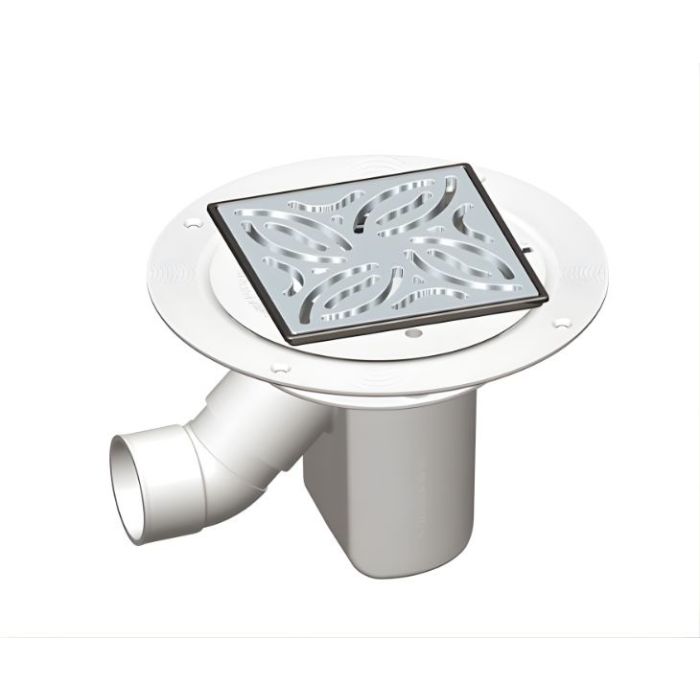

AKW Stainless Steel TF75 Gravity Waste - Tiled Floors
Stainless steel grate with the TF75 Gravity waste trap for AKW Tuff Form floor formers, for tiled flooring with 120x120mm stainless steel grate. Requires 125mm depth below tray. Easy to clean and rodding. Grate height can be adjusted by a maximum of 25mm in height with adhesive for different thickness of floor tiles.
This AKW gulley has been specifically designed for use the AKW Tuff Form wet room floor formers and for any screeded floor installation in a breachable floor.
Key benefits:
- Designed for Tuff Form wet floor formers when tiling
- Also for screeded floor installations in a breachable floor
- Water trap depth (seal): 75mm - Provides backflow prevention
- Overall diameter: 200mm
- Overall depth: 132mm
- Requires 125mm depth below tray
- Horizontal and adjustable elbow for waste exit pipe for ease of installation
- Adjustable elbow for waste pipe exit
- Supplied with stainless steel grate - 120x120mm, Provides an easy fitting for ceramic tiles
- Grate height can be adjusted by a maximum of 25mm in height with adhesive for different thickness floor tiles
Warranty:
- Lifetime Warranty (please refer to AKW's terms and conditions)
| Manufacturer | AKW / Contour |
|---|---|
| Configuration | Gravity Waste |
| Compatible Tray or Former | AKW - Tuff Form, AKW - Tuff Form8 |
| Installation | Floor Formers, Concrete / Screed Floors |
| Application | Floor Former, Screed Floors |
| Waste Diameter (mm) | 200 |
| Waste Outlet / Depth (mm) | Horizontal or Vertical |
| Flow Rate / l/min | 36 |
| Floor Finish | Tiled Flooring |
| Grate Material / Finish | Stainless Steel / Slotted |
| Stock status | In stock |
|---|---|
| Delivery time | Next working day if ordered by 1.30pm |
| Returns Status | Returnable in 14 days |
