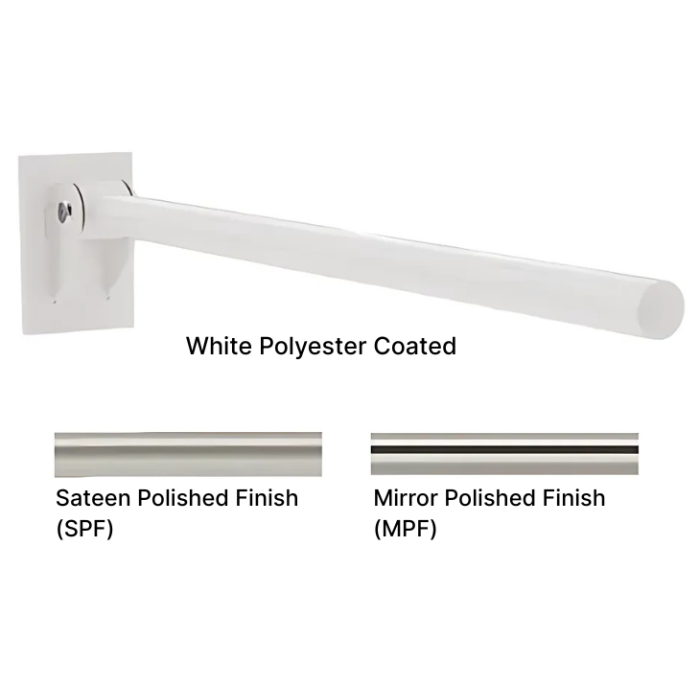

AWS 800mm SS Single Support Rail, Friction Hinged, Concealed Fixings - Choice of Finish

AWS Regent drop down 800mm support rail, with a friction hinge, 35mm dia. strong tubular construction and concealed wall fixings. Choice of Mirror (MPF) or Sateen (SPF) polished finishes and White polyester coated (for a warmer touch) 304 grade stainless steel for wet and damp areas. Easy to install, the cover plate conceals the fixings giving it a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.

The AWS Regent stainless steel 800mm folding support arm with a friction hinge, concealed fixings cover for a sleek and stylish appearance.

Designed for use alongside WCs for extra support, and for use in shower areas where there is a requirement for a well-designed substantial rail for the safety of all users.

Suitable for use with toilet pans projecting 700 to 750mm from the wall.

Available in a choice of Mirror, Sateen polished finishes and White polyester coated for a warmer touch.

Constructed from high quality materials, the 35mm diameter gives the rail increased strength and stability.

Key benefits:

  • 304 grade stainless steel drop down support arm
  • Ideal for use in wet or damp areas
  • Easy to use friction action hinge
  • Stainless steel backplate for strength and durability
  • Backplate bolt holes pre-drilled for M8 bolts (fixings not included)
  • Finished stainless steel cover plate to conceal the wall fixings
  • Made in Britain
  • Doc M compliant
  • Choice of Mirror (MPF) or Sateen (SPF) polished finishes and White polyester coated for a warmer touch
  • Matching AWS Regent grabrails and accessories also available

Technical details:

  • Length (mm): 800
  • Diameter (mm): 35
  • Strong tubular construction
  • Concealed cover for fixings
  • Tested to 120kg in vertical and 45 degree positions (this does not include wall fixings)

Warranty:

  • 10 year manufacturer warranty

Please note:

  • Fixings not included - the installer should select the correct fixing based on wall type
Technical Information
Manufacturer AWS
Length (mm) 800
WC Projection (mm) 700, 750
Surface Finish Polyester Coated "Not Cool to Touch", Mirror Polished (MPF), Sateen Polished (SPF), Smooth
Type Hinged Arm Support
Material Stainless Steel - Grade 304
Mounting Wall
Arm Control Friction Hinge
Fixings Concealed
Adjustable Fixed Height (No Adjustment)
Stock status Made to order
Delivery time7-10 working days
Returns Status Returnable in 14 days
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code: AWS-0141
Availability Made to order (Info)
Expected delivery 7-10 working days
VAT Exemption is available on this product - deducted at Checkout (Info)
AWS Regent drop down 800mm support rail, with a friction hinge, 35mm dia. strong tubular construction and concealed wall fixings. Choice of Mirror (MPF) or Sateen (SPF) polished finishes and White polyester coated (for a warmer touch) 304 grade stainless steel for wet and damp areas. Easy to install, the cover plate conceals the fixings giving it a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.
