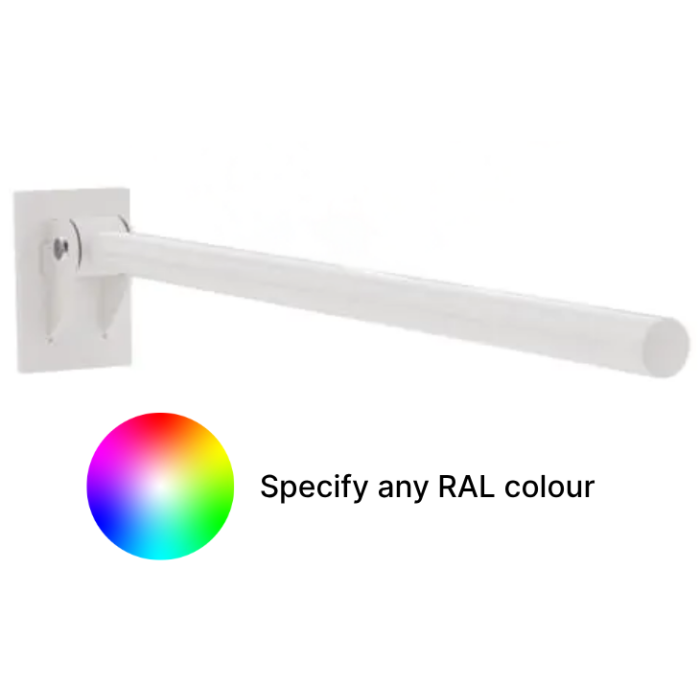

AWS 800mm Support Arm, Concealed Fixings - Specify Your RAL Colour
AWS Regent drop down 800mm support rail, friction hinge action, 35mm dia. strong tubular construction. Powder coated polyester finish to your specified RAL colour, 304 grade stainless steel for wet and damp areas. Easy to install, the cover plate hides the fixings giving it a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.
The AWS Regent stainless steel 800mm folding support arm with a friction hinge, concealed fixing cover for a sleek and stylish appearance.
Designed for use alongside WCs for extra support, and for use in shower areas where there is a requirement for a well designed substantial rail for the safety of all users.
Suitable for use with toilet pans projecting 700 to 750mm from the wall.
Powder coated polyester finish to your specified RAL colour.
Constructed from high quality materials, the 35mm diameter gives the rail increased strength and stability.
Key benefits:
- 304 grade stainless steel drop down support arm
- Ideal for use in wet or damp areas
- Easy to use friction action
- Stainless steel backplate for strength and durability
- Backplate bolt holes pre-drilled for M8 bolts (fixings not included)
- Stainless steel cover plate to conceal the wall fixings
- Made in Britain
- Doc M compliant
- Powder coated polyester finish to your specified RAL colour
- Matching AWS Regent grabrails and accessories also available
Technical details:
- Length (mm): 800
- Diameter (mm): 35
- Strong tubular construction
- Concealed cover for fixings
- Tested to 120kg in vertical and 45 degree positions (this does not include wall fixings)
Warranty:
- 10 year manufacturer warranty
Please note:
- This is custom made to your RAL colour finish and is non-returnable
- Fixings not included - the installer should select the correct fixing based on wall type
| Manufacturer | AWS |
|---|---|
| Length (mm) | 800 |
| WC Projection (mm) | 700, 750 |
| Colour | Specify your RAL Colour |
| Surface Finish | Smooth, Custom RAL Colour |
| Type | Hinged Arm Support |
| Material | Stainless Steel - Grade 304 |
| Mounting | Wall |
| Arm Control | Friction Hinge |
| Fixings | Concealed |
| Adjustable | Fixed Height (No Adjustment) |
| Stock status | Made to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Custom Made, non-returnable |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code:
AWS-0140-RAL
RRP Inc. VAT: £352.80 Save 23%
Made to order (Info)
7-10 working days VAT Exemption is available on this product - deducted at Checkout (Info)
AWS Regent drop down 800mm support rail, friction hinge action, 35mm dia. strong tubular construction. Powder coated polyester finish to your specified RAL colour, 304 grade stainless steel for wet and damp areas. Easy to install, the cover plate hides the fixings giving it a sleek and stylish appearance. For toilet pans projecting 700 to 750mm from the wall. Max. load 120kg. Doc M compliant.
