1400 × 700mm
The more compact trolley for spaces where the shorter platform is appropriate for the intended user and transfer routine.
Granberg Electrically Height-Adjustable Shower Trolley 346
Granberg Care & Nursing

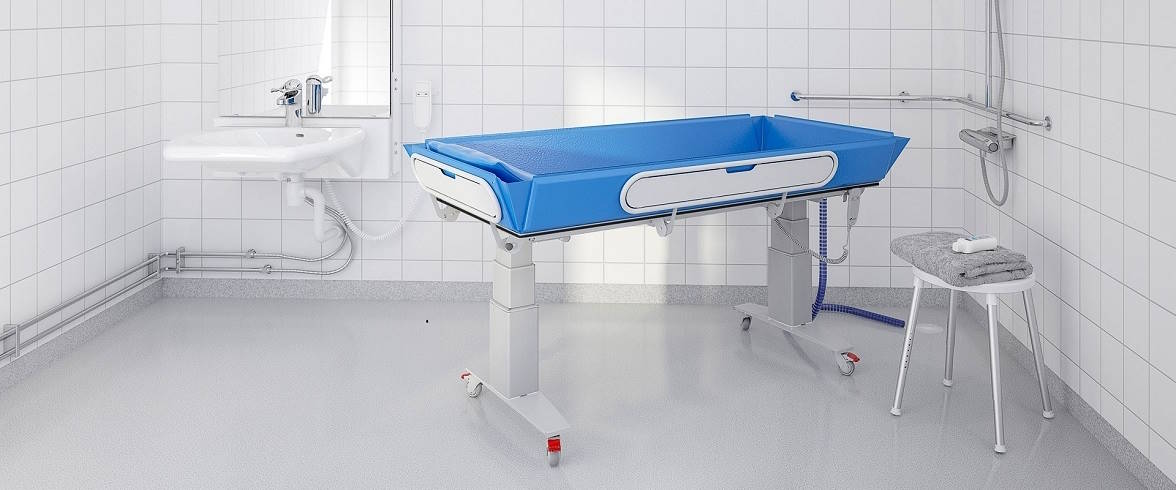

Granberg 346 Height Adjustable Shower Trolley
A mobile electric shower and changing trolley with rechargeable battery operation, integrated drainage, four folding gates and a 200kg user capacity.
1400 or 1800mm590–990mm200kg user capacity1200mm drainage hose
Mobile showering with adjustable working heightChanging and showering on one mobile platform
A shower trolley designed around assisted washing, drainage and transfers
The 346 takes the mobile, powered format of Granberg's care range and adapts it specifically for showering. The compact-laminate platform, shower mattress and flexible drainage connection are designed to work together as one washing system.
Electric adjustment provides a 400mm working-height range, while lockable castors allow the trolley to be repositioned when required. Rechargeable battery operation means continuous mains connection is not needed during normal use.
The underside is kept open for mobile patient-lift access, supporting transfer routines where a hoist is required.
Choose the trolley length
The showering system stays the same; the usable length changes
Both 346 sizes retain the same 700mm depth, four-gate protection, powered movement, battery arrangement and drainage concept.
1800 × 700mm
The longer platform provides additional usable length while retaining the same core showering, drainage and mobility features.
Designed specifically for wet care
Shower mattress, drainage and mobility are built into the trolley
The 346 uses a 12mm white compact-laminate platform beneath an all-welded shower mattress, with a 200mm border around the washing area.
A 1200mm flexible drainage hose with a 46mm outside diameter connects the trolley to a suitable drain, so drainage location must be considered as part of the room plan.
4 folding gatesSide and end protection is included around the showering surface.
1200mm drainage hoseFlexible connection allows the trolley to drain while remaining mobile within the planned working zone.
Rechargeable batteryPowered height adjustment without continuous mains connection during normal use.
Showering, transfer and hygiene
The 346 has to work as both a trolley and a wet-care surface
Its specification combines the movement of a mobile nursing trolley with the materials and drainage requirements of assisted showering.
Clearance for mobile patient lifts
Open space beneath the trolley helps a mobile hoist approach the user during assisted transfer routines.
590–990mm electric range
The 400mm powered adjustment allows carers to set a more suitable working height before or during care.
IPX6 protected system
The current Granberg specification lists IPX6 protection for the trolley system and a sealed, all-welded mattress.
Plan the wet room around movement
Drainage and circulation need to work together
Check the route from transfer position to showering position, the reach of the drainage hose, clear space for folded gates and the location used for charging or parking the trolley.
Compatible 346 accessories
Keep comfort and replacement items simple
The 346 accessory list is intentionally focused around the showering surface itself.
Care pillow
Granberg offers a pillow shared with the 345 nursing bench for additional support during care.
All-welded shower mattress
Replacement mattresses are available in the corresponding 1400 and 1800mm trolley lengths.
Compare the Granberg care range
343, 345 or 346?
All three use electric height adjustment, but they solve different care routines: integrated bathing, dry changing and nursing, or mobile showering.
Changing + bathing
Freestanding 1400mm Corian changing table with integrated bathtub, 750–1150mm powered height range and 50kg user capacity.
Explore 343 →Mobile nursing bench
1400 or 1800mm mobile nursing bench with mattress, battery operation, folding gates and clearance for a mobile patient lift.
Explore 345 →Mobile shower trolley
1400 or 1800mm shower trolley with drainage, shower mattress, four folding gates and rechargeable battery operation.
Current range →Made by Granberg
Care and nursing equipment built around working height, access and hygiene
Granberg has developed ergonomic equipment for schools, healthcare and nursing environments since the 1960s. The Care range extends that approach to changing, nursing and showering, combining powered working-height adjustment with robust materials and practical access for carers and transfer equipment.
Explore Granberg →Care equipment specification support
Planning a showering space around the 346?
Send us the required trolley length, transfer method, shower-area dimensions and drainage position. We can help coordinate the 346 with circulation space, water management and the wider assisted-care layout.
