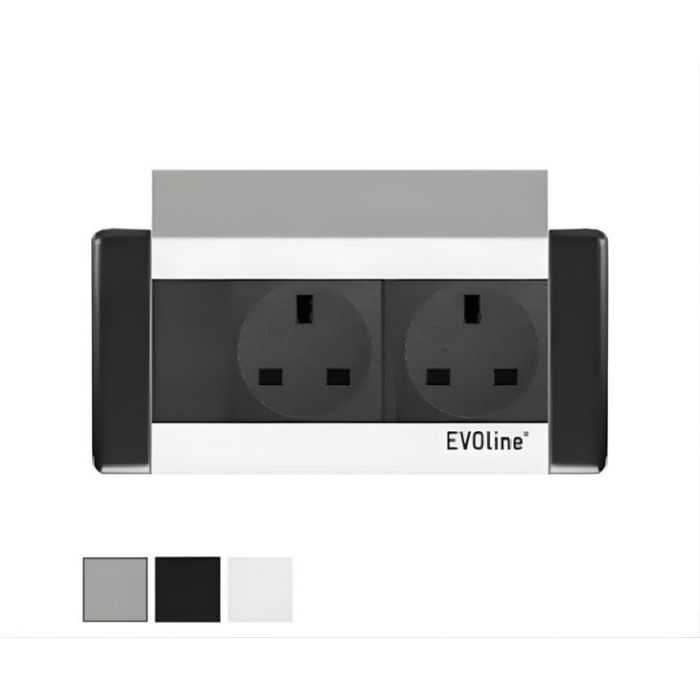

EVOline FrameDock Hide – Double UK Socket | Choice of Colour
EVOline FrameDock Hide with two UK power sockets and a hinged aluminium cover, available in Silver, Black or White. Designed for discreet, flush installation in desks, worktops and other suitable surfaces. Supplied with a 3m power cable and 13A UK plug. Requires a 155 x 71mm cut-out.
The EVOline FrameDock Hide provides two UK power sockets discreetly integrated into a desk, worktop or other suitable flat surface. Its hinged aluminium cover conceals the sockets when they are not required and helps protect the unit from dust and dirt.
With a compact installation depth and straightforward mounting system, the FrameDock Hide is suitable for offices, meeting rooms, reception desks, hotel rooms, kitchens and other contemporary interiors requiring convenient access to power.
Key benefits
- Two UK power sockets
- Flush-mounted design for desks and worktops
- Hinged aluminium cover conceals the sockets when not in use
- Helps protect the power unit from dust and dirt
- Available in Silver, Black or White
- Compact 53mm installation depth
- Supplied with a 3m power cable and 13A UK plug
- Other configurations are available upon request
Finish options and product references
| Product reference | Finish |
|---|---|
| FDHD.Q18331.1 | Silver |
| FDHD.Q18331.2 | Black |
| FDHD.Q18331.3 | White |
The Silver and Black versions have anodised aluminium profiles and matching aluminium covers. The White version has a white-finished aluminium profile and cover. All three versions have a black plastic socket fascia.
Technical details
- Power sockets: 2 x UK sockets
- USB-A charger: No
- USB-C charger: No
- Nominal voltage: 230V AC
- Nominal current: 13A
- Maximum input power: 2,990W
- Protection category: Class I
- Protection rating: IP20
- Installation depth: 53mm
- Required cut-out: 155mm long x 71mm wide
- Supply cable: 3m
- Plug: 13A UK plug
- UK sockets: Non-fused
Installation note
Do not cut the opening before receiving the product. Check the supplied unit and installation instructions carefully before preparing the final cut-out.
Warranty
1-year manufacturer’s warranty.
| Manufacturer | EVOline |
|---|---|
| Number of sockets | 2 Sockets |
| Wireless Charging | No |
| USB - A | No |
| USB - C | No |
| Approvals | UKCA Mark |
| Stock status | Made to order |
|---|---|
| Delivery time | 4-6 weeks |
| Returns Status | Returnable in 14 days |
