Granberg Baselift 6310HA, Floor, 103mm Front, ADJ Worktop Lift - 1001-1800mm

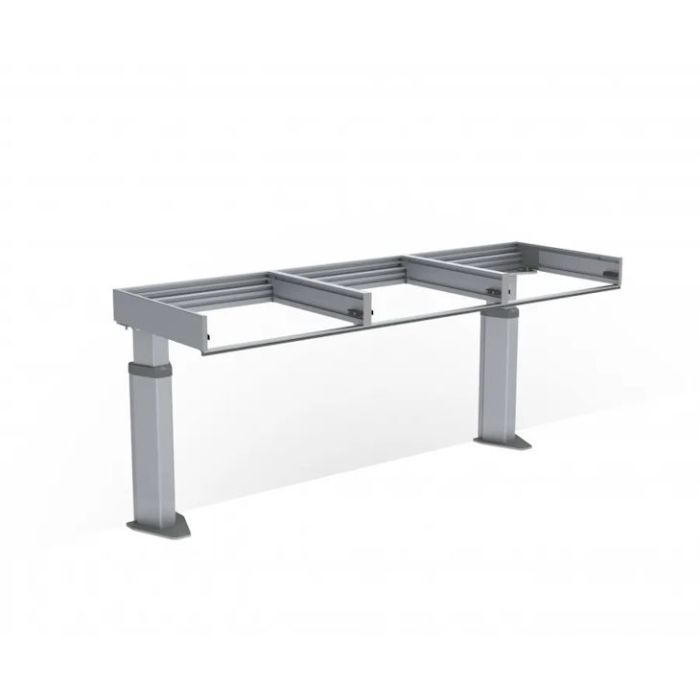

The Baselift 6310HA is an electric rise and fall worktop lift by renowned Swedish manufacturer Granberg.
Floor mounted, the lift creates a height adjustable access solution to cater for both standing and seated users. The lift can be used separately or together with Granberg's wall cabinet lifts to totally adapt the kitchen. Open space is left below the work surface for the users knees and legs.
Its innovative compartment frame design allows for the installation of facia fronts and accessories. The 6310HA series are designed for the Granberg Ergosteel 120mm deep shallow bowl kitchen sinks, full extension drawers and larger control buttons due to its increased frame height of 103mm.
This version of the Baselift 6310HA can be custom made to any width from 1001-1800mm.
Key benefits:
- Sturdy floor mounted design, ideal for unstable walls
- Clever compartment frame system with increased 103mm frame height allows for the installation of large control buttons, drawers and sinks
- Electric worktop lift with 300mm of continuous height adjustment, 700-1000mm above floor (excl. worktop)
- Custom made to any width between 1001-1800mm
- The frame depth is adjustable 560-590mm to fit adjoining cabinets
- The upper compartment is delivered pre-assembled, the sides are adjustable sideways to suit sink, hob and drawers
- The lifting system is adjustable at an angle to compensate for inclined walls / worktop
- Frame supplied assembled for quicker installation
- Simple 'plug and play' setup for easy motor configuration
- Includes brackets and screws for installation of facia fronts and worktop
Integrated safety system:
- Each lift is supplied fitted with a safety stop strip located below the front edge of the worktop frame
- This strip prevents the lift from moving once it comes into contact with an external source
- Additional safety stop strips can be added for the sides of the lift, required if the worktop is situated adjacent to other furniture* or objects like a waste bin
- *When installed at the correct height, the underside of the side frame will be 597mm off the floor at its lowest point and entrapment should be prevented
Choice of controls:
- Corded Control Button in Alu-design (Product Code: 61320)
- Corded Mini Touch Control Buttons (Product Code: 61318)
- Safety Key Lock (Product Code: 61360)
- Remote Control (Product Code: 61385)
Optional facia front:
- Factory fitted 103mm high aluminium compartment frame front cover
- Choice of finish / colour
- For a faster installation on site, the control buttons and key lock will be factory fitted
Recommended accessories:
- The compartment frame design of the Baselift HA allows for a high level of customisation
- Full extension drawers if ordered with a lift will be factory fitted
- A factory fitted facia front can be supplied and key lock to prevent misuse
- Hose covers or Cover panels can be fitted to hide the motor legs, plumbing and electrical services, that provide a more stylish installation
- Protective panels are available in a range of sizes to enclose the underside of the lift, ideal when cooking hobs are fitted
- Aluminium rear edge protection for fixing to the rear of your worktop to prevent spillages running behind the lift
- For a full list of accessories, please refer to the 'Installation and Help Guides' above or contact us to discuss your requirements
Technical details:
- Height adjustment: Motor-driven, steplessly adjustable by 300mm (700 - 1000mm excl. worktop)
- Speed: 30mm / sec.
- Safety: Security strip, contact with the strip stops the lift
- Electrical connection: Mains plug for 230 V, max 5.0 A
- Max. distributed load / Lifting force: 100kg (220lbs)
- IP-class: IP 20
- Frame depth: 560-590mm from wall
- For worktop depth: 565-630mm (15mm shallower than worktops on fixed cabinets)
- Front height: 103mm
- Fittings supplied: Attachments for facia front and worktop
- Clearance required to adjacent surfaces (mm): 5
- Gap to wall (for tiling): 15mm
- Tiling: From 700mm above floor (alternatively right down to floor)
- Material: Aluminium frame
- If fitting your own cover panels x2, dimensions required: Width = worktop width -10mm, height 438mm x thickness 12-20mm
- Order Granberg cover panels separately (Product code: 6260-240)
- Order Fitting kit for cover panels separately (Product code: 6260-005)
Warranty:
- 2 year manufacturer warranty
Please note:
- Due to the custom nature of this product, it is made-to-order and is therefore non-returnable
- This lift must be bolted to the floor
- Care should be taken to avoid hidden services and underfloor heating pipes / cables
Manufacturer product codes:
- 6310HA-109, 6310HA-110, 6310HA-119, 6310HA-120, 6310HA-129, 6310HA-130, 6310HA-139, 6310HA-140, 6310HA-149, 6310HA-150, 6310HA-159, 6310HA-160, 6310HA-169, 6310HA-170, 6310HA-179, 6310HA-180
Former manufacturer codes:
- The Baselift 6310HA has superseded the Baselift 6210 series
- Previous product codes included: 6210-109180-10, 6210-109, 6210-110, 6210-119, 6210-120, 6210-129, 6210-130, 6210-139, 6210-140, 6210-149, 6210-150, 6210-159, 6210-160, 6210-169, 6210-170, 6210-179, 6210-180
- Please check all technical details or contact us to discuss the product changes
Manufacturer | Granberg |
---|---|
Mounting / Model | Floor / Baselift 6310HA |
Max. Load (kg / St) | 100 / 15.7 |
Method of Operation | Electric - Push Button / Remote |
Height Adjustment (mm) | 300 |
Mounting | Floor Mounted |
Stock status | Made to order |
---|---|
Delivery time | 2-3 weeks |
Returns Status | Custom Made, non-returnable |
