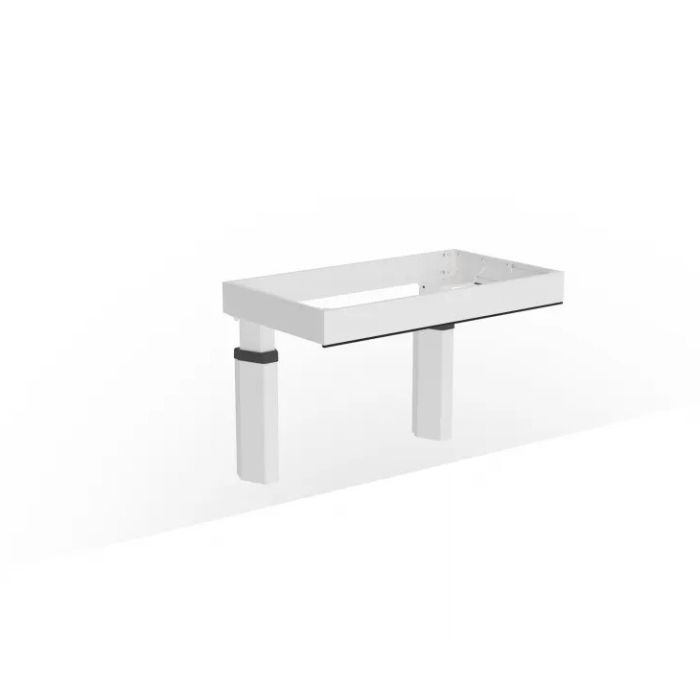

Granberg BASELIFT 6600HA KIT System – 590 to 890 mm Width, White (RAL 9003)

The Granberg BASELIFT 6600HA KIT System is a powerful motorised height-adjustable kitchen worktop lift designed to create an ergonomic and accessible working area for standing, seated and wheelchair users.

This 890 mm wide KIT system is particularly suitable for a shallow kitchen sink, cooking hob or compact preparation area where no additional side workspace is required. The open design beneath the worktop provides generous legroom and comfortable access for seated users.

The BASELIFT 6600HA is supplied in parts for straightforward transport, handling and on-site assembly. The installer can cut the frame down from its supplied width of 890 mm to a minimum width of 590 mm. The side frame sections can also be shortened during installation where a reduced frame depth is required.

This on-site flexibility makes the KIT system particularly suitable for bespoke kitchens, restricted spaces and installations that must align with existing cabinets or non-standard worktop dimensions.

Powerful, low-noise Plug & Play motors provide smooth and stepless height adjustment through 300 mm, allowing the worktop to move between 700 and 1000 mm above the floor, excluding the worktop. With a maximum lifting capacity of 160 kg, the system can support heavy worktops, including suitable stone and composite materials.

Finished in durable White (RAL 9003), the lifting frame integrates with kitchen furniture and worktops from virtually any kitchen manufacturer.

Important: This is a KIT lifting system supplied for on-site assembly, cutting and adjustment. Worktop, sink, tap, hob, plumbing components, decorative fronts and optional cover panels are not included unless specifically stated.

Key Benefits

• Motorised height-adjustable kitchen worktop lift
• Supplied at 890 mm wide and can be cut down on site to a minimum width of 590 mm
• Side frame sections can be shortened where a reduced frame depth is required
• Ideal for a sink, hob or compact preparation area
• Stepless 300 mm height adjustment from 700–1000 mm excluding the worktop
• Maximum lifting capacity of 160 kg
• Open space beneath the worktop provides generous legroom
• Suitable for standing, seated and wheelchair users
• Supplied flat-packed for easier transport and handling
• Frame width and depth can be adapted during installation
• Centre sections can be repositioned to accommodate a sink or hob
• Worktop angle can be adjusted to compensate for uneven walls
• Plug & Play electronics and motor system
• Integrated safety strip immediately stops movement when activated
• Optional cover panels can conceal motors, water pipes and waste connections
• Can be integrated with kitchen fronts from virtually any manufacturer

Technical Specification

• Model: BASELIFT 6600HA KIT System
• Product Code: 6600HAK-089-01
• Colour: White (RAL 9003)
• Supplied lift width (mm): 890
• Minimum cut-down width (mm): 590
• Recommended application: Sink, hob or compact work area
• Mounting: Wall mounted
• Height adjustment: Motorised and stepless, 300 mm
• Usable height range: 700–1000 mm excluding worktop
• Maximum lifting capacity: 160 kg
• Lifting speed: 30 mm/sec
• Frame depth from wall including integrated front (mm): 576–616 before any approved on-site shortening
• Suitable worktop depth (mm): 565–630
• Worktop width: Equal to the finished lift width
• Front height (mm): 103
• Space to adjoining wall or cabinet (mm): 5
• Space to wall for tiles (mm): 15
• Electrical connection: UK Plug, 230 V, maximum 2.9 A
• Plumbing connections: Flexible hoses required
• Safety: Integrated safety strip beneath the lifting frame
• Protection class: IP20
• Material: Powder-coated aluminium frame
• Compatible sink bowl depth: Maximum 120 mm

KIT System Advantages

• Delivered unassembled in flat packs
• Designed for straightforward on-site assembly
• Can be cut down from 890 mm to a minimum width of 590 mm
• Side sections can be shortened for installations requiring a reduced depth
• Suitable for custom-sized and bespoke kitchen projects
• Reduces transportation and handling requirements
• Time and cost efficient for experienced installers

Choice of Control

• Corded Control Button, Black (Product Code: 61322-10)
• - Provides reliable hard-wired operation of the lifting system
• Key Lock for Control Button (Product Code: 61360)
• - Locks the control button to prevent unauthorised use

Optional Cover Panels

• Designed to conceal motors, flexible hoses, water pipes and waste connections
• Quantity: 2 panels
• Panel width: Finished lift width minus 10 mm
• Panel height (mm): 438
• Suitable panel thickness (mm): 12–20
• Available separately in White

Frequently Asked Questions

Can the 890 mm frame be made narrower?
Yes. The KIT frame can be cut down on site from 890 mm to a minimum finished width of 590 mm.

Can the frame depth be reduced?
Yes. The side frame sections can be shortened during installation where a shallower frame depth is required. The finished dimensions should be coordinated with the selected worktop, sink, hob and adjoining cabinets.

What is the 890 mm BASELIFT 6600 suitable for?
It is ideal for a shallow kitchen sink, cooking hob or compact preparation area where additional side workspace is not required.

Can a sink be installed?
Yes. A shallow sink with a maximum bowl depth of 120 mm can be integrated using flexible plumbing connections.

Can a cooking hob be fitted?
Yes. The adjustable centre sections allow a suitable hob to be incorporated into the worktop.

Can the lift support a stone worktop?
Yes. The BASELIFT 6600 has a maximum lifting capacity of 160 kg and is suitable for stone and composite worktops, provided the total installed load does not exceed the stated limit.

Is the system suitable for wheelchair users?
Yes. The open space beneath the worktop provides clear knee space and allows the working height to be adjusted for seated use.

Is the system supplied assembled?
No. This KIT version is delivered flat-packed and is assembled, cut and adjusted on site by the installer.

Are the worktop and cover panels included?
No. The worktop and optional decorative cover panels are supplied separately unless specifically stated.

Warranty

• 5-year Granberg manufacturer warranty on the lifting system.
• Register your product on Granberg's website to receive the full 5-year warranty. Without registration, the standard 3-year warranty applies.
