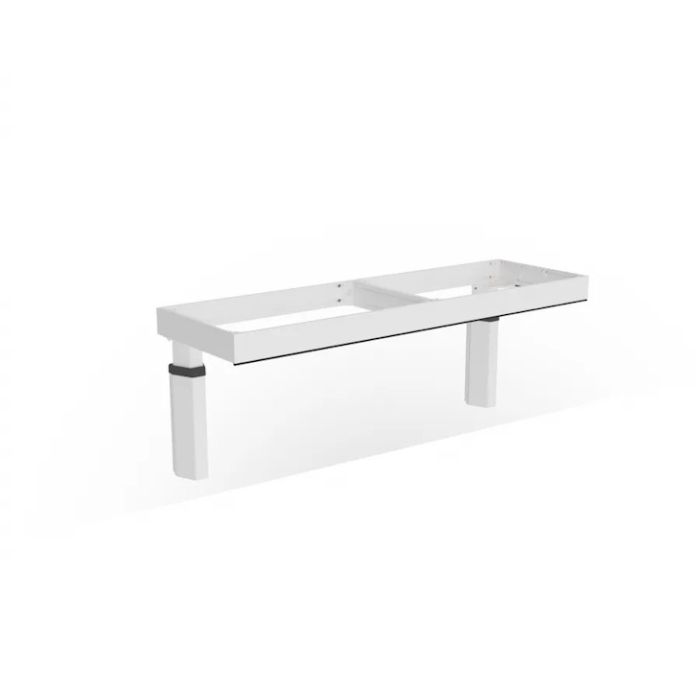

Granberg BASELIFT 6600HA KIT System – 900 to 1590 mm Width, White (RAL 9003)

The Granberg BASELIFT 6600HA KIT System is a powerful motorised height-adjustable kitchen worktop lift designed to create an ergonomic and accessible working area for standing, seated and wheelchair users.

This KIT system is suitable for finished worktop or planning widths from 900 mm to 1590 mm. The 1590 mm version is particularly well suited to a shallow kitchen sink or cooking hob together with useful side preparation space.

Please note: The lifting frame is designed to be 10 mm shorter than the stated finished worktop or planning width. At the maximum 1590 mm planning width, the lift frame is approximately 1580 mm wide. This clearance allows the worktop lift to move safely between adjoining cabinets and fixed kitchen furniture.

The BASELIFT 6600HA is supplied in parts for straightforward transport, handling and on-site assembly. Its horizontal frame components can be cut during installation to achieve the required finished width. The side frame sections can also be shortened where a reduced frame depth is required.

This on-site flexibility makes the KIT system especially suitable for bespoke kitchens, restricted spaces and installations that need to align with existing cabinets or non-standard worktop dimensions.

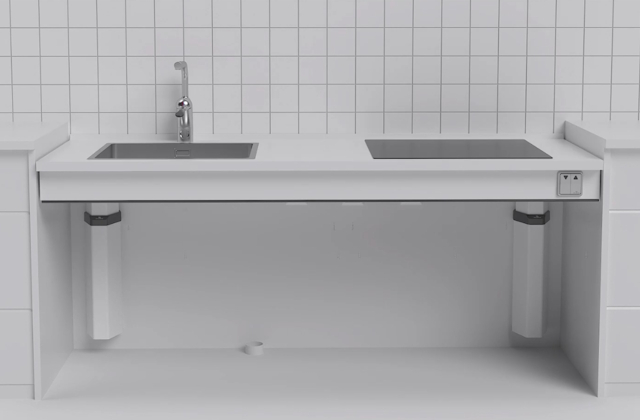

The open design beneath the worktop provides generous knee space and comfortable access for seated users. Centre sections within the frame can be repositioned sideways to accommodate a shallow sink bowl or suitable cooking hob.

Powerful, low-noise Plug & Play motors provide smooth and stepless height adjustment through 300 mm, allowing the worktop to move between 700 and 1000 mm above the floor, excluding the worktop. With a maximum lifting capacity of 160 kg, the system can support heavy worktops, including suitable stone and composite materials.

Finished in durable White (RAL 9003), the lifting frame can be integrated with kitchen furniture and worktops from virtually any kitchen manufacturer.

Important: This is a KIT lifting system supplied for on-site assembly, cutting and adjustment. Worktop, sink, tap, hob, plumbing components, decorative fronts and optional cover panels are not included unless specifically stated.

Key Benefits

• Motorised height-adjustable kitchen worktop lift
• Suitable for finished worktop widths from 900 mm to 1590 mm
• Lift frame is approximately 10 mm shorter than the selected finished worktop width
• Horizontal frame components can be cut on site to achieve the required width
• Side frame sections can be shortened where a reduced depth is required
• Ideal for a shallow sink or cooking hob with additional side workspace
• Stepless 300 mm height adjustment from 700–1000 mm, excluding worktop
• Maximum lifting capacity of 160 kg
• Open space beneath the worktop provides generous knee room
• Suitable for standing, seated and wheelchair users
• Supplied flat-packed for easier transport and handling
• Centre sections can be repositioned to accommodate a sink or hob
• Worktop angle can be adjusted to compensate for uneven walls
• Plug & Play electronics and motor system
• Integrated safety strip immediately stops movement when activated
• Optional cover panels can conceal motors, water pipes and waste connections
• Can be integrated with kitchen fronts from virtually any manufacturer

Technical Specification

• Model: BASELIFT 6600HA KIT System
• Product code: 6600HAK-159-01
• Colour: White (RAL 9003)
• Finished worktop / planning width range (mm): 900–1590
• Maximum supplied lift-frame width (mm): Approximately 1580
• Frame clearance: Lift frame is 10 mm shorter than the selected planning width
• Recommended application: Shallow sink or hob with side preparation space
• Mounting: Wall mounted
• Height adjustment: Motorised and stepless, 300 mm
• Usable height range: 700–1000 mm excluding worktop
• Maximum lifting capacity: 160 kg
• Lifting speed: 30 mm/sec
• Frame depth from wall including integrated front (mm): 576–616 before approved on-site shortening
• Suitable worktop depth (mm): 565–630
• Worktop width: Selected finished planning width
• Front height (mm): 103
• Space to adjoining wall or cabinet (mm): 5
• Space to wall for tiles (mm): 15
• Electrical connection: UK plug, 230 V, maximum 2.9 A
• Plumbing connections: Flexible hoses required
• Safety: Integrated safety strip beneath the lifting frame
• Protection class: IP20
• Material: White powder-coated aluminium frame
• Compatible sink bowl depth: Maximum 120 mm

KIT System Advantages

• Delivered unassembled in flat packs
• Designed for straightforward on-site assembly
• Horizontal components can be cut to suit worktops from 900–1590 mm wide
• Side components can be shortened for installations requiring a reduced depth
• Suitable for custom-sized and bespoke kitchen projects
• Reduces transportation and handling requirements
• Time and cost efficient for experienced installers

Choice of Control

• Corded Control Button, Black (Product Code: 61322-10)
• - Provides reliable hard-wired operation of the lifting system
• Key Lock for Control Button (Product Code: 61360)
• - Locks the control button to prevent unauthorised use

Optional Cover Panels

• Designed to conceal motors, flexible hoses, water pipes and waste connections
• Quantity: 2 panels
• Panel width: Finished lift-frame width
• Standard 1590 mm planning-width panel size: 1580 mm
• Panel height (mm): 438
• Suitable panel thickness (mm): 12–20
• Available separately in White

Frequently Asked Questions

Can the system be made narrower than 1590 mm?
Yes. The KIT frame components can be cut on site to suit finished worktop widths from 900 mm to 1590 mm.

Why is the lifting frame shorter than the stated product width?
The lift frame is approximately 10 mm shorter than the selected worktop or planning width. This provides the clearance required for safe vertical movement between adjoining cabinets.

Can the frame depth be reduced?
Yes. The side frame sections can be shortened during installation where a shallower depth is required. The finished dimensions should be coordinated with the selected worktop, sink, hob and adjoining cabinets.

What is this BASELIFT 6600 model suitable for?
It is ideal for a shallow kitchen sink or cooking hob together with practical side preparation space.

Can a sink be installed?
Yes. A shallow sink with a maximum bowl depth of 120 mm can be integrated using flexible plumbing connections.

Can a cooking hob be fitted?
Yes. The adjustable centre sections allow a suitable hob to be incorporated into the worktop.

Can the lift support a stone worktop?
Yes. The BASELIFT 6600 has a maximum lifting capacity of 160 kg and can support suitable stone or composite worktops, provided the total installed load remains within this limit.

Is the system suitable for wheelchair users?
Yes. The open space beneath the worktop provides clear knee room and allows the working height to be adjusted for seated use.

Is the system supplied assembled?
No. This KIT version is delivered flat-packed and is assembled, cut and adjusted on site by the installer.

Are the worktop and cover panels included?
No. The worktop and optional decorative cover panels are supplied separately unless specifically stated.

Warranty

• 5-year Granberg manufacturer warranty on the lifting system
• Register the product on Granberg's website to receive the full 5-year warranty. Without registration, the standard 3-year warranty applies
