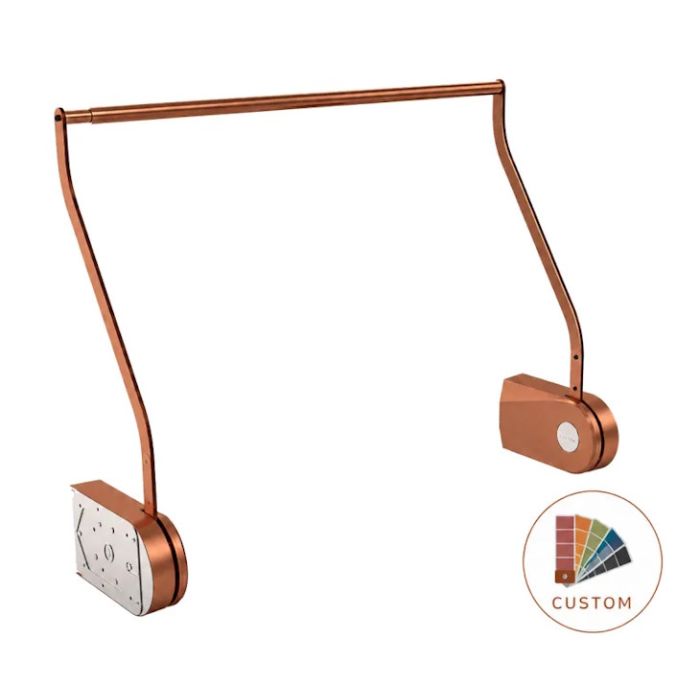

Granberg BUTLER 732 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Custom – Any colour

Granberg BUTLER 732 Electric Wardrobe Lift – High-Level Design – Custom Colour

The Granberg BUTLER 732 is a premium electric wardrobe lift specifically designed to make high-level hanging storage accessible. At the touch of a button, the clothes rail moves outwards and downwards, bringing garments stored high in the wardrobe to a comfortable and convenient working height.

This special Custom Colour version, Product Code 732-160-99, allows the BUTLER 732 to be specified in a customer-selected colour, making it possible to coordinate the wardrobe lift with bespoke cabinetry, interior finishes, architectural colour schemes and premium furniture installations.

For example, a project may specify a colour such as NCS S 3020-Y40R or RAL 7016. The required colour reference should be confirmed when ordering so that the lift can be manufactured to suit the project.

The custom-colour option is particularly useful for bespoke residential interiors, luxury dressing rooms, hotels, retail environments, specialist joinery and accessible projects where the wardrobe lift needs to integrate visually with the surrounding furniture rather than appearing as a standard component.

The BUTLER 732 uses curved lifting arms and is mounted further forward within the cabinet than the BUTLER 730. This allows the clothes rail to travel further out and significantly further down, making the 732 particularly suitable for very tall wardrobes and high-level storage installations.

The motorised clothes rail provides approximately 1118 mm of downward travel and 762 mm of outward travel. The movement is stepless, allowing the user to stop the rail at the most convenient height. :contentReference[oaicite:1]{index=1}

Why Choose the Custom Colour BUTLER 732?

• Electric wardrobe lift designed specifically for high-level clothes storage.
• Custom colour option for bespoke interior and furniture schemes.
• Customer-selected colour reference can be specified when ordering.
• Suitable for project colours such as RAL and NCS references.
• Ideal for bespoke wardrobes, dressing rooms, hotels and premium interiors.
• Clothes rail moves outwards and downwards towards the user.
• Approximately 1118 mm downward travel.
• Approximately 762 mm outward travel.
• Curved lifting arms provide extended outward reach.
• Suitable for wardrobes from 600–1600 mm wide.
• Helps maximise the full height of tall wardrobes.
• Allows valuable storage space to remain available beneath the upper clothes rail.
• Suitable for seated users, wheelchair users and people with limited reach or mobility.
• Stepless electric adjustment allows the rail to be stopped at the preferred height.
• Maximum lifting capacity of 30 kg.
• Integrated safety stop halts movement if an obstruction is encountered.
• Very quiet motorised operation.
• Bluetooth control button supplied as standard.
• Optional wireless remote controls available.

Custom Colour – Match the Wardrobe to Your Interior

The 732-160-99 is the custom-colour version of the Granberg BUTLER 732.

Instead of being limited to one of the standard Signal White, Umber Grey or Jet Black finishes, this version can be ordered to coordinate with a specific interior colour scheme.

This makes the lift particularly suitable for bespoke joinery and architectural projects where visible components need to complement wardrobe doors, internal cabinetry, furniture finishes or the wider interior design.

Example colour references include:

• NCS S 3020-Y40R
• RAL 7016
• Other customer-specified RAL or NCS colour references

The exact colour reference should be supplied and confirmed when ordering. Colour appearance can vary depending on the material, surface finish, lighting and surrounding finishes, so project samples or colour references should be checked where an exact visual match is important.

Designed for High-Level Wardrobe Storage

The BUTLER 732 is designed for installations where the clothes rail needs to be positioned much higher than would normally be practical.

At the push of a button, the height-adjustable rail lowers by approximately 1120 mm, bringing high-level clothes within comfortable reach.

Granberg notes that a person of average height can comfortably reach to around 1900 mm. This means the clothes rail can be positioned at up to approximately 3000 mm above floor level in its upper position. :contentReference[oaicite:2]{index=2}

This allows the full height of a tall wardrobe to be used effectively while retaining the lower section for another hanging rail, shelves, drawers, baskets, shoes or other storage.

Up to 3000 mm High-Level Rail Position

The extended travel of the BUTLER 732 makes it possible to locate hanging storage considerably higher than with a conventional fixed clothes rail.

With approximately 1118 mm downward movement, an upper rail positioned close to 3000 mm above floor level can be lowered towards a much more practical working height.

This is particularly useful in tall wardrobes, walk-in dressing rooms and projects where valuable vertical storage space would otherwise be difficult to use.

Curved Arms for Extended Reach

The BUTLER 732 features specially shaped curved lifting arms and is positioned further forward within the wardrobe than the BUTLER 730.

This design allows the clothes rail to project further out from the cabinet as it lowers, improving access and providing a clearer overview of the hanging garments. Granberg specifically identifies this extended outward movement as one of the key differences between the BUTLER 732 and BUTLER 730. :contentReference[oaicite:3]{index=3}

Suitable Wardrobe Widths

The BUTLER 732 is designed for wardrobes from 600 to 1600 mm wide. Two telescopic clothes-rail configurations cover the range.

• For wardrobes width (mm): 600–1600
• Wardrobe widths: 600-900mm
• For internal wardrobe dimensions of 545-868mm in width
• Telescopic rail dimensions 453-776mm in width
• Wardrobe widths: 1000-1600mm
• For internal wardrobe dimensions of 945-1568mm in width
• Telescopic rail dimensions 853-1476mm in width

The clear internal wardrobe width should always be measured before ordering so that the correct telescopic clothes rail configuration can be supplied.

Electric Out-and-Down Movement

The BUTLER 732 electrically lowers the clothes rail in front of the wardrobe. Its movement is stepless, allowing the user to stop the rail at a suitable position rather than being restricted to fixed upper and lower stopping points.

• Downward travel: Approximately 1118 mm
• Outward travel: Approximately 762 mm
• Movement speed: 47 mm/sec
• Maximum lifting load: 30 kg

The Granberg specification confirms stepless adjustment of 1118 mm downwards and 762 mm outwards, with a maximum lifting capacity of 30 kg. :contentReference[oaicite:4]{index=4}

Integrated Safety Stop

The BUTLER 732 incorporates an integrated safety stop designed to halt movement if the lift encounters an obstruction.

This is especially important in a high-level lifting system where the clothes rail travels through a substantial vertical and outward movement. The surrounding wardrobe must nevertheless be carefully planned so that shelving, doors, drawers, handles or other fittings cannot create trapping or crushing points.

Granberg lists an integrated safety stop that halts movement upon collision as one of the principal functions of the BUTLER 732. :contentReference[oaicite:5]{index=5}

Bluetooth Control Included

A compact Bluetooth control button is included as standard with the BUTLER 732. It can be positioned in a convenient and accessible location and mounted using double-sided adhesive tape.

• Bluetooth control button included as standard.
• Black button with white symbols.
• Product Code: 61250-10.
• Diameter: 60 mm.
• Height: 8 mm.
• Can be mounted using double-sided adhesive tape.

A wireless remote control for operating one or more lifting systems is also available as an optional accessory. :contentReference[oaicite:6]{index=6}

Optional Wireless Hand Controls

Optional handheld wireless controls are available where remote operation is preferred or where several BUTLER wardrobe lifts need to be operated from one handset.

• Radio hand control for 1 lifting system – Black – Product Code: 61385-10
• Radio hand control for 2 lifting systems – Black – Product Code: 61387-10
• Radio hand control for 3 lifting systems – Black – Product Code: 61388-10
• Radio hand control for 4 lifting systems – Black – Product Code: 61389-10
• Radio hand control for 5 lifting systems – Black – Product Code: 61390-10

Where a wireless remote control is specified, the appropriate receiver is required for each BUTLER lifting system.

Included as Standard

• 1 × Granberg BUTLER 732 electric wardrobe lift.
• Telescopic clothes rail.
• 1 × Control unit with two connection cables.
• 1 × Power supply unit with UK plug.
• 1 × Bluetooth control button.

The Granberg brochure confirms that the wardrobe lift, control unit, power supply and Bluetooth control button are included as standard equipment. :contentReference[oaicite:7]{index=7}

Custom Colour Specification

• Product version: Custom colour
• Colour: Customer specified
• Colour reference: To be confirmed when ordering
• Suitable colour systems: RAL / NCS
• Example NCS colour: NCS S 3020-Y40R
• Example RAL colour: RAL 7016

This custom-colour option allows the visible components of the BUTLER 732 to be coordinated with bespoke wardrobe and interior schemes. The final colour specification should always be agreed before manufacture.

Technical Specification

• Product Code: 732-160-99
• Product: Granberg BUTLER 732
• Product type: High-level electric wardrobe lift
• Finish: Custom – Any colour
• Colour reference: Customer specified
• Arm design: Curved
• For wardrobes width (mm): 600–1600
• Wardrobe widths: 600-900mm
• For internal wardrobe dimensions of 545-868mm in width
• Telescopic rail dimensions 453-776mm in width
• Wardrobe widths: 1000-1600mm
• For internal wardrobe dimensions of 945-1568mm in width
• Telescopic rail dimensions 853-1476mm in width
• Overall internal cabinet width range: 545–1568 mm
• Movement: Electrically outwards and downwards
• Downward travel: Approximately 1118 mm
• Outward travel: Approximately 762 mm
• Movement speed: 47 mm/sec
• Maximum load on clothes rail: 30 kg
• Electrical supply: 230 V, 50/60 Hz
• Rated current: 2.9 A
• Motor cable length: 1500 mm
• Noise level: 52 dB
• Delivery package dimensions: Approximately 900 × 490 × 90 mm
• Delivered weight: Approximately 18 kg
• Bluetooth control button supplied as standard

Granberg identifies Product Code 732-160-99 as the custom-colour BUTLER 732 for internal cabinet widths from 545–1568 mm. :contentReference[oaicite:8]{index=8}

Planning & Installation

• Confirm the required custom colour reference before ordering.
• Check the wardrobe width and clear internal cabinet width before ordering.
• Select the correct telescopic rail configuration for the wardrobe size.
• Allow sufficient height for the complete upper storage position.
• Allow adequate clearance for the full 1118 mm downward and 762 mm outward movement.
• The wardrobe must be securely anchored to the wall before the lift is operated.
• The cabinet construction must be capable of supporting the concentrated loads from the motor units.
• The wardrobe side panels and fixing points must be sufficiently strong for the installation.
• Wall construction and wardrobe fixings may require reinforcement depending on the project.
• Do not position shelves, doors, handles, drawers or other fittings where they could interfere with the moving lift.
• Avoid creating crushing or trapping points between the lift and fixed furniture or fittings.
• The required wardrobe depth will depend partly on the type and size of clothing being stored.
• The power supply should remain accessible for servicing.
• Installation should be completed by suitably competent installers.

Important Safety Information

The wardrobe must be securely fixed to the building structure. As the BUTLER 732 moves a loaded clothes rail both forwards and downwards, the system creates changing forces on the cabinet and its wall fixings.

The maximum permitted load on the clothes rail is 30 kg. The wardrobe construction, fixings and supporting structure must therefore be capable of safely supporting the loads generated during operation.

The lift must not be installed where its moving components could trap a user against another fixed object, shelf or item of furniture.

Warranty

• 5-year manufacturer warranty when registered in accordance with Granberg's warranty requirements.
• Without registration, the standard 3-year warranty applies.

Granberg specifies a 5-year warranty against manufacturing defects when the lifting system is registered, with the standard 3-year warranty applying without registration. :contentReference[oaicite:9]{index=9}
