Signal White
RAL 9003 motor covers with natural anodised aluminium arms and a chrome-plated clothes rail.
732-160-01Granberg BUTLER 732 - Electric Fold Down Wardrobe Rail
Accessible Storage & Access
Granberg BUTLER 732
Use the full height of a tall wardrobe without putting clothes beyond reach. BUTLER 732 lowers a high-level rail by more than a metre and brings it forwards towards the user; now with a made-to-order custom colour option.
1118mm downward travel30kg rail capacityInstall rail up to 3000mm highCustom colour available
Long-travel powered access for tall wardrobes
Make high-level storage genuinely usable
Store clothes where the wardrobe has space, not only where the user can reach
BUTLER 732 is the long-travel model in Granberg's current electric wardrobe-lift range. Its curved arms and forward mounting position are designed to bring a clothes rail down from much higher in the wardrobe than a conventional accessible rail.
Granberg states that an average-height person can comfortably reach around 1900mm, while the 732 can allow the rail to be positioned as high as 3000mm above the floor in its upper position. That makes the upper wardrobe zone useful without giving up independent access.
The lower part of the wardrobe can then remain available for another clothes rail, drawers, shelves or other storage, subject to keeping the complete movement path clear.
1118mmStepless downward travel
762mmOutward travel towards the user
30kgMaximum distributed rail load
545–1568mmInternal wardrobe width range
Extended movement for high installation
The extra travel changes what counts as usable wardrobe space
BUTLER 732 is not simply a longer version of the 730. Its curved-arm geometry and forward mounting position are specifically intended to reach down from much higher storage positions.
↓extra-long travel
Concept only: the high-level system has a larger movement envelope, so planning around doors, shelves, garments and the user is especially important.
BUTLER 732 movement
More than a metre of vertical adjustment
The current product specification gives 1118mm downward movement and 762mm outward movement. The powered rail remains steplessly adjustable, allowing the user to stop at the most comfortable position.
1118mmDownward movement
762mmOutward movement
47mm/secPowered movement speed
Safety stopMovement halts if an obstruction is encountered
Standard finishes
Three ready-to-specify colour combinations
Signal White, Umber Grey and Jet Black remain the straightforward standard choices. BUTLER 732 then goes a step further with a separate made-to-order custom-colour version.
Umber Grey
RAL 7022 motor covers with black anodised aluminium arms and a chrome-plated clothes rail.
732-160-06Jet Black
RAL 9005 motor covers with black anodised aluminium arms and a chrome-plated clothes rail.
732-160-10New design freedom
Any colour. Not just any accessible wardrobe.
The current BUTLER 732 is now available as a made-to-order Custom – Any colour version. Independent 4 Life lists the -99 option with custom-colour covers, arms and rail, allowing the lifting system to coordinate much more closely with bespoke cabinetry, dressing rooms and interior schemes.
That matters because high-specification accessible storage no longer needs to announce itself as specialist equipment. The movement can be designed around the user while the finish is designed around the room.
Illustrative swatches only. Custom finishes are made to order; confirm the required colour specification when ordering.
Powered independent access
Bluetooth control is standard, with optional radio remotes
The current BUTLER 732 is supplied with a Bluetooth control button. Optional wireless hand controls can operate one lift or several Granberg lifting systems from the same handset.
Bluetooth button included
Position the standard control within the intended user's comfortable reach. The rail can be stopped at any point in its movement.
Single-lift remote
An optional handheld radio control is useful where the user prefers portable operation rather than relying only on a fixed local button.
Multi-lift remote
Useful in larger dressing rooms where multiple powered rails or other Granberg lift systems need to be operated from one handset.
High-level storage in context
Use the vertical space without turning it into inaccessible storage

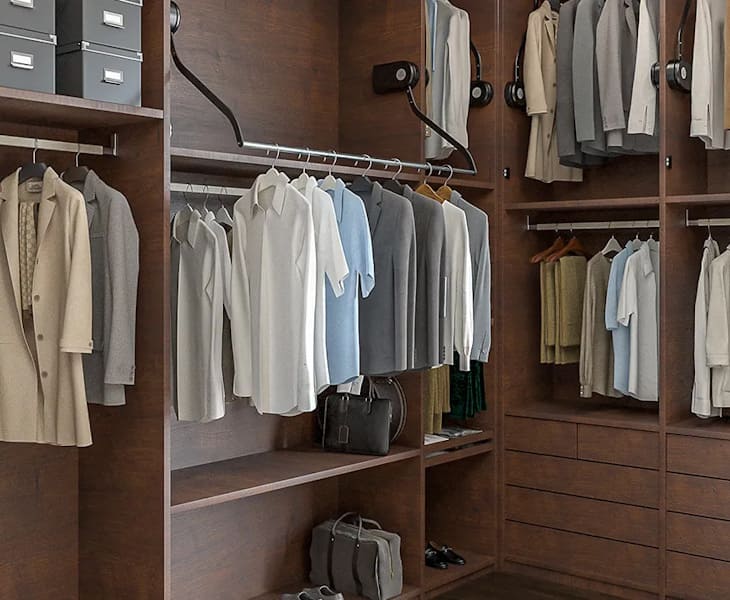

These image positions are intended to show the 732 raised, lowered, installed in tall cabinetry and integrated into more design-led wardrobe schemes.
High stored position
More than 1m down
Tall wardrobe planning
Designed into the roomWatch the current generation
The extra travel makes much more sense in motion
Watch the 732 bring genuinely high-level hanging clothes down into reach, then use the installation video for a closer look at the current fitting and setup process.
BUTLER 732 in motion
See the curved-arm system bring clothes from a high stored position forwards and down towards the user.
Installation overview
For installers and specifiers: review the current mounting arrangement and setup process. Always use Granberg's latest instructions for the exact configuration being installed.
BUTLER 730 or BUTLER 732?
The 732 earns its place when the storage genuinely needs to be high
Both current systems support a 30kg distributed clothes load and the same broad wardrobe widths. Choose 732 when the extra vertical storage capacity justifies the larger movement envelope.
BUTLER 730
Straight-arm movement for conventional wardrobe heights. A strong choice where 704mm of downward travel is enough to create the required reach position.
Downward travel704mm
Outward travel591mm
Finish choice3 standard colours
BUTLER 732
The high-level solution. Curved arms provide longer downward and outward movement, with a custom-colour option for more design-led projects.
Downward travel1118mm
Outward travel762mm
Special optionCustom – Any colour
High-level storage needs careful planning
The longer the travel, the more important the complete movement envelope becomes
BUTLER 732 can unlock excellent storage capacity, but the wardrobe must be designed around the path of the rail, the garments and the curved arms.
Set the stored rail height
Establish how high the rail can sit while still allowing the 1118mm downward movement to reach the intended user comfortably.
Measure internal width
The telescopic mechanism fits approximately 545–1568mm internal width, corresponding to nominal 600–1600mm wardrobes.
Keep the forward path clear
The rail moves 762mm outwards. Doors, furniture, lighting and the user position must all be considered in front of the wardrobe.
Design lower storage around it
A second rail, drawers or shelves can use the space below, but must stay clear of the descending clothes and moving mechanism.
Provide power and control
Plan the 230V supply and put the Bluetooth control where the intended user can operate it comfortably.
Specify custom colour early
If using the -99 custom-colour version, confirm the required finish as part of the wardrobe specification rather than after manufacture.
Experience high-level movement at Bellamy House
Our showroom uses the previous BUTLER 722 generation
The Wardrobe Area currently demonstrates the superseded BUTLER 722 rather than the new 732. It remains extremely useful for understanding the high-level storage concept, the larger movement path and the value of bringing clothes down from above lower storage.
Made by Granberg
Swedish lifting-system engineering beyond the kitchen
BUTLER applies the same Granberg principle used across its accessible kitchen and storage systems: use powered movement to bring storage to the user rather than permanently restricting storage to a low fixed position.
Explore Granberg →High-level wardrobe specification support
Planning a tall wardrobe, dressing room or custom-colour installation?
Send us the internal wardrobe width, intended upper rail height, available depth, lower-storage layout, preferred reach position and, for the custom version, the required colour specification. We can help check whether BUTLER 732 suits the design.
Granberg BUTLER 732 - Electric Fold Down Wardrobe Rail
-
Available to order
7-10 working days
-
Granberg Radio Remote Hand Control, Black, 2–5 Lifting SystemsProduct Code: 6138x-10Email for QuoteAvailable to order
7-10 working days
-
Granberg BUTLER 732 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Signal White Motor Covers & Natural ArmsProduct Code: 732-160-01£2,778.00 £2,315.00 Exc. VATAvailable to order
7-10 working days
-
Granberg BUTLER 732 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Umber Grey Motor Covers & Black ArmsProduct Code: 732-160-06£2,778.00 £2,315.00 Exc. VATAvailable to order
7-10 working days
-
Granberg BUTLER 732 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Jet Black Motor Covers & Black ArmsProduct Code: 732-160-10£2,778.00 £2,315.00 Exc. VATAvailable to order
7-10 working days
-
Available to order
7-10 working days
-
Made to order
Please Email for a lead time
