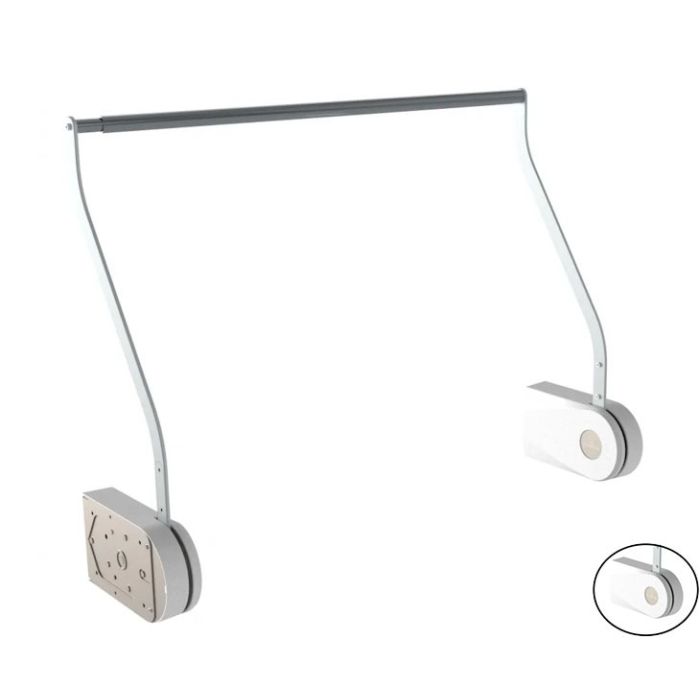

Granberg BUTLER 732 Electric Wardrobe Lift, Cabinet Width 600–1600 mm – Signal White Motor Covers & Natural Arms

Granberg BUTLER 732 Electric Wardrobe Lift – High-Level Design – Signal White

The Granberg BUTLER 732 is a premium electric wardrobe lift specifically designed to make high-level hanging storage accessible. At the touch of a button, the clothes rail moves outwards and downwards, bringing garments stored high in the wardrobe to a comfortable and convenient working height.

This Signal White version features Signal White (RAL 9003) plastic housings, natural anodised aluminium arms and a chrome-plated clothes rail.

Unlike the BUTLER 730, the BUTLER 732 uses curved arms and is positioned further forward inside the wardrobe. This allows the clothes rail to travel further out and significantly further down, making the 732 particularly suitable for very tall wardrobes, dressing rooms and high-level storage installations. :contentReference[oaicite:1]{index=1}

The motorised clothes rail has approximately 1118 mm of downward travel and 762 mm of outward travel. The movement is stepless, allowing the user to stop the rail at the most convenient height. :contentReference[oaicite:2]{index=2}

With this extended travel, the full height of a wardrobe can be used efficiently. Granberg notes that a person of average height can comfortably reach around 1900 mm, which means the clothes rail can be positioned as high as approximately 3000 mm above floor level when in its upper position. :contentReference[oaicite:3]{index=3}

This leaves valuable space below the upper clothes rail for a second hanging rail, shelves, drawers, baskets, shoes or other storage.

Why Choose the BUTLER 732?

• Electric wardrobe lift designed specifically for high-level clothes storage.
• Clothes rail moves outwards and downwards towards the user.
• Approximately 1118 mm downward travel.
• Approximately 762 mm outward travel.
• Curved arms allow the rail to project further out than the BUTLER 730.
• Suitable for wardrobes from 600–1600 mm wide.
• Helps maximise the full height of tall wardrobes and dressing-room storage.
• Allows space below for a second clothes rail or alternative storage.
• Suitable for seated users, wheelchair users and people with limited reach or mobility.
• Stepless electric adjustment allows the rail to be stopped at the preferred height.
• Maximum lifting capacity of 30 kg.
• Integrated safety stop halts movement if an obstruction is encountered.
• Very quiet motors occupy minimal space inside the wardrobe.
• Bluetooth control button supplied as standard.
• Optional wireless remote controls available.
• Signal White RAL 9003 plastic housings.
• Natural anodised aluminium arms.
• Chrome-plated clothes rail.

Designed for High-Level Wardrobe Storage

The BUTLER 732 is designed for installations where the clothes rail needs to be positioned much higher than would normally be practical.

By lowering the rail by approximately 1120 mm, the lift allows garments stored high above normal reach to be brought down to a comfortable height. This makes it possible to use substantially more of the vertical space available inside a tall wardrobe.

The increased travel is particularly useful in walk-in wardrobes, dressing rooms, high-ceilinged bedrooms, hotels, premium residential interiors and accessible environments where storage capacity needs to be maximised without making clothes difficult to reach.

Up to 3000 mm High-Level Rail Position

Granberg explains that a person of average height can comfortably reach to around 1900 mm. Because the BUTLER 732 lowers the clothes rail by approximately 1120 mm, the upper position of the rail can therefore be as high as approximately 3000 mm above floor level. :contentReference[oaicite:4]{index=4}

This creates the opportunity to use previously inaccessible high-level wardrobe space while retaining the lower part of the wardrobe for another hanging rail, shelving or other storage.

Curved Arms for Extended Reach

The BUTLER 732 uses specially shaped curved lifting arms rather than the straighter arm arrangement used on the BUTLER 730.

The lift is also mounted further forward within the wardrobe. Together, these design features bring the clothes rail further out from the cabinet as it lowers, improving both access and visibility of the garments. :contentReference[oaicite:5]{index=5}

Suitable Wardrobe Widths

The BUTLER 732 is designed for wardrobes from 600 to 1600 mm wide, using two telescopic clothes-rail configurations across the range.

• For wardrobes width (mm): 600–1600
• Wardrobe widths: 600-900mm
• For internal wardrobe dimensions of 545-868mm in width
• Telescopic rail dimensions 453-776mm in width
• Wardrobe widths: 1000-1600mm
• For internal wardrobe dimensions of 945-1568mm in width
• Telescopic rail dimensions 853-1476mm in width

The internal wardrobe width should always be measured before ordering so that the correct telescopic clothes rail can be selected.

Electric Out-and-Down Movement

The BUTLER 732 lowers the clothes rail electrically in front of the wardrobe. The movement is stepless, allowing the user to stop the rail at any suitable position rather than being restricted to fixed upper and lower stopping points.

• Downward travel: Approximately 1118 mm
• Outward travel: Approximately 762 mm
• Movement speed: 47 mm/sec
• Maximum lifting load: 30 kg

Granberg specifies the 732 as an electric wardrobe lift with a motorised clothes rail that is steplessly adjustable 1118 mm downwards and 762 mm outwards. :contentReference[oaicite:6]{index=6}

Integrated Safety Stop

The BUTLER 732 incorporates an integrated safety stop designed to halt movement if the lift encounters an obstruction.

This provides an important additional safety feature, particularly in installations where the clothes rail lowers through occupied wardrobe space. The wardrobe layout must nevertheless be planned carefully to avoid trapping or crushing points against shelving, doors, drawers or other fixed fittings.

Granberg lists an integrated safety stop that halts movement upon collision as one of the principal functions of the BUTLER 732. :contentReference[oaicite:7]{index=7}

Bluetooth Control Included

A compact Bluetooth control button is included as standard. It can be positioned at a convenient and accessible location and mounted using double-sided adhesive tape.

• Bluetooth control button included as standard.
• Black button with white symbols.
• Product Code: 61250-10.
• Diameter: 60 mm.
• Height: 8 mm.
• Can be mounted using double-sided adhesive tape.

A wireless remote control for operating one or more lifting systems is also available as an optional accessory. :contentReference[oaicite:8]{index=8}

Optional Wireless Hand Controls

Optional handheld wireless controls are available where remote operation is preferred or where several BUTLER wardrobe lifts need to be operated from one handset.

• Radio hand control for 1 lifting system – Black – Product Code: 61385-10
• Radio hand control for 2 lifting systems – Black – Product Code: 61387-10
• Radio hand control for 3 lifting systems – Black – Product Code: 61388-10
• Radio hand control for 4 lifting systems – Black – Product Code: 61389-10
• Radio hand control for 5 lifting systems – Black – Product Code: 61390-10

Where a wireless remote is specified, the appropriate receiver is required for each BUTLER lifting system.

Included as Standard

• 1 × Granberg BUTLER 732 electric wardrobe lift.
• Chrome-plated telescopic clothes rail.
• 1 × Control unit with two connection cables.
• 1 × Power supply unit with plug.
• 1 × Bluetooth control button.

The Granberg brochure confirms that the wardrobe lift, control unit, power supply and Bluetooth control button are included as standard equipment. :contentReference[oaicite:9]{index=9}

Finish – Signal White & Natural Aluminium

• Plastic housing: Signal White.
• RAL colour: RAL 9003.
• Arms: Natural anodised aluminium.
• Clothes rail: Chrome plated.

The Signal White (RAL 9003) plastic housings combined with natural anodised aluminium arms provide a clean, light and understated appearance suitable for contemporary wardrobe interiors.

Granberg specifies this finish as plastic housing in RAL 9003 Signal White, natural anodised aluminium arms and chrome-plated clothes rail. :contentReference[oaicite:10]{index=10}

Technical Specification

• Product Code: 732-160-01
• Product: Granberg BUTLER 732
• Product type: High-level electric wardrobe lift
• Finish: Signal White (RAL 9003)
• Plastic housing: Signal White RAL 9003
• Arms: Natural anodised aluminium
• Arm design: Curved
• Clothes rail: Chrome plated
• For wardrobes width (mm): 600–1600
• Wardrobe widths: 600-900mm
• For internal wardrobe dimensions of 545-868mm in width
• Telescopic rail dimensions 453-776mm in width
• Wardrobe widths: 1000-1600mm
• For internal wardrobe dimensions of 945-1568mm in width
• Telescopic rail dimensions 853-1476mm in width
• Movement: Electrically outwards and downwards
• Downward travel: Approximately 1118 mm
• Outward travel: Approximately 762 mm
• Movement speed: 47 mm/sec
• Maximum load on clothes rail: 30 kg
• Electrical supply: 230 V, 50/60 Hz
• Rated current: 2.9 A
• Motor cable length: 1500 mm
• Noise level: 52 dB
• Delivery package dimensions: Approximately 900 × 490 × 90 mm
• Delivered weight: Approximately 18 kg
• Bluetooth control button supplied as standard
• EAN: 7340193124606

The Granberg datasheet confirms the 30 kg maximum load, 47 mm/sec speed, 230 V electrical connection, 1500 mm motor cable, 52 dB noise level and cabinet-width groupings of 600–900 mm and 1000–1600 mm. :contentReference[oaicite:11]{index=11}

Planning & Installation

• Check the wardrobe width and clear internal cabinet width before ordering.
• Select the correct telescopic rail configuration for the wardrobe size.
• Allow sufficient height for the complete upper storage position.
• Allow adequate clearance for the full 1118 mm downward and 762 mm outward movement.
• The wardrobe must be securely anchored to the wall before the lift is operated.
• The cabinet construction must be capable of supporting the concentrated loads from the motor units.
• The wardrobe side panels and fixing points must be sufficiently strong for the installation.
• Wall construction and wardrobe fixings may require reinforcement depending on the project.
• Do not position shelves, doors, handles, drawers or other fittings where they could interfere with the moving lift.
• Avoid creating crushing or trapping points between the lift and fixed furniture or fittings.
• The required wardrobe depth will depend partly on the type and size of clothing being stored.
• The power supply should remain accessible for servicing.
• Installation should be completed by suitably competent installers.

Important Safety Information

The wardrobe must be securely fixed to the building structure. As the BUTLER 732 moves a loaded clothes rail both forwards and downwards, the system creates changing forces on the cabinet and its wall fixings.

The maximum permitted load on the clothes rail is 30 kg. The wardrobe construction, fixings and supporting structure must therefore be capable of safely supporting the loads generated during operation.

The lift must not be installed where its moving components could trap a user against another fixed object, shelf or item of furniture.

Warranty

• 5-year manufacturer warranty when registered in accordance with Granberg's warranty requirements.
• Without registration, the standard 3-year warranty applies.

Granberg specifies a 5-year warranty against manufacturing defects when the lifting system is registered, with a standard 3-year warranty applying without registration. :contentReference[oaicite:12]{index=12}
