Granberg Diago 504 Safety Pack - Create a Custom Safety Trip Panel

Safety pack for the Diago 504 electric wall cabinet lilting system, contains the micro switches and cables needed to create your own custom safety trip panel in the material / colours to match your kitchen installation. Excludes board material.

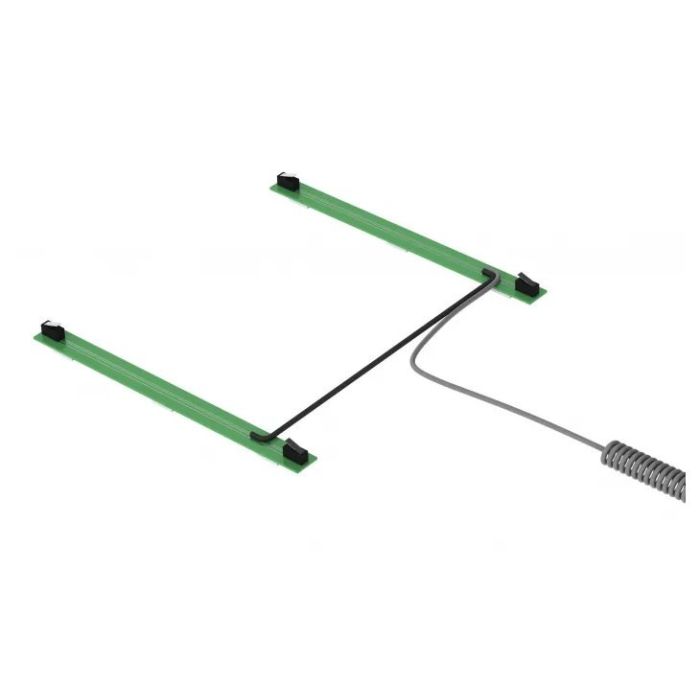

This safety pack contains 4 x micro switches and cables needed to create your own custom safety trip panel, from materials and colours to match your kitchen installation.

The micro switches in the safety trip panel will be activated, if the panel is pressed or hits an obstruction on the work surface i.e. glass, cup or hand. The Diago will rise upwards until the micro switches are deactivated.

The safety stop panel should be fixed to the underside of your wall cabinet(s) in accordance with the assembly instructions.

Compatible with the Diago 504 systems, all installation instructions and cutting measurements are supplied for routering into the your board surface.

Minimum / Maximum dimensions of the panel (not included):

  • Board thickness required (mm): 12-16
  • Suits board width Min. / Max. (mm): 200-800
  • Suits board depth Min. / Max. (mm): 250-400

Warranty:

  • 2 year manufacturer warranty
Technical Information
Manufacturer Granberg
Compatible Model Diago 504
Stock status In stock
Delivery timeNext working day if ordered by 2pm
Returns Status Returnable in 14 days
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Safety pack for the Diago 504 electric wall cabinet lilting system, contains the micro switches and cables needed to create your own custom safety trip panel in the material / colours to match your kitchen installation. Excludes board material.
In stock
£225.48 £187.90
Product Code: 50431-0000
Availability In stock (Info)
Expected delivery Next working day if ordered by 2pm
VAT Exemption is available on this product - deducted at Checkout (Info)
Download PDF Download PDF
