Granberg Electric Washbasin Lift BASICLINE 433-11-20 - with 190mm Lever Tap (TMV3 Approved) - White

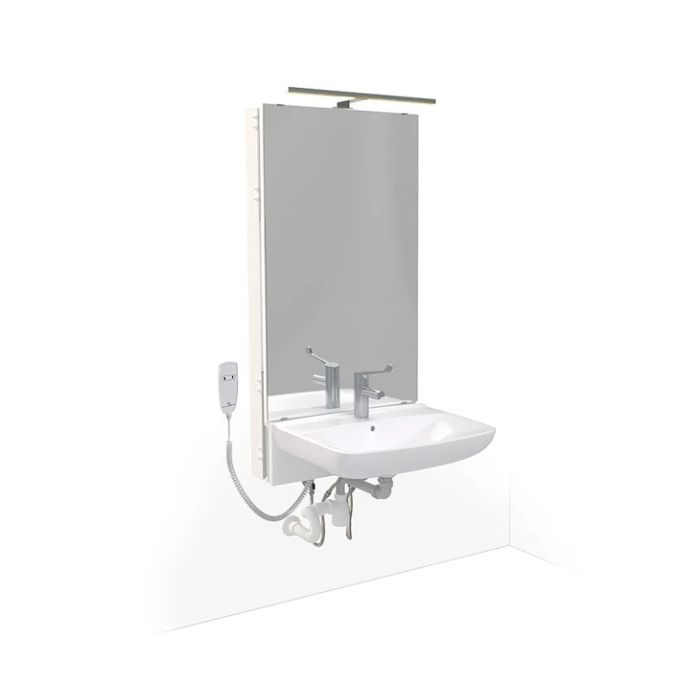

The Granberg BASICLINE 433-11-20 is a wall-mounted, electrically height-adjustable washbasin system with an integrated mirror and overhead LED lighting. Designed for accessible bathrooms, the system provides 250 mm of continuous vertical adjustment, allowing the washbasin, mirror and lighting to move together to accommodate seated and standing users.

This model includes the Granberg 425-011 compact porcelain washbasin, measuring 600 x 445 mm, with an integrated overflow and plug. Its reduced projection makes it suitable for children and bathrooms where space is limited. The system provides 600 mm of leg room beneath the washbasin, supporting access for seated users.

The BASICLINE 433-11-20 is supplied with a Granberg 425-120 sequential thermostatic mixer tap featuring an extended 190 mm operating lever. The mixer tap is TMV3 and WRAS approved, providing thermostatic temperature control for accessible bathrooms, care environments and other facilities where controlled water temperatures are required.

The integrated mirror measures 1000 x 600 mm and moves in tandem with the washbasin, helping maintain a suitable viewing position as the height changes. The overhead LED lighting provides 4000 K illumination and is designed for connection to an external lighting switch.

Height adjustment is controlled using the supplied wired hand controller. An integrated safety switch stops downward movement if the washbasin encounters an obstruction. Flexible plumbing connections are accommodated within the lifting assembly.

Key Features & Benefits

• Wall-mounted electric washbasin system with integrated mirror and LED lighting.
• 250 mm of continuous vertical height adjustment.
• Washbasin, mirror and lighting move together as one assembly.
• Suitable for seated and standing users, subject to individual access requirements.
• Compact Granberg 425-011 porcelain washbasin measuring 600 x 445 mm.
• Washbasin supplied with integrated overflow and plug.
• Overall system width of 620 mm and projection of 600 mm.
• 600 mm of leg room beneath the washbasin.
• Granberg 425-120 sequential thermostatic mixer tap with extended 190 mm operating lever.
• TMV3-approved thermostatic mixer tap with WRAS approval.
• 1000 x 600 mm silver-coated glass mirror with polished edges.
• Integrated 12 V LED lighting, 6–8 W, with 4000 K colour temperature.
• LED lighting designed for connection to an external switch.
• Wired hand controller with IP65 protection rating and support hook.
• Integrated safety switch stops downward movement when an obstruction is detected.
• Flexible plumbing connections accommodated within the lifting assembly.
• Maximum washbasin load of 50 kg.

Included Components

• BASICLINE 433 motorised washbasin lift with integrated mirror and LED lighting.
• 425-011 compact porcelain washbasin with overflow and plug.
• 425-120 sequential TMV3 and WRAS-approved mixer tap with 190 mm lever.
• 425-410 wired hand controller.
• Integrated obstruction-sensitive safety switch.
• 425-331 flexible waste hose and water trap.
• Pair of flexible water supply hoses.

Technical Specifications

• Manufacturer: Granberg
• Product code: 433-11-20
• Range: BASICLINE 433
• Finish: White
• Operation: Electric, continuously adjustable
• Mounting: Wall-mounted
• Overall system width: 620 mm
• Overall system depth: 600 mm
• Overall height when mounted at recommended height: 1703–1953 mm
• Washbasin dimensions: 600 x 445 mm
• Washbasin material: Porcelain
• Washbasin design: Compact, with integrated overflow and plug
• Washbasin height above floor: 640–890 mm
• Height adjustment: 250 mm
• Leg room beneath washbasin: 600 mm
• Distance from basin front edge to mixer tap lever: 175 mm (I4L published specification)
• Mixer tap: Granberg 425-120, sequential thermostatic
• Mixer tap lever length: 190 mm
• Mixer tap approvals: TMV3 and WRAS
• Mirror dimensions: 1000 x 600 x 4 mm
• Mirror material: Silver-coated float glass with polished edges
• Lighting: LED, 12 V, 6–8 W, 4000 K
• Lighting connection: External switch
• Lighting material: Aluminium/plastic, chrome finish
• Lighting transformer input: 220–240 V
• Lighting transformer output: 12 V
• Adjustment speed: 18 mm/second
• Lifting force: 100 kg
• Maximum washbasin load: 50 kg
• Controller: Wired hand control, IP65 rated
• Electrical supply: 230 V, maximum 1.5 A
• Lift protection rating: IPX4
• Safety system: Integrated obstruction-sensitive safety switch
• Back panel: White melamine-coated particleboard W899 with 2 mm ABS edging
• Mounting plate: Powder-coated aluminium-zinc coated steel, white RAL 9010
• Safety switch and metal components: Powder-coated steel sheet
• Plumbing: Flexible water supply hoses and waste hose with water trap

Warranty

Granberg provides a 5-year manufacturer's warranty against manufacturing defects when the product is registered on the Granberg website. Without registration, the standard manufacturer's warranty is 3 years.
