Control the lift from the hand unit
Hold the appropriate button to raise or lower the basin, then release it at the most comfortable working height.
Granberg Basicline 433 with Mirror & Light - Wall | Electric
Granberg Basicline 433 with Mirror & Light - Wall | Electric
Height Adjustable Washbasin Lifts
Granberg Basicline 433 with Mirror & Light - Wall | Electric

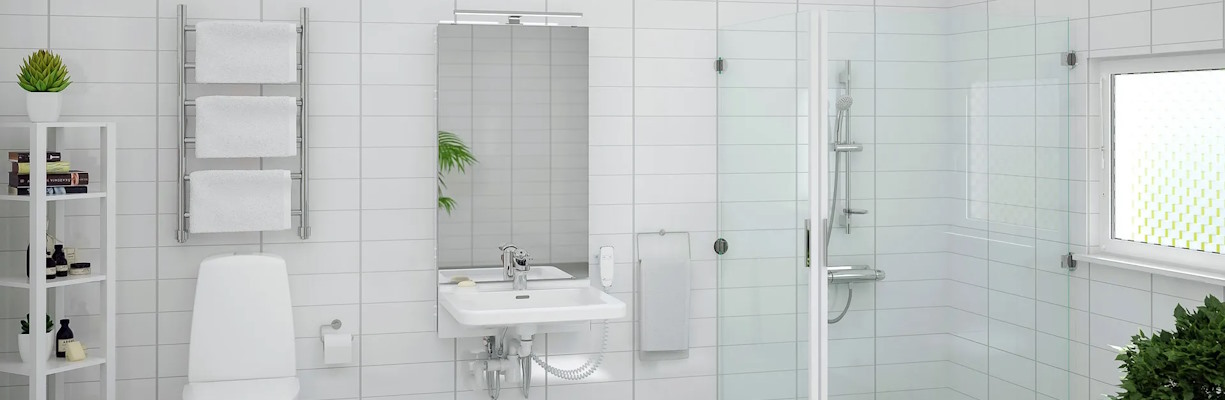

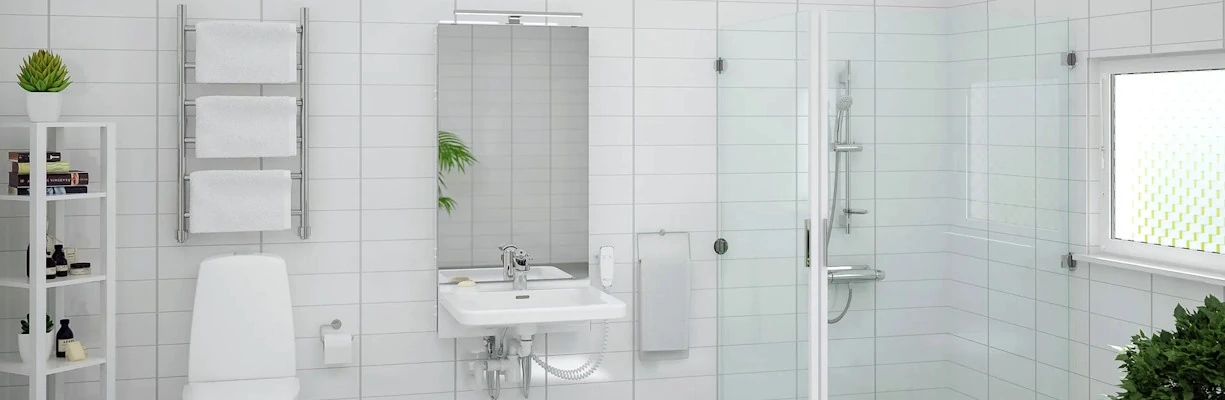

A complete wall-mounted electric washbasin system in which the basin, mirror and overhead LED lighting move together through 250mm of stepless height adjustment.
Electric adjustment with the mirror built into the system
Change the washbasin height without leaving the mirror behind
In a multi-user bathroom, lowering a washbasin beneath a fixed mirror can leave the reflection badly positioned for a seated user. Basicline 433 avoids that problem by carrying the mirror and overhead LED light with the basin as it moves.
The result is a compact wall-mounted system in which the principal washing and viewing zone remains coordinated across the full electric adjustment range.
One coordinated moving assembly
The mirror and light follow every change in basin height
The mirror is fixed to the lifting assembly rather than to the bathroom wall independently. The overhead LED bar is carried with it, so the relationship between basin, reflection and task lighting stays consistent as the user raises or lowers the system.
The LED light is designed to connect to an external room lighting switch, while everyday height adjustment is made using the wired hand controller.
Unlike the enclosed pedestal arrangement on the 415, the 433 retains open space beneath the basin for leg room and flexible plumbing connections.
Designed for frequent adjustment
Press, hold and stop at the working height you need
Basicline 433 uses electric stepless movement rather than fixed height positions. That makes it particularly useful in bathrooms shared by seated and standing users, or wherever the preferred basin height changes regularly.
Use the full 250mm movement range
The lift is not limited to preset steps, allowing finer positioning for different wheelchair, seated and standing users.
Protect downward movement
Complete current 433 basin systems include a safety stop that interrupts descent if the assembly encounters an obstruction beneath the washbasin.
The Basicline 433-0 lifting module is also listed separately for
custom specifications. Check the exact safety-system content when
specifying the bare module rather than a complete basin package.
Four complete basin configurations
The basin shape changes projection, reach and grip
The current Basicline 433 family is built around four Granberg washbasins. The lift mechanism and 250mm movement remain the same; the important difference is how far the basin projects and how its front edge is shaped for the user.
Accessible round basin with a tapered front edge and generous forward reach.
Accessible porcelain basin with thicker rounded edges and useful flat surfaces.
Compact configuration intended for children or bathrooms where projection is limited.
Shallow solid-surface basin with integrated gripping areas around the front edge.
Bathroom Area
Operate the Basicline 433 in our showroom
Our Bathroom Area displays a working Basicline 433-10-05 alongside the manual 403 and gas-assisted 406. It is the most direct way to compare frequent electric movement with the two manual adjustment approaches in the same room.
Useful before choosing
Understand basin lifts and electric adjustment
What Is a Basin Lift?
Learn how height-adjustable washbasins work and what movement, basin design and installation details should be considered around the user.
Read the basin lift guide →What Is an Electric Basin Lift?
Compare Granberg's electric systems and understand when frequent push-button adjustment makes more sense than a manual or gas-assisted basin lift.
Read the electric basin guide →
Made by Granberg
Accessible living engineering from Sweden
Granberg develops manual, gas-assisted and electric height-adjustable washbasin systems so the movement, basin design and surrounding bathroom can be matched to the people using the space.
Explore Granberg →Washbasin specification support
Is an integrated moving mirror the right choice for your bathroom?
Tell us who will use the basin, how frequently its height needs to change and how the mirror and plumbing need to work within the room. We can help compare the Basicline 433 with the fixed-mirror 415 and the more design-led Designline 417.
-
