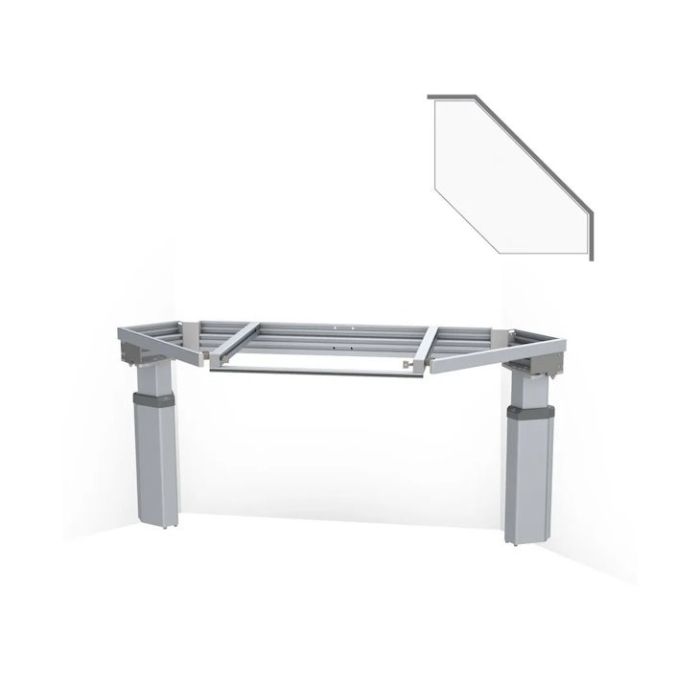

Granberg Kitchen Worktop Lift Baselift Corner 6302LA, 40 mm Front, 45°- 45°, Wall-mounted

The Granberg Baselift Corner 6302LA is an electric, wall-mounted kitchen worktop lifting system designed to provide an accessible and flexible workspace for both seated and standing users.

Featuring a 45° front edge and a 45° corner at the wall, the Baselift makes effective use of kitchen corner space. The 1045 x 1045 mm corner module provides 300 mm of smooth, stepless electric height adjustment, allowing the worktop to move between 700 and 1000 mm above floor level, excluding the worktop thickness.

The LA model features Granberg's shallow 40 mm high aluminium compartment frame, making it particularly suitable for installing a compatible electric cooking hob. Its low-profile construction provides an attractive, discreet installation while maintaining open leg and knee space beneath the worktop.

The aluminium frame is supplied assembled, with laterally movable and angle-adjustable consoles to simplify installation. The 6302LA can also be extended on either or both sides using compatible Granberg Plusmodules, creating a larger height adjustable kitchen worktop. Each side can be extended by up to 2400 mm.

Key benefits:

• Electric, wall-mounted corner kitchen worktop lifting system
• Suitable for accessible kitchens used by seated and standing users
• 45° front edge and 45° corner at the wall
• Corner module dimensions: 1045 x 1045 mm
• 300 mm of continuous, stepless electric height adjustment
• Worktop height adjustable from 700 to 1000 mm above floor level, excluding worktop thickness
• Shallow 40 mm high aluminium compartment frame
• Suitable for installing a compatible electric cooking hob
• Open space beneath the worktop provides leg and knee clearance
• Maximum lifting force of 100 kg
• Adjustable frame depth from 560 to 590 mm
• Optional Granberg Plusmodules extend either or both sides by up to 2400 mm per side
• Aluminium frame with laterally movable and angle-adjustable consoles
• Frame supplied assembled to simplify installation
• Plug-and-play electronic and motor system
• Factory-fitted safety stop strip beneath the front edge
• Brackets and screws for installing fascia fronts and the worktop included

Granberg Plusmodules:

• Compatible Plusmodules allow the corner worktop lift to be extended on the left, right or both sides
• Each Plusmodule incorporates an additional lifting leg to support the extended worktop
• Left-hand extension: Granberg Baselift Plusmodule 6305LA
• Right-hand extension: Granberg Baselift Plusmodule 6306LA
• Available in a range of lengths up to 2400 mm per side
• Connected Plusmodules operate together with the corner worktop lifting system
• Plusmodules are ordered separately to suit the required kitchen layout
• Please contact us for assistance with selecting the correct extension modules

Integrated safety system:

• Factory-fitted safety stop strip positioned beneath the front edge of the worktop
• If the safety strip contacts an obstruction during lowering, the lifting system stops
• Optional side safety strips and protective panels are available for installations requiring additional protection
• Additional protection may be necessary where the moving worktop is adjacent to fixed furniture or other potential trapping points
• Safety requirements and clearances should be checked against Granberg's installation instructions

Choice of controls:

• Granberg Corded Mini Touch Control Buttons for Baselift - Product Code: 61318
• Granberg Radio Hand Control for 1 lifting system, Black - Product Code: 61385-10
• Granberg Radio Hand Control for 2 lifting systems, Black - Product Code: 61387-10
• Granberg Safety Key Lock for wired controls only - Product Code: 61360
• Wired Mini control buttons and the Safety Key Lock can be factory fitted when ordered with a compatible aluminium fascia front
• Please specify the preferred control position when ordering

Optional 40 mm aluminium fascia front - factory fitted:

• None - aluminium compartment frame supplied without an additional fascia front
• Anodised Aluminium
• White Powder Coated Aluminium - RAL 9003
• Anthracite
• The optional fascia front provides a coordinated finish to the shallow compartment frame
• Compatible wired controls and Safety Key Lock can be factory fitted to simplify installation on site

Optional accessories:

• Granberg 6305LA left-hand Plusmodules
• Granberg 6306LA right-hand Plusmodules
• Compatible electric cooking hobs
• Aluminium fascia fronts in a choice of finishes
• Cover panels and fitting kits to conceal lifting legs and services
• Additional safety strips and protective panels
• Height adjustment stroke limiter
• Mobile base cabinets for flexible under-worktop storage
• Please refer to the PDF Downloads, Installation Guides and compatible accessories for further information

Technical details:

• Manufacturer: Granberg
• Model: Baselift Corner 6302LA
• Manufacturer Product Code: 6302LA-1045
• EAN: 7340193103540
• Overall corner module dimensions (mm): 1045 x 1045
• Free space for electric cooking hob, W x D (mm): 568 x 505
• Installation: Wall-mounted
• Corner configuration: 45° front edge and 45° corner at the wall
• Height adjustment: Motor-driven and stepless
• Adjustment range (mm): 300
• Worktop height range (mm): 700-1000, excluding worktop
• Adjustment speed (mm/sec): 30
• Maximum lifting force (kg): 100
• Maximum lifting force (lbs): Approximately 220
• Electrical connection: 2 x 230 V plugs, maximum 5 A each
• Operation: Recessed-mounted wired control buttons or radio control
• Safety: Factory-fitted front safety stop strip
• IP rating: IP20
• Frame depth from wall (mm): 560-590
• Suitable worktop depth (mm): 565-630
• Worktop should be 15 mm shallower than worktops on adjoining fixed cabinets
• Front compartment frame height (mm): 40
• Frame material: Aluminium
• Required clearance to adjoining surfaces (mm): 5
• Required gap to wall for tiling (mm): 15
• Tiling: From 700 mm above floor level, or alternatively down to floor level
• Fittings supplied: Brackets and screws for installing fascia fronts and worktop

Cover panels:

• Granberg cover panels are available separately to conceal the lifting mechanisms and services beneath the worktop
• Two cover panels are required for the standard corner module
• Compatible cover panel fitting kits are ordered separately
• Customer-supplied cover panels can be manufactured to coordinate with the kitchen cabinetry
• For customer-supplied panels, the required width is the worktop width minus 10 mm
• Customer-supplied panel height (mm): 438
• Customer-supplied panel thickness (mm): 12-20
• Please refer to Granberg's installation drawings before manufacturing bespoke cover panels

CAD design service:

Independent 4 Life offers a CAD design service to help plan accessible kitchen installations using Granberg height adjustable worktop and wall cabinet lifting systems. Please contact us to discuss your proposed kitchen layout, worktop dimensions, lifting system configuration and accessory requirements.

Please note:

• The Granberg Baselift Corner 6302LA is manufactured to order
• Due to the bespoke nature of this product, it is non-returnable
• Worktops, cooking hobs, fascia fronts, controls and additional accessories should be selected to suit the installation requirements

Manufacturer warranty:

• 5-year warranty against manufacturing defects when registered with Granberg
• Standard 3-year manufacturer warranty applies without registration
