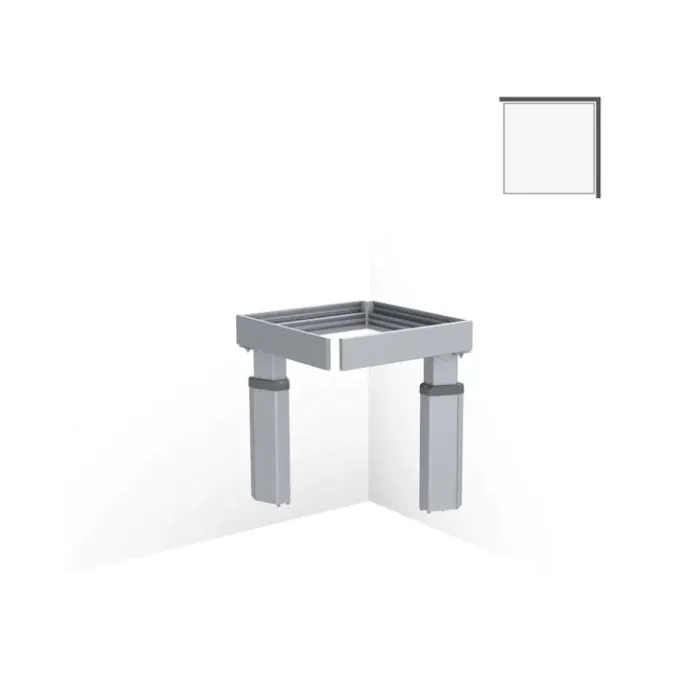

Granberg Kitchen Worktop Lift Baselift Corner 6303HA, 103 mm Front, 90°- 90°, Wall-mounted

The Granberg Baselift Corner 6303HA is an electric, wall-mounted kitchen corner worktop lifting module designed to create a flexible, height adjustable workspace for seated and standing users.

Featuring a 90° front edge and a 90° corner at the wall, the compact 595 x 595 mm module provides the central corner connection for an extended kitchen worktop installation. It offers 300 mm of smooth, stepless electric height adjustment, allowing the worktop to move between 700 and 1000 mm above floor level, excluding worktop thickness.

The 6303HA features Granberg's 103 mm high aluminium frame and is designed to be combined with compatible Baselift Plusmodules. Unlike the adjoining Plusmodules, the corner module does not have separate front fascia panels. The fascia fronts, compatible kitchen sinks, cooking hobs and drawers are incorporated into the extended worktop sections where required.

Granberg Plusmodules can extend either or both sides of the corner by up to 2400 mm per side. The wall-mounted design provides open space beneath the worktop for improved knee and leg clearance.

Key benefits:

• Electric, wall-mounted corner kitchen worktop lifting module
• Designed for accessible kitchens used by seated and standing users
• 90° front edge and 90° corner at the wall
• Compact corner module measuring 595 x 595 mm
• 103 mm high aluminium frame
• 300 mm of continuous, stepless electric height adjustment
• Worktop height adjustable from 700 to 1000 mm above floor level, excluding worktop thickness
• Designed for use with compatible Granberg Baselift Plusmodules
• Each side can be extended by up to 2400 mm using optional Plusmodules
• No separate fascia fronts are required for the corner module
• Maximum lifting force of 100 kg
• Discreet wall-mounted installation
• Open space beneath the worktop provides knee and leg clearance
• Adjustable frame depth from 560 to 590 mm
• Aluminium frame with laterally movable and angle-adjustable consoles
• Frame supplied assembled to simplify installation
• Plug-and-play electronic and motor system
• Factory-fitted safety stop strip beneath the front edge
• Brackets and screws for installing the worktop included

Granberg Plusmodules:

• The 6303HA corner module is designed to be configured with compatible Granberg Plusmodules
• Left-hand extension: Granberg Baselift Plusmodule 6305HA
• Right-hand extension: Granberg Baselift Plusmodule 6306HA
• Available in lengths from 400 to 2400 mm per side
• Plusmodules provide the extended worktop frames and support for the adjoining worktop sections
• Compatible fascia fronts, kitchen sinks, cooking hobs and drawers can be incorporated into suitable Plusmodule sections
• Connected Plusmodules operate together with the corner lifting system
• Plusmodules and their associated accessories are ordered separately
• Please contact us for assistance with selecting the correct extension modules and configuration

Integrated safety system:

• Factory-fitted safety stop strip positioned beneath the front edge of the corner worktop
• If the safety strip contacts an obstruction during lowering, the lifting system stops
• Additional safety protection is required where the extended worktop presents a potential trapping or entrapment risk
• Compatible safety strips and protective panels are available for adjoining Plusmodules
• Safety requirements and clearances should be checked against Granberg's installation instructions

Choice of controls:

• Granberg Corded Control Button, Black - Product Code: 61320-10
• Granberg Corded Mini Touch Control Buttons - Product Code: 61318
• Granberg Radio Hand Control for 1 lifting system, Black - Product Code: 61385-10
• Granberg Radio Hand Control for 2 lifting systems, Black - Product Code: 61387-10
• Granberg Safety Key Lock for wired controls only - Product Code: 61360
• Control buttons are selected as part of the complete lifting system configuration
• Where wired controls are required, their mounting position should be agreed for the adjoining worktop or Plusmodule fascia

Optional accessories:

• Granberg 6305HA left-hand Plusmodules
• Granberg 6306HA right-hand Plusmodules
• Compatible fascia fronts for adjoining Plusmodules
• Kitchen sinks, cooking hobs and drawers for suitable extended worktop sections
• Wired control buttons and wireless hand controls
• Safety Key Lock for wired controls
• Cover panels and fitting kits to conceal lifting mechanisms and services
• Additional safety strips and protective panels
• Height adjustment stroke limiter
• Mobile base cabinets for flexible under-worktop storage
• Please refer to the PDF Downloads, Installation Guides and compatible accessories for further information

Technical details:

• Manufacturer: Granberg
• Model: Baselift Corner 6303HA
• Manufacturer Product Code: 6303HA-0595
• EAN: 7340193103564
• Overall corner module dimensions (mm): 595 x 595
• Installation: Wall-mounted
• Corner configuration: 90° front edge and 90° corner at the wall
• Height adjustment: Motor-driven and stepless
• Adjustment range (mm): 300
• Worktop height range (mm): 700-1000, excluding worktop
• Adjustment speed (mm/sec): 30
• Maximum lifting force (kg): 100
• Maximum lifting force (lbs): Approximately 220
• Electrical connection: 2 x 230 V plugs, maximum 5 A each
• Operation: Recessed-mounted wired control buttons or radio control
• Safety: Factory-fitted front safety stop strip
• IP rating: IP20
• Frame depth from wall (mm): 560-590
• Suitable worktop depth (mm): 565-630
• Worktop should be 15 mm shallower than worktops on adjoining fixed cabinets
• Frame height (mm): 103
• Frame material: Aluminium
• Required clearance to adjoining surfaces (mm): 5
• Required gap to wall for tiling (mm): 15
• Tiling: From 700 mm above floor level, or alternatively down to floor level
• Fittings supplied: Brackets for fronts and worktop

Cover panels:

• Granberg cover panels are available separately to conceal lifting mechanisms and services beneath the worktop
• Two cover panels are specified for the corner lifting module
• Compatible cover panel fitting kits are ordered separately
• Customer-supplied panel height (mm): 438
• Customer-supplied panel thickness (mm): 12-20
• Please refer to Granberg's installation drawings before manufacturing bespoke cover panels

CAD design service:

Independent 4 Life offers a CAD design service to help plan accessible kitchen installations using Granberg height adjustable worktop and wall cabinet lifting systems. Please contact us to discuss your proposed kitchen layout, worktop dimensions, Plusmodule configuration and accessory requirements.

Installation requirements:

• The Baselift Corner 6303HA must be securely mounted to a suitable wall structure
• Wall construction, fixing suitability and installation clearances should be checked before ordering
• Allow suitable space for electrical connections and any plumbing services associated with the extended installation
• Installation should be carried out in accordance with Granberg's installation instructions

Please note:

• The Granberg Baselift Corner 6303HA is manufactured to order
• Due to the bespoke nature of this product, it is non-returnable
• The corner module does not include Plusmodules, fascia fronts, worktops, sinks, cooking hobs or drawers
• Compatible Plusmodules and accessories must be specified separately to complete the required kitchen layout

Manufacturer warranty:

• 5-year warranty against manufacturing defects when registered with Granberg
• Standard 3-year manufacturer warranty applies without registration
