Granberg Manual Height Adjustable Washbasin - BASICLINE 401-11-05 - Incl. Mixer Tap with 150 mm Lever
Wall mounted height adjustable washbasin bracket. 25 0mm height adjustment, in 5 mm steps with hook rail and bolt fixings for occasional use. Includes 425-011 washbasin with overflow and flexible drain hose with water trap. Integrated mirror and lighting. Includes 150 mm lever tap, which can upgraded to the 150 mm lever tap with hand shower with 1.5m hose, Infrared mixer tap with temperature control or the Granberg (WRAS approved) TMV3 sequential 190 mm lever tap.

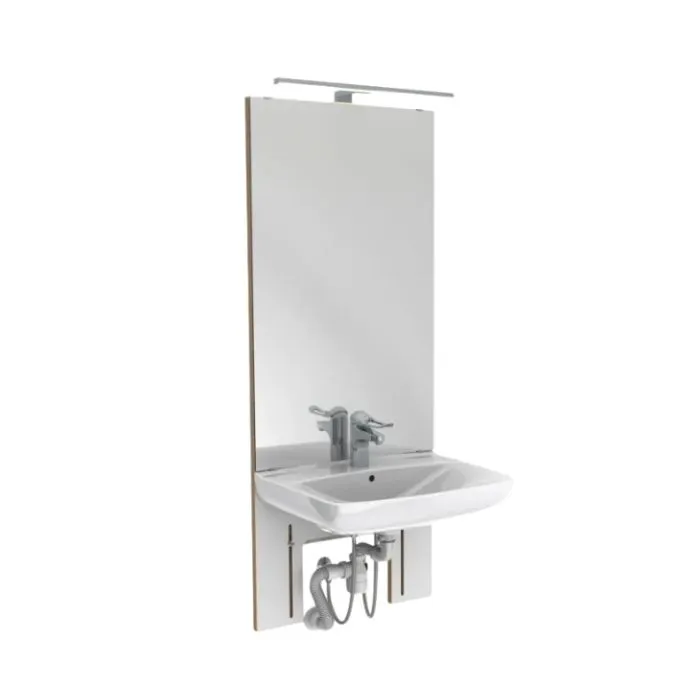

The Granberg Basicline 401 is a wall mounted manual washbasin bracket with integrated mirror and LED lighting.
Stylish and discreet, the entire system can be manually moved to the required height in 50 mm increments and locked into place.
This version includes the 425-011 washbasin.
Key benefits:
- Complete height adjustable washbasin system with mirror and lighting
- Discreet styling
- Compact washbasin for children or confined spaces
- Manual - intended for environments where only occasional height adjustment is required
- Provides 250 mm of adjustment in 50 mm increments, via hooks on back of panel and 2x securing bolts at bottom of panel
- Depth of leg room under the washbasin 482 mm
- Includes mirror and lighting which move in tandem with the washbasin
Includes:
- Granberg Basicline 401 washbasin bracket with mirror and lighting
- Granberg 425-011 porcelain washbasin with overflow and plug
- Granberg 425-331 flexible drain hose with water trap
- Granberg FMM 425-105 mixer tap (Shown product images), 150mm lever and PEX hoses
Optional taps with 2x 500mm PEX flexible hoses:
- Granberg 425-120 sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
- Please note: The FMM taps are not UK - TMV rated or WRAS approved for commercial applications
- Granberg FMM 425-106 mixer tap, 150 mm lever, 1.5m hose hand shower and PEX hoses
- Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses
Technical details:
- Total width (mm): 600
- Depth of bracket (mm): 37
- Height when installed at the recommended height (mm): 1705-1955 (adjustable)
- Total depth from front of basin to wall (mm): 482
- Width of washbasin (mm): 600
- Depth of washbasin (mm): 445
- Distance from front edge to mixer tap lever (mm): 225
- Height from top of washbasin to floor when installed at the recommended height (mm): 643-893 (adjustable)
- Max load (kg): 100
Lighting technical details:
- Lighting: Aluminium/plastic, Colour: Chrome
- LED lighting 12V / 6-8W, 4000K (connected to an external switch)
- Transformer: Primary (in) 220-240 V, Secondary (out) 12V
Warranty:
- 3 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 401 |
| Bracket Operation | Manual |
| Bracket Adjustment | Bolt & Hook Adjustment |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-015 |
| Bracket Mounting | Wall |
| Safety Stop | No |
| Stock status | In stock |
|---|---|
| Delivery time | 1-2 working days |
| Returns Status | Returnable in 14 days |
