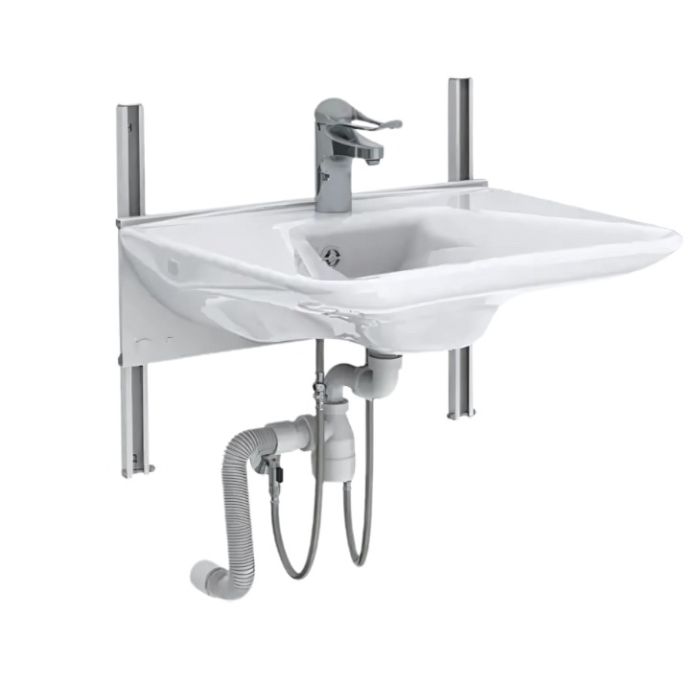

Granberg Manual Height Adjustable Washbasin - BASICLINE 403-01-05 - Incl. Mixer Tap with 150 mm Lever - White
Wall mounted height adjustable washbasin lift. 300 mm step-less height adjustment with bolt fixings for occasional use. Includes 425-001 washbasin with overflow and flexible drain hose with water trap. Includes 150 mm lever tap, which can upgraded to the 150 mm lever tap with hand shower with 1.5m hose, Infrared mixer tap with temperature control or the Granberg (WRAS approved) TMV3 sequential 190 mm lever tap.
The Granberg Basicline 403 is a wall mounted manual washbasin lift, with a 150 mm lever tap.
Stylish and discreet, the entire system can be manually moved to the required height and locked into place.
This version includes the 425-001 washbasin.
Key benefits:
- Complete height adjustable washbasin system
- Wheelchair accessible washbasin with shallow bowl and concave front edge
- Manual adjustment using a socket wrench
- Track design gives it step-less 300 mm height adjustment
- Depth of leg room under the washbasin 526 mm
- Free space below the unit for plumbing connections
- Can be installed beneath a mirror or cabinet
Includes:
- Granberg Basicline 403-1 washbasin bracket
- Granberg 425-001 porcelain washbasin with overflow and plug
- Granberg 425-331 flexible drain hose with water trap
- Granberg FMM 425-105 mixer tap (Shown in product images), 150 mm lever and PEX hoses
Optional tap upgrades with 2x 500 mm PEX flexible hoses:
- Granberg 425-120 sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
- Granberg FMM 425-106 mixer tap, 150mm lever, 1.5m hose hand shower and PEX hoses
- Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses
Please note:The FMM taps are not UK - TMV rated or WRAS approved for commercial applications
Technical details:
- Total width (mm): 600
- Height of wall bracket (mm): 508
- Depth of wall bracket (mm): 38
- Total depth from front of washbasin to wall (mm): 526
- Width of washbasin (mm): 600
- Depth of washbasin (mm): 490
- Distance from front edge to tap lever (mm): 265
- Height from top of washbasin to floor when mounted at the recommended height (mm): 600-900 (adjustable)
- Max load (kg): 100
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 403 |
| Bracket Operation | Manual |
| Bracket Adjustment | Bolt Adjustment |
| Height Adjustment (mm) | 300 |
| Bracket Mounting | Wall |
| Safety Stop | No |
| Stock status | End of Line - Only 1 Left |
|---|---|
| Delivery time | 1-2 working days |
| Returns Status | Returnable in 14 days |
