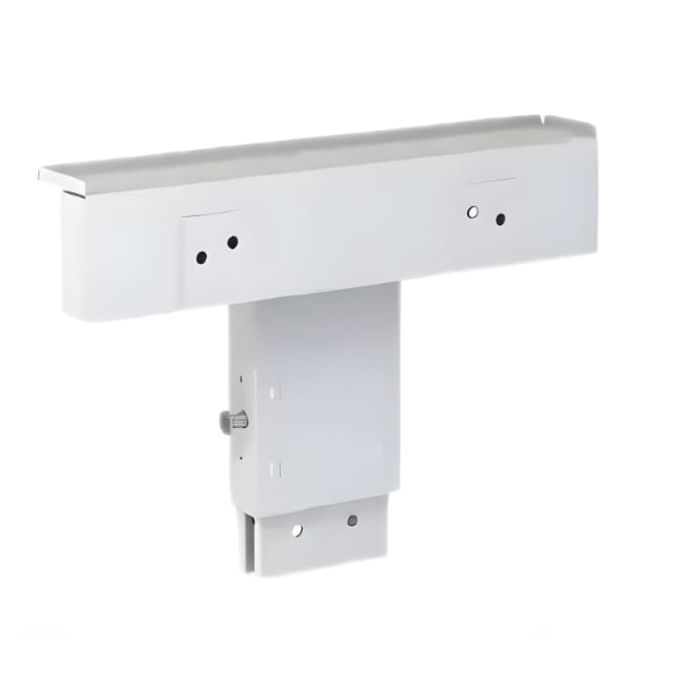

Granberg Manually Adjustable Washbasin Lift with Gas Spring - BASICLINE 406-1 - White
Complete height adjustable washbasin bracket. Manually adjustable with gas assistance, 190 mm of adjustment, in 12 mm increments, via a left hand mounted toggle on the bracket. 120 mm storage shelf above the top of the bracket and behind the washbasin. White finish. Suitable for situations where the height is only occasionally adjusted.
The Granberg Basicline 406-1 is a height adjustable bracket mount for washbasins.
Manually adjustable with gas spring assistance, it is ideal for situations where the height is only occasionally adjusted.
Key benefits:
- Height adjustable bracket for washbasins
- Manual operation with gas assisted spring - for occasional height adjustments
- Bracket provides 190 mm of adjustment in 12 mm increments
- Practical storage shelf behind the washbasin 120 mm deep
- Free space below the unit for plumbing connections
- Can be installed beneath a mirror or cabinet
- The system can be completed with a washbasin and tap (available separately)
Technical details:
- Total width (mm): 602
- Height adjustment range (mm): 190
- Height of wall bracket (mm): 120
- Depth of wall bracket (mm): 110
- Washbasin centre-to-centre fixings (mm): 280 or 350
- The adjustment toggle, is left hand mounted (this cannot be changed)
- Note: Assistance is required to push the rear of the washbasin on the downward stroke
Washbasin:
- Max. weight (kg): 12-18
- Max. width (mm): 600
- Max. depth (mm): 600
- Washbasin centre-to-centre fixings (mm): 280 or 350
Optional:
- 425-311 - 2x Flexible water hoses (3/8”) - 500 mm
- 425-331 - Flexible drain hose with water trap
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 406 |
| Bracket Operation | Gas Assisted |
| Bracket Adjustment | Manual Pull-out Button |
| Height Adjustment (mm) | 190 |
| For Washbasin Range | BASICLINE 425-003, BASICLINE 425-010, BASICLINE 425-011, BASICLINE 425-015 |
| Bracket Mounting | Wall |
| Safety Stop | No |
| Stock status | Available to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Returnable in 14 days |
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code:
406-1
Available to order (Info)
7-10 working days VAT Exemption is available on this product - deducted at Checkout (Info)
Complete height adjustable washbasin bracket. Manually adjustable with gas assistance, 190 mm of adjustment, in 12 mm increments, via a left hand mounted toggle on the bracket. 120 mm storage shelf above the top of the bracket and behind the washbasin. White finish. Suitable for situations where the height is only occasionally adjusted.
In stock
£1,020.00
£850.00
