Granberg Manually Adjustable Washbasin with Gas Spring BASICLINE 406-10-05 - Incl. Mixer Tap with 150 mm Lever - White
Complete height adjustable washbasin bracket. Manually adjustable with gas assistance, 190 mm of adjustment, in 12 mm increments, via a left hand mounted toggle on the bracket. 120 mm storage shelf above the top of the bracket and behind the washbasin. White finish. Includes 425-010 washbasin with overflow and plug. Includes 150 mm lever tap, which can upgraded to the 150 mm lever tap with hand shower with 1.5m hose, Infrared mixer tap with temperature control or the Granberg (WRAS approved) TMV3 sequential 190 mm lever tap.

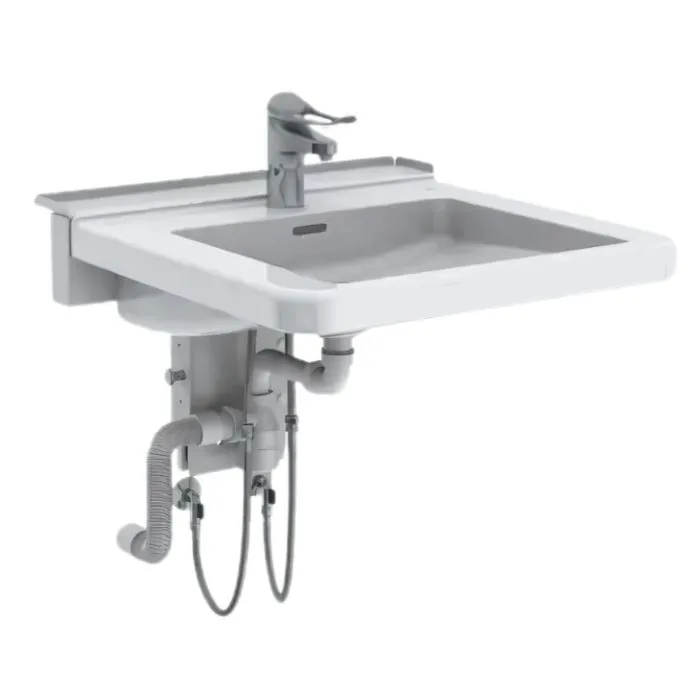

The Granberg Basicline 406 is a wall mounted manual washbasin lift with gas spring with a rear shelf.
Stylish and discreet, the entire system can be manually moved to the required height and locked into place.
This version includes the 425-010 washbasin, with a 150 mm lever tap.
Key benefits:
- Complete height adjustable washbasin system
- Manual operation with gas spring - for occasional height adjustments
- Bracket provides 190 mm of adjustment in 12 mm increments
- Wheelchair accessible washbasin with thick edges and rounded corners
- Depth of leg room under the washbasin 660 mm
- Practical storage shelf behind the washbasin 120 mm deep
- Free space below the unit for plumbing connections
- Low level (can be installed beneath a mirror or cabinet)
Includes:
- Granberg Basicline 406 washbasin lift
- Granberg 425-010 porcelain washbasin with overflow and plug
- Flexible drain hose with water trap 425-331
- Granberg FMM 425-105 mixer tap (Shown in product images), 150 mm lever and PEX hoses
Optional tap upgrades with 2x 500 mm PEX flexible hoses:
- Granberg 425-120 sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
- Granberg FMM 425-106 mixer tap, 150 mm lever, 1.5m hose hand shower and PEX hoses
- Granberg FMM 425-110 infrared mixer tap (6V battery), temperature control and PEX hoses
Please note:The FMM taps are not UK - TMV rated or WRAS approved for commercial applications
Technical details:
- Width (mm): 602
- Height when mounted at the recommended height (mm): 652 - 842 (adjustable)
- Total depth from front of washbasin to wall (mm): 660
- Width of washbasin (mm): 600
- Depth of washbasin (mm): 550
- Distance from front edge to mixer tap lever (mm): 330
- Height from top of washbasin to floor when mounted at the recommended height (mm): 673-863 (adjustable)
- Note: Assistance is required to push the rear of the washbasin on the downward stroke
- The adjustment toggle, is left hand mounted (this cannot be changed)
- Washbasin max. load (kg): 50
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 406 |
| Bracket Operation | Gas Assisted |
| Bracket Adjustment | Manual Pull-out Button |
| Height Adjustment (mm) | 190 |
| For Washbasin Range | BASICLINE 425-010 |
| Bracket Mounting | Wall |
| Safety Stop | No |
| Stock status | In stock |
|---|---|
| Delivery time | 1-3 working days |
| Returns Status | Returnable in 14 days |
