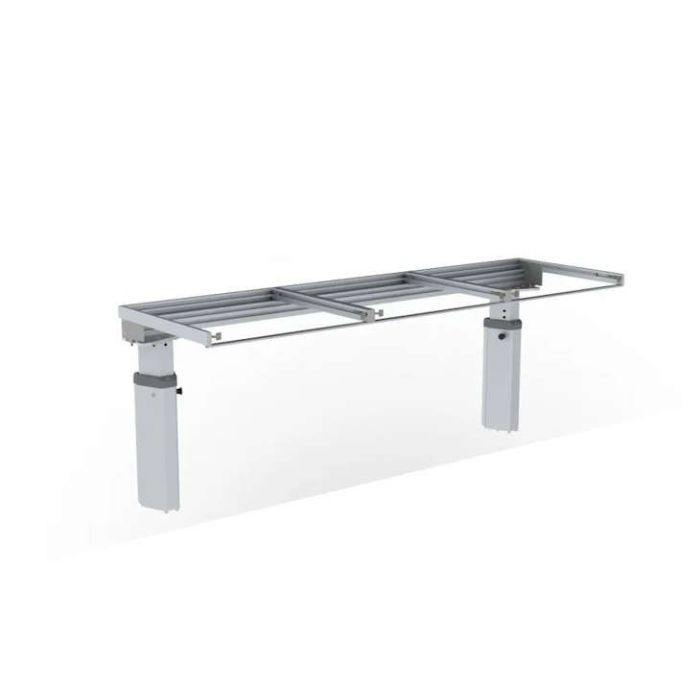

Granberg Manulift 6380LA, Wall, 40mm Front, ADJ Worktop Lift - 1001-1800mm

The Granberg Manulift 6380LA is a manually adjustable, wall-mounted kitchen worktop lift designed to provide a flexible working height for both seated and standing users.

The worktop height is manually adjustable through 300 mm in 25 mm intervals, providing a working height from 700 to 1000 mm above floor level, excluding the worktop. A built-in gas spring provides lifting assistance, making it easier to raise or lower the worktop when adjustment is required.

To adjust the height, the locking pin is released, the worktop is raised or lowered with assistance from the gas spring, and the frame is then secured again using the locking pin. This makes the Manulift 6380LA particularly suitable for kitchens where the worktop height only needs to be changed occasionally.

The wall-mounted design leaves valuable knee and leg space beneath the worktop, making it particularly suitable for accessible and adapted kitchens. Services and brackets beneath the worktop can also be concealed using optional cover panels to create a neat finished installation.

The 6380LA features Granberg's shallow 40 mm high aluminium frame, making it particularly suitable for worktops and installations incorporating a cooking hob. The movable sideways and angle-adjustable consoles provide additional flexibility when planning the worktop layout.

The lift is prepared and assembled at the factory to help simplify installation on site.

This version is available in lift widths from 1001 to 1800 mm.

Key benefits:

• Manual height adjustable kitchen worktop lifting system
• Wall-mounted design provides clear knee and leg space beneath the worktop
• 300 mm of height adjustment in 25 mm intervals
• Height adjustable from 700 to 1000 mm above floor level, excluding the worktop
• Built-in gas spring provides lifting assistance during height adjustment
• Locking pin securely holds the worktop at the selected height
• Ideal where worktop height only needs to be changed occasionally
• Maximum load: 100 kg
• Shallow 40 mm high aluminium frame
• Particularly suitable for worktops and installations incorporating a cooking hob
• Movable sideways and angle-adjustable consoles
• Optional cover panels can conceal brackets and services beneath the worktop
• Factory prepared and assembled to help simplify installation on site
• Available in widths from 1001 to 1800 mm

Includes:

• Ready-mounted aluminium worktop lifting frame
• Wall-mounted brackets
• Built-in gas spring lifting assistance
• Height adjustment locking system
• Brackets and screws for installation of the front fascia and worktop

Front fascia:

• Optional factory-fitted 40 mm high aluminium front fascia
• Available in finishes to coordinate with the lift, Anodised Aluminium, White or Anthracite Finish
• Factory fitting helps simplify installation on site

Optional accessories:

• Cover panels for concealing the support legs and services beneath the worktop
• Cover panel fitting kit
• Hose covers to conceal plumbing services while maintaining access to the lifting legs

For a full list of compatible accessories, please refer to the Installation and Help Guides or contact us to discuss your requirements.

Technical details:

• Installation: Wall mounted
• Operation: Manual height adjustment with gas spring assistance
• Height adjustment: 300 mm in 25 mm intervals
• Height range above floor (mm): 700-1000, excluding worktop
• Height adjustment method: Release locking pin, adjust worktop with assistance from the gas spring and secure again using the locking pin
• Maximum load (kg): 100
• Frame depth from wall (mm): 560-590
• Front height (mm): 40
• Worktop width: Same as the width of the lift
• Suitable worktop depth (mm): 565-630
• Worktop depth should be 15 mm shallower than adjoining fixed worktops
• Required clearance to wall or adjoining cabinet (mm): 5
• Required clearance to wall for tiles (mm): 15
• Tiling: From 700 mm above floor, or alternatively down to floor level
• Frame material: Aluminium

Optional cover panel dimensions:

• Quantity: 2
• Width: Lift width minus 10 mm
• Height (mm): 438
• Suitable panel thickness (mm): 12-20

Please note:

• Optional cover panels may need to be removed when accessing the lifting legs to adjust the worktop height
• The Manulift 6380LA is manufactured to order
• Due to the custom nature of this product, it is non-returnable

Manufacturer product codes:

• 1090 mm width: 6380LA-109
• 1100 mm width: 6380LA-110
• 1190 mm width: 6380LA-119
• 1200 mm width: 6380LA-120
• 1290 mm width: 6380LA-129
• 1300 mm width: 6380LA-130
• 1390 mm width: 6380LA-139
• 1400 mm width: 6380LA-140
• 1490 mm width: 6380LA-149
• 1500 mm width: 6380LA-150
• 1590 mm width: 6380LA-159
• 1600 mm width: 6380LA-160
• 1690 mm width: 6380LA-169
• 1700 mm width: 6380LA-170
• 1790 mm width: 6380LA-179
• 1800 mm width: 6380LA-180

Warranty:

• 5-year warranty against manufacturing defects when registered with Granberg
• Standard 3-year manufacturer warranty applies without registration
