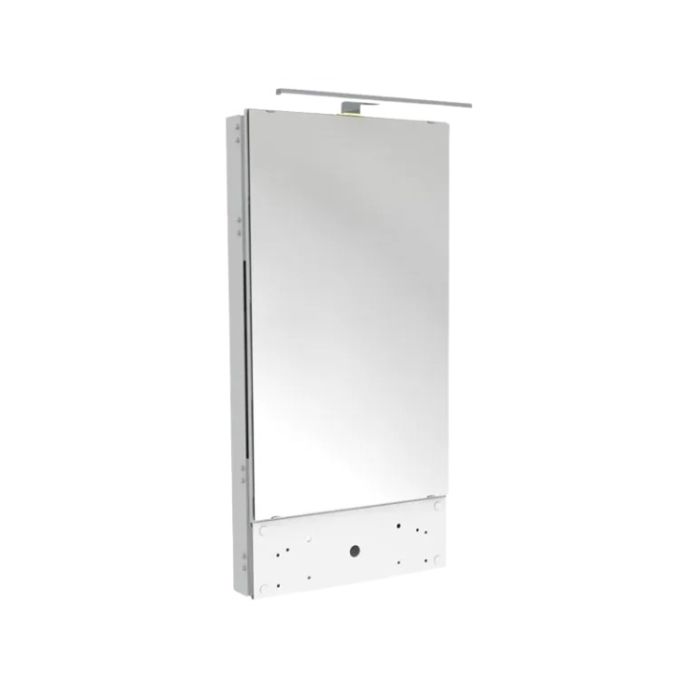

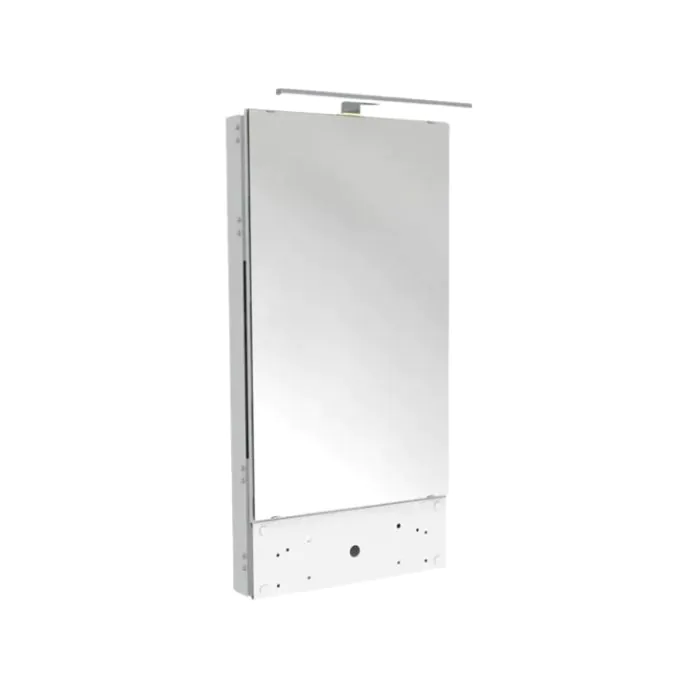

Granberg Motorised Washbasin Lift - BASICLINE 433-0 - White

The Granberg BASICLINE 433-0 is a white, wall-mounted electric washbasin lift with integrated mirror and LED lighting. It provides 250 mm of continuous height adjustment, operated by a wired hand controller supplied as standard. The 620 mm wide lifting module accommodates compatible washbasins up to 600 x 600 mm and 40 kg, with 280 mm fixing centres. Washbasin, mixer tap, safety switch and flexible plumbing connections are available separately.

The Granberg BASICLINE 433-0 is a wall-mounted, electrically height-adjustable washbasin lift with an integrated mirror and overhead LED lighting. Designed for accessible bathrooms, the system provides 250 mm of continuous vertical adjustment, allowing the mirror, lighting and a separately selected washbasin to move together.

The BASICLINE 433-0 is supplied as a standalone lifting module, allowing the washbasin, mixer tap and plumbing connections to be selected separately according to the requirements of the installation. It is suitable for creating an adjustable washbasin arrangement for seated and standing users, including wheelchair users where the selected basin and installation provide appropriate access.

The lifting mechanism has a width of 620 mm and a depth of 118 mm. It accommodates compatible washbasins with a maximum weight of 40 kg, maximum width and depth of 600 mm, and fixing centres of 280 mm. The lifting force is 100 kg.

The integrated mirror measures 1000 x 600 mm and moves together with the lifting mechanism. Overhead LED lighting provides 4000 K illumination and is designed for connection to an external switch.

Electric height adjustment is operated using the supplied wired hand controller, which has an IP65 protection rating and support hook. An optional obstruction-sensitive safety switch can be fitted to stop downward movement if the washbasin encounters an obstruction. A wireless hand controller and flexible plumbing connections are also available separately.

Key Features & Benefits

  • Wall-mounted electric washbasin lifting module with integrated mirror and LED lighting.
  • 250 mm of continuous vertical height adjustment.
  • Mirror and lighting move together with the lifting mechanism and fitted washbasin.
  • Suitable for seated and standing use when installed with an appropriate washbasin.
  • Compact lifting mechanism measuring 620 mm wide and 118 mm deep.
  • Compatible with selected washbasins up to 600 mm wide and 600 mm deep.
  • Maximum compatible washbasin weight of 40 kg.
  • Washbasin mounting centres of 280 mm.
  • 100 kg lifting force.
  • Wired hand controller with IP65 protection rating and support hook.
  • Optional wireless hand controller for remote operation.
  • Optional obstruction-sensitive safety switch.
  • Integrated 1000 x 600 mm mirror with polished edges.
  • Overhead LED lighting with 4000 K colour temperature.
  • Wall-mounted design with space for suitable plumbing connections.
  • Washbasin, mixer tap and flexible plumbing connections selected separately.

Included Components

  • Granberg BASICLINE 433-0 electric washbasin lifting mechanism.
  • Integrated mirror and mounting panel.
  • Integrated LED lighting assembly.
  • Wired hand controller with coiled cable and support hook.

Optional Accessories & Separately Required Components

  • Compatible washbasin with 280 mm fixing centres.
  • Suitable mixer tap.
  • Flexible water supply hoses.
  • 425-331 flexible waste hose with water trap.
  • 425-401 obstruction-sensitive safety switch.
  • 61386-10 wireless hand controller, single channel.

Important: The BASICLINE 433-0 is supplied without a washbasin, mixer tap, flexible water supply hoses, flexible waste hose or safety switch. These components must be ordered separately where required. The wired hand controller is included as standard.

Technical Specifications

  • Manufacturer: Granberg
  • Product code: 433-0
  • Range: BASICLINE 433
  • Product type: Electric height-adjustable washbasin lifting module with mirror and lighting
  • Finish: White
  • Mounting: Wall-mounted
  • Operation: Electric, continuously adjustable
  • Overall width: 620 mm
  • Unit depth: 118 mm
  • Height adjustment: 250 mm
  • Adjustment speed: 18 mm/second
  • Lifting force: 100 kg
  • Maximum compatible washbasin weight: 40 kg
  • Maximum compatible washbasin width: 600 mm
  • Maximum compatible washbasin depth: 600 mm
  • Washbasin fixing centres: 280 mm
  • Controller: Wired hand controller with coiled cable and support hook
  • Controller protection rating: IP65
  • Electrical supply: 230 V, maximum 1.5 A
  • Lift protection rating: IPX4
  • Mirror dimensions: 1000 x 600 x 4 mm
  • Mirror material: Silver-coated float glass with polished edges
  • Lighting: LED, 4000 K, non-dimmable
  • Lighting connection: External power and switch
  • Lighting material: Aluminium/plastic, chrome finish
  • Back panel: White melamine-coated particleboard W899 with 2 mm ABS edging
  • Washbasin mounting plate: Powder-coated aluminium-zinc coated steel, white RAL 9010
  • Other metal components: Powder-coated steel sheet
  • Safety switch: Optional
  • Wireless hand controller: Optional
  • Washbasin and mixer tap: Not included
  • Flexible plumbing connections: Not included

Warranty

Granberg provides a 5-year manufacturer's warranty against manufacturing defects when the product is registered on the Granberg website. Without registration, the standard manufacturer's warranty is 3 years.

Technical Information
Manufacturer Granberg
Bracket Range Granberg BASICLINE 433
Bracket Operation Electric
Bracket Adjustment Wired Hand Control & or Remote Control
Height Adjustment (mm) 250
For Washbasin Range BASICLINE 425-003, BASICLINE 425-010, BASICLINE 425-011, BASICLINE 425-015
Bracket Mounting Wall
Safety Stop Optional
Stock status Available to order
Delivery time1-2 weeks
Returns Status Returnable in 14 days
Select your Country and enter your Postcode to check available shipping options and calculate rates for this product
Product Code: 433-0
Availability Available to order (Info)
Expected delivery 1-2 weeks
VAT Exemption is available on this product - deducted at Checkout (Info)
The Granberg BASICLINE 433-0 is a white, wall-mounted electric washbasin lift with integrated mirror and LED lighting. It provides 250 mm of continuous height adjustment, operated by a wired hand controller supplied as standard. The 620 mm wide lifting module accommodates compatible washbasins up to 600 x 600 mm and 40 kg, with 280 mm fixing centres. Washbasin, mixer tap, safety switch and flexible plumbing connections are available separately.
In stock
£2,988.00 £2,490.00
