Granberg Motorised Washbasin Lift BASICLINE 433-03-20 - Incl. Mixer Tap with 190 mm Lever (TMV3 Approved) - White
Complete wall mounted height adjustable washbasin bracket. Electrically adjustable via wired hand control. 250 mm continuously variable height. Includes integrated mirror with lighting above, 425-003 washbasin with overflow and plug. Includes safety stop system. The tap is designed for easy operation by hand or elbow, making it practical and hygienic in everyday use. With proven TMV3 thermostatic protection for safe temperature control, it is ideal for accessible facilities, sheltered accommodation, and domestic bathrooms. WRAS approved.

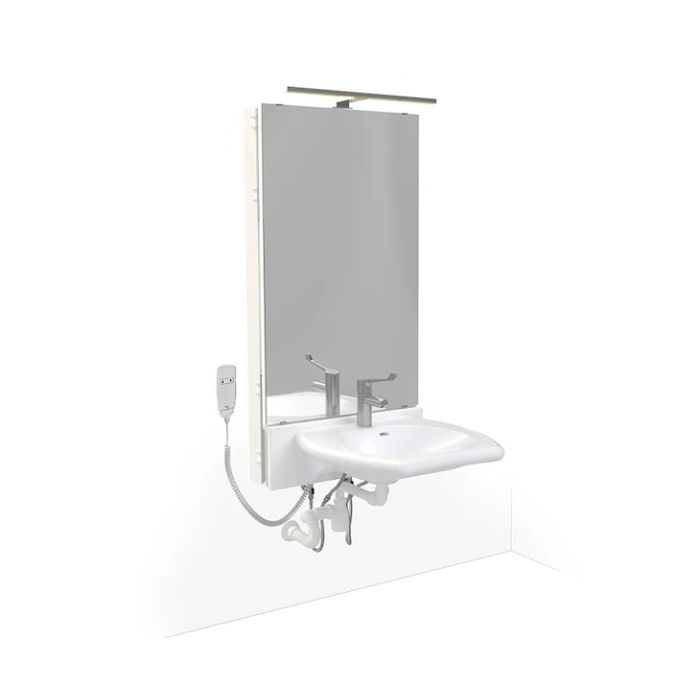

The Granberg Basicline 433 is a wall mounted electric washbasin lift with integrated mirror and LED lighting above, with 190 mm WRAS and TMV3 approved tap.
Stylish and discreet, the entire system moves to the required height using the corded hand control.
This version includes the 425-003 washbasin with safety stop system.
Key benefits:
- Complete 250 mm wall mounted height adjustable system with mirror, lighting and washbasin
- Electric operation with corded hand control
- Mirror and lighting move in tandem with the washbasin
- Wheelchair accessible washbasin with shallow bowl, concave front edge and easy-to-grip sides
- Depth of leg room under the washbasin 706 mm
- Plumbing connections are elegantly concealed in the lifting unit
- Includes safety stop switch - prevents the descent of the lift in the event of an obstruction
Includes:
- 433 Washbasin lift, safety stop switch, mirror with LED light above
- 425-410 Corded hand control
- 425-003 Porcelain washbasin with overflow and plug
- 425-331 Flexible drain hose with water trap
- 425-120 Sequential TMV3 mixer tap, 190 mm lever (WRAS Approved)
- Pair of flexible water hoses
Technical details:
- Total width (mm): 620
- Total height when mounted at the recommended height (mm): 1694-1944 (adjustable)
- Height of mirror (mm): 1000
- Total depth from front of washbasin to wall (mm): 706
- Width of washbasin (mm): 600
- Depth of washbasin (mm): 550
- Distance from front edge to tap lever (mm): 274
- Height from top of washbasin to floor (mm): 635-885 (adjustable)
- Speed of operation: 18 mm / sec
- Electrical connection: Mains UK plug for 230 V, max. 1.5A
- IP-class: IPX4
- Wired hand controller, IP65 rated, with support hook
- Lifting force (kg): 100
- Washbasin max. load (kg): 50
Material:
- Back panel: White melamine coated particleboard W899 with 2 mm ABS edging
- Mounting plate: Powder coated Alu-zinc coated steel, white RAL 9010
- Mirror: 1000 x 600 x 4 mm silver-coated float glass with polished edges
- Safety switches and other metal parts: Powder-coated steel sheet
Lighting technical details:
- Lighting: Aluminium/plastic, Colour: Chrome
- LED lighting 12V / 6-8W, 4000K (connected to an external switch)
- Transformer: Primary (in) 220-240 V, Secondary (out) 12V
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg BASICLINE 433 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-003 |
| Bracket Mounting | Wall |
| Safety Stop | Yes |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
