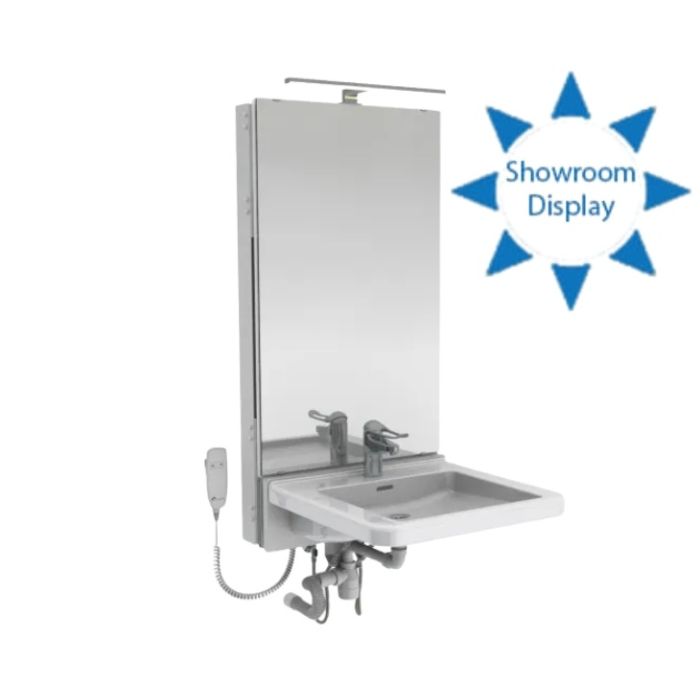

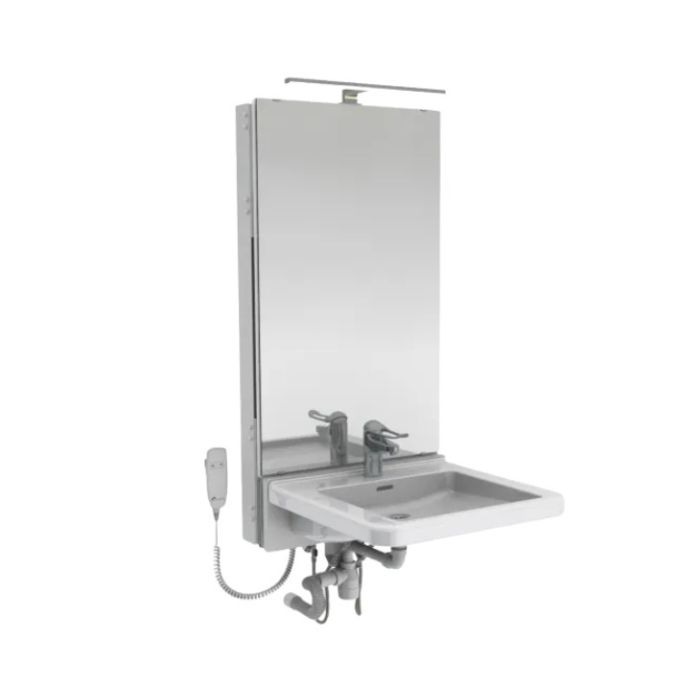

Granberg Motorised Washbasin Lift BASICLINE 433-10-05 - Incl. Mixer Tap with 150 mm Lever - White

The Granberg Basicline 433 is a complete wall-mounted electric washbasin lifting system, combining a height adjustable washbasin with an integrated mirror, LED lighting and extended lever mixer tap.

Designed to provide a stylish and discreet solution for accessible bathrooms and washrooms, the complete washbasin, mirror and lighting assembly moves together through 250 mm of electric height adjustment. The system is operated using a corded hand control, allowing the washbasin to be positioned at a comfortable height for different users.

This version includes the Granberg 425-010 wheelchair accessible porcelain washbasin and an integrated safety system that stops downward movement if an obstruction is detected beneath the lift.

Key benefits:

• Complete wall-mounted height adjustable washbasin system with integrated mirror and LED lighting
• 250 mm of electric height adjustment
• Corded hand control for simple operation
• Mirror and lighting move together with the washbasin as the height is adjusted
• Wheelchair accessible washbasin with a shallow bowl
• Generous flat surfaces around the washbasin provide useful space for everyday bathroom items
• Easy-to-grip sides
• 706 mm depth of leg room beneath the washbasin
• Plumbing connections are discreetly concealed within the lifting unit
• Integrated safety switch stops downward movement if an obstruction is detected

Includes:

• Granberg Basicline 433 electric washbasin lift
• Integrated safety switch
• Mirror with LED lighting above
• Granberg FMM 425-105 mixer tap with 150 mm extended lever and PEX hoses, as shown in the product images
• 425-410 corded hand control
• 425-010 porcelain washbasin with overflow and plug
• 425-331 flexible drain hose with water trap

Optional taps with 2 x 500 mm PEX flexible hoses:

• Granberg FMM 425-106 mixer tap with 150 mm extended lever, 1.5 m hose hand shower and PEX hoses
• Granberg FMM 425-110 infrared mixer tap with 6 V battery, temperature control and PEX hoses
• Please note: The FMM taps are not UK TMV rated or WRAS approved for commercial applications
• For the Basicline 433 washbasin lifting system supplied with a TMV3 and WRAS approved tap, please see Product Code: 433-10-20

Technical details:

• Total width (mm): 620
• Total height when mounted at the recommended height (mm): 1694-1944
• Height adjustment range (mm): 250
• Mirror height (mm): 1000
• Total depth from front of washbasin to wall (mm): 646
• Washbasin width (mm): 600
• Washbasin depth (mm): 550
• Distance from front edge to tap lever (mm): 330
• Washbasin height above floor (mm): 635-885
• Adjustment speed (mm/sec): 18
• Electrical connection: Mains UK plug, 230 V, max. 1.5 A
• IP rating: IPX4
• Lifting force (kg): 100
• Maximum washbasin load (kg): 50

Materials:

• Back panel: White melamine-coated particleboard W899 with 2 mm ABS edging
• Mounting plate: Powder-coated alu-zinc coated steel, White RAL 9010
• Mirror: 1000 x 600 x 4 mm silver-coated float glass with polished edges
• Safety switch and other metal components: Powder-coated sheet steel

Lighting technical details:

• Light construction: Aluminium and plastic
• Light finish: Chrome
• LED lighting: 12 V / 6-8 W
• Colour temperature: 4000 K
• Lighting is connected to an external switch
• Transformer primary input: 220-240 V
• Transformer secondary output: 12 V

Warranty:

• 5-year warranty against manufacturing defects when registered with Granberg
• Standard 3-year manufacturer warranty applies without registration
