Granberg Motorised Washbasin Lift BASICLINE 433-11-05 - Incl. Mixer Tap with 150 mm Lever - White

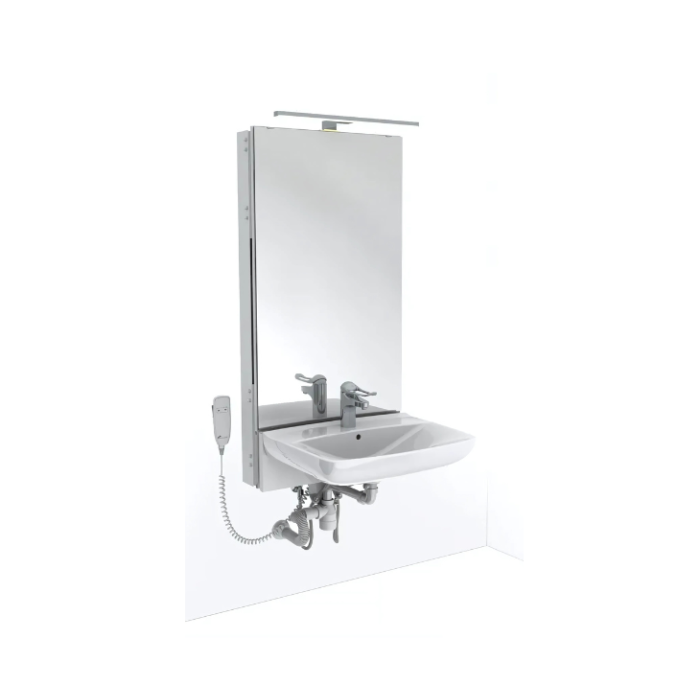

The Granberg BASICLINE 433-11-05 is a wall-mounted, electrically height-adjustable washbasin system with an integrated mirror and overhead LED lighting. Designed for accessible bathrooms, the system provides 250 mm of continuous vertical adjustment, allowing the washbasin, mirror and lighting to move together to accommodate seated and standing users.

This model includes the Granberg 425-011 compact porcelain washbasin, measuring 600 x 445 mm, with an integrated overflow and plug. Its reduced projection makes it particularly suitable for children and smaller bathrooms. The system provides 600 mm of leg room beneath the washbasin, supporting access for seated users.

The BASICLINE 433-11-05 is supplied with a Granberg FMM 425-105 mixer tap featuring an extended 150 mm operating lever. The distance from the front edge of the washbasin to the tap lever is 225 mm.

The integrated mirror measures 1000 x 600 mm and moves in tandem with the washbasin, helping maintain a suitable viewing position as the height changes. The overhead LED lighting provides 4000 K illumination and is designed for connection to an external lighting switch.

Height adjustment is controlled using the supplied wired hand controller. An integrated safety switch stops downward movement if the washbasin encounters an obstruction. Flexible plumbing connections are accommodated beneath the unit, with space provided for water supply and waste connections.

Key Features & Benefits

• Wall-mounted electric washbasin system with integrated mirror and LED lighting.
• 250 mm of continuous vertical height adjustment.
• Washbasin, mirror and lighting move together as one assembly.
• Suitable for seated and standing users, subject to individual access requirements.
• Compact Granberg 425-011 porcelain washbasin measuring 600 x 445 mm.
• Washbasin supplied with integrated overflow and plug.
• Overall system width of 620 mm and projection of 600 mm.
• 600 mm of leg room beneath the washbasin.
• Granberg FMM 425-105 mixer tap with extended 150 mm operating lever.
• 1000 x 600 mm silver-coated glass mirror with polished edges.
• Integrated 12 V LED lighting, 6-8 W, with 4000 K colour temperature.
• LED lighting designed for connection to an external switch.
• Wired hand controller with IP65 protection rating and support hook.
• Integrated safety switch stops downward movement when an obstruction is detected.
• Space beneath the unit for flexible plumbing connections.
• Maximum washbasin load of 50 kg.

Included Components

• 433-0 BASICLINE motorised washbasin lift with integrated mirror and LED lighting.
• 425-011 compact porcelain washbasin with overflow and plug.
• 425-105 Granberg FMM mixer tap with 150 mm lever.
• 425-410 wired hand controller.
• 425-401 integrated safety switch.
• 425-331 flexible waste hose and water trap.
• 425-311 flexible water supply hoses with 3/8" connections (two supplied).

Technical Specifications

• Manufacturer: Granberg
• Product code: 433-11-05
• Range: BASICLINE 433
• Finish: White
• Operation: Electric, continuously adjustable
• Mounting: Wall-mounted
• Overall system width: 620 mm
• Overall system depth: 600 mm
• Overall height when mounted at recommended height: 1703-1953 mm
• Washbasin dimensions: 600 x 445 mm
• Washbasin material: Porcelain
• Washbasin design: Compact, with integrated overflow and plug
• Washbasin height above floor: 640-890 mm
• Height adjustment: 250 mm
• Leg room beneath washbasin: 600 mm
• Distance from basin front edge to mixer tap lever: 225 mm
• Mixer tap: Granberg FMM 425-105
• Mixer tap lever length: 150 mm
• Mirror dimensions: 1000 x 600 x 4 mm
• Mirror material: Silver-coated float glass with polished edges
• Lighting: LED, 12 V, 6-8 W, 4000 K
• Lighting connection: External switch
• Lighting dimmable: No
• Lighting material: Aluminium/plastic, chrome finish
• Lighting transformer input: 220-240 V
• Lighting transformer output: 12 V
• Adjustment speed: 18 mm/second
• Lifting force: 100 kg
• Maximum washbasin load: 50 kg
• Controller: Wired hand control, IP65 rated
• Electrical supply: 230 V, maximum 1.5 A
• Lift protection rating: IPX4
• Safety system: Integrated obstruction-sensitive safety switch
• Back panel: White melamine-coated particleboard W899 with 2 mm ABS edging
• Mounting plate: Powder-coated aluminium-zinc coated steel, white RAL 9010
• Safety switch and metal components: Powder-coated steel sheet
• Plumbing: Flexible water supply hoses and waste hose with water trap

Warranty

Granberg provides a 5-year manufacturer's warranty against manufacturing defects when the product is registered on the Granberg website. Without registration, the standard manufacturer's warranty is 3 years.
