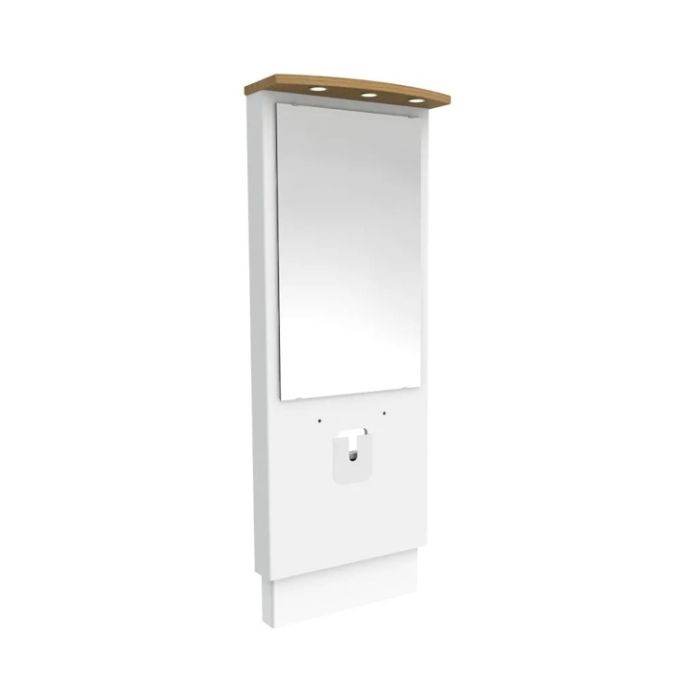

Granberg Motorised Washbasin Lift DESIGNLINE 417-0 - White
Tall pedestal 250 mm height-adjustable washbasin lift. Electric operation, the entire system moves to the required height. White laminate with integrated mirror and solid oiled oak canopy with LED lights. Optional corded hand control and or handheld remote control, safety stop system and flexible waste kit with a water trap. Order washbasin, flexible water hoses and tap separately.
The Granberg Designline 417-0 is an electric washbasin lift with integrated mirror with LED lighting above.
Stylish and discreet, the entire system moves to the required height using the corded hand control and or optional handheld remote control.
This version comes in a clean white finish that can be completed with a washbasin, tap and flexible feed and waste kit.
Key benefits:
- Tall pedestal 250 mm height adjustable system with mirror and lighting
- White laminate surround with solid oiled oak canopy and 3 x recessed LED spotlights
- Electric operation by a corded hand control, optional handheld radio control (Product code: 61386-10)
- Mirror and lighting move in tandem with the unit
- Plumbing connections can be elegantly concealed in the lifting unit
Includes:
- Granberg Designline 417 washbasin lift with mirror and lighting
Optional:
- 425-410 - Cable Hand control Washbasin lift
- 61386-10 - Remote Hand control (single channel)
- 425-331 - Flexible drain hose with water trap
- 425-401 - Safety switch - prevents the descent of the lift in the event of an obstruction
- Note: If selecting the optional handheld radio control, the safety switch is recommended
Technical details:
- Total width (mm): 715
- Total height (mm): 1770-2020 (250 mm adjustable)
- Depth of pedestal (mm): 120
- Height of mirror (mm): 1000
- Width of mirror (mm): 600
- Speed of operation: 18 mm / sec
- Lifting force (kg): 100
- Wired hand controller, IP65 rated, with support hook
- Electrical connection: Plug to 230 V, max 1.5A
- Note: If ordering the optional handheld remote control a double plug socket is required
- Enclosure IP-class: IPX4
Washbasin:
- Maximum washbasin load (kg): 40
- Maximum width of washbasin (mm): 670
- Maximum depth of washbasin (mm): 600
- Washbasin centre-to-centre fixings (mm): 280
Material:
- Back panel: Plywood coated with high-pressure White laminate (Formica F7949, white)
- Mirror: 1000 x 600 x 4 mm silver-backed float glass with ground edges incl. mirror clips
- Mounting cover: White plastic
- Safety switches and other metal parts: Powder-coated steel sheet
Lighting technical details:
- Lighting: Solid oiled oak with 3 x recessed spotlights (connected to external power switch)
- Spotlights: LED 3W, 3000K
- Transformer: Primary (in) 230V, Secondary (out) 12V
Warranty:
- 5 year manufacturer warranty
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies
| Manufacturer | Granberg |
|---|---|
| Bracket Range | Granberg DESIGNLINE 417 |
| Bracket Operation | Electric |
| Bracket Adjustment | Wired Hand Control & or Remote Control |
| Height Adjustment (mm) | 250 |
| For Washbasin Range | BASICLINE 425-003, BASICLINE 425-010, BASICLINE 425-011, BASICLINE 425-015 |
| Bracket Mounting | Floor & Wall |
| Safety Stop | Optional |
| Stock status | Available to order |
|---|---|
| Delivery time | 1-2 weeks |
| Returns Status | Returnable in 14 days |
