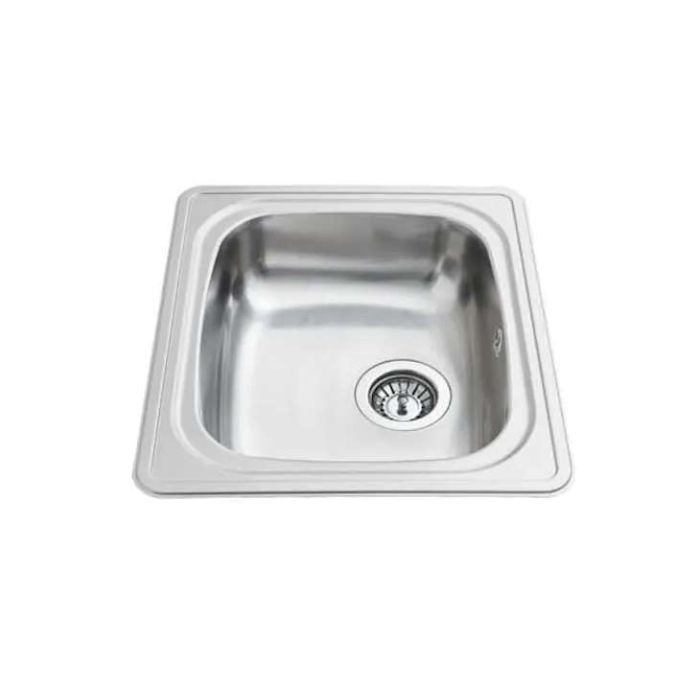

Granberg Ergosteel Wheelchair Accessible Inset Kitchen Sink ES10 - 44.1 cm, SS, Inc. Flexible Waste Kit
Space-saving Granberg ES 10 inset or under-mount shallow bowl kitchen sink. 120mm depth single bowl. Total width 441 x total depth 496mm. Suitable for domestic and commercial disabled and less abled kitchen adaptations. No space for tap hole. Includes trap and flexible waste kit. The Granberg ES10 includes a pre-fitted heat insulation pad, for the underside of the sink bowl to prevent leg/knee scalding. Optional sink accessories.
The Granberg ES 10 is an excellent space saving shallow bowl kitchen sink, its high quality materials making it ideal for both domestic and commercial installations.
With one bowl and a shallow depth of just 120mm, this sink is ideal for insetting into a height adjustable worktop lift for a compact kitchen adaptation where space is limited.
Key benefits:
- Provides more space below the sink for the users legs and knees
- Insulated to protect the users legs and knees
- Shallow dishwashing bowl with a depth of 120mm
- Waste and overflow positioned to the rear of the sink bowl
- Shallow waste trap with 90mm dia. waste outlet
- Ideal for installing into a height adjustable worktop system
- Smooth stainless steel construction
- Universal flange allows it to be inset or undermounted
- Includes manual basket waste, overflow and water trap
- Waste kit includes inlet options for washing machine and dishwasher waste feeds
- Includes 200-650mm flexible waste kit (Product Code: 61801)
Technical details:
- For cabinet size (mm): 400
- Height of the sink bowl (mm): 120
- Outer dimensions (mm): 441 x 496
- Bowl dimensions (mm): 340 x 400
- Plate thickness: 0.8mm, brushed stainless steel
- INSET Dimensions of cut-out hole (mm): 415 x 474
- Mounting: Inset or undermounted
- Incl. basket valve and water trap with flexible drain hose
Mounting - Inset
- A hole is cut in the worktop and the inset sink is put in position from above. The inset sink is then fastened underneath with fittings (supplied) while the outer edge lies on top of the worktop. This method is suitable for all types of worktop materials except natural stone. The hole is made on site by a fitter.
Mounting - Under-mounted
- A hole with an edge is milled out in the worktop from below. The inset sink is then glued on from underneath. The thickness of the visible material above the sink varies depends on the thickness of material i.e. solid surface or acrylic stone.
Recommended optional accessories:
- 618-020 - Strainer waste kit
- 618-026 - Teak chopping board for sink bowl 340 x 400mm
- 618-024 - Wire basket for sink bowl 340 x 400mm
- 618-060 - Single rotary valve for sink bowl
- The drain is opened and closed using a button that should be recessed into the work surface or fascia front
Heat insulation pad - Technical details:
- Materials: 4mm thick Cellular rubber
- Temperature resistant acrylic glue
Warranty:
- 3 years warranty
- The product is covered by a 3-year warranty against manufacturing defects
| Manufacturer | Granberg |
|---|---|
| Finish | Brushed Stainless Steel |
| For Cabinet Size (mm) | 400 |
| Heat Insulated | Yes |
| Bowl Depth (mm) | 120 |
| Sink Installation | Inset, Undermount |
| Stock status | Available to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Returnable in 14 days |
