Granberg SS Insulated Inset/Under-mount Kitchen Sink ES20 - 61.6 cm, Inc. Flexible Waste Kit

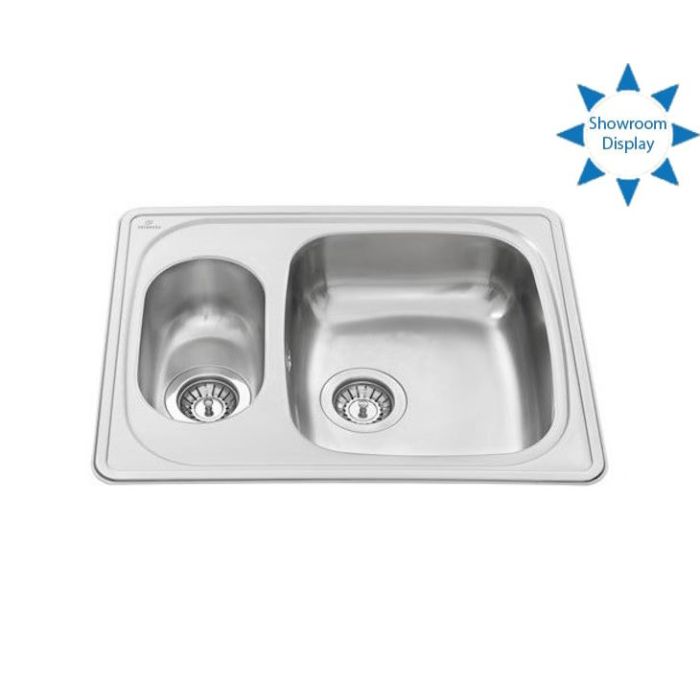

Space-saving Granberg ES 20 stainless steel inset or under-mount one and a half shallow bowl kitchen sink. 120mm depth single bowls. Total width 616 x depth 496mm. Tap hole undrilled, free deck space for a monobloc tap. Suitable for domestic and commercial disabled and less abled kitchen adaptations. Includes traps and flexible waste kit. The Granberg ES20 includes a self-adhesive heat insulation pad, for the underside of the sink bowls to prevent leg/knee scalding.
The Granberg ES 20 is an excellent space saving shallow one and half bowl kitchen sink, its high quality materials making it ideal for both domestic and commercial installations.
With the one and half bowls and a shallow depth of just 120mm, this sink is ideal for insetting into a height-adjustable worktop lift for a compact kitchen adaptation where space is limited.
Key benefits:
- Provides more space below the sink for the user's legs and knees
- Insulated to protect the users legs and knees
- Main single dishwashing bowl with a depth of 120mm
- Half bowl with a depth of 120mm
- Central positioned wastes
- Shallow waste traps with 90mm dia. waste outlets in each sink bowl
- Ideal for installing in a height adjustable worktop system
- Smooth stainless steel construction
- Universal flange allows it to be inset or under-mounted
- Free space to at either side of half bowl for mounting a monobloc tap - requires tap hole cutter
- Turn able for left or right side use
- Includes manual basket wastes, overflows and water traps
- Waste kit includes inlet options for washing machine and dishwasher waste feeds
- Includes 200-650mm flexible waste kit (Product Code: 61801)
Technical details:
- For cabinet size (mm): 600
- Outer dimensions (mm): 616 x 496
- Main bowl dimensions (mm): 340 x 400
- Bowl depth (mm): 120
- Half bowl dimensions (mm): 160 x 295
- Bowl depth (mm): 120
- Depth of free space for tap (mm): 50
- Plate thickness: 0.8mm, smooth stainless steel
- INSET - Dimensions of cut-out hole (mm): 590 x 474
- Reversible, for right or left
- Incl. basket valve and water trap with flexible drain hose
Mounting - Inset
- A hole is cut in the worktop and the inset sink is put in position from above. The inset sink is then fastened underneath with fittings while the outer edge lies on top of the worktop. This method is suitable for all types of worktop materials except natural stone. The hole is made on site by a fitter.
Mounting - Under-mounted
- A hole with an edge is milled out in the worktop from below. The inset sink is then glued on from underneath. The thickness of the visible material above the sink varies depends on the thickness of material i.e. solid surface or acrylic stone.
Recommended optional accessories:
- 1x 4G4S0801 - Heat insulation pad (mm): 500 x 500 x 6
- WFC-3754000 - Ø 35mm (1 3/8”) Tap Hole Cutter
- 618-020 - Strainer Waste Kit
- 618-021 - Rotary Valve for a 90mm Dia. Sink Waste
- 618-026 - Teak Chopping Board for Sink Bowl 340 x 400mm
- 618-024 - Wire Basket for Sink Bowl 340 x 400mm
- 618-022 - Sink / Worktop 500ml Soap Dispenser
Heat insulation pad - Technical details:
- 1x Heat insulation pad (mm): 500 x 500 x 6
- Can be cut to size as required
- Materials: Grey neoprene sponge rubber
- Flame resistant
- Temperature resistant acrylic adhesive
- Supplied separately with self-adhesive backing
- See PDF data sheet for more information
Warranty:
- 2 year manufacturer warranty
Formerly referred to as the ESi 20
| Manufacturer | Granberg |
|---|---|
| For Cabinet Size (mm) | 600 |
| Heat Insulated | Yes - Supplied (Self Fit) |
| Bowl Depth (mm) | 120 |
| Sink Installation | Inset, Undermount |
| Stock status | 4x In stock |
|---|---|
| Delivery time | Next working day if ordered by 12pm (midday) |
| Returns Status | Returnable in 14 days |
