Granberg Wall Cabinet Lift Diago 504, 60-110 cm Width

Granberg Diago 504 Wall Cabinet Lift

The Granberg Diago 504 is an electric height-adjustable lifting system that makes an entire kitchen wall cabinet easier to reach. Rather than lowering shelves inside the cabinet, the Diago moves the complete cabinet diagonally downwards and forwards, bringing its contents towards the front edge of the worktop.

This movement can make high-level storage significantly easier to use for wheelchair users, seated users and people with reduced reach or mobility. As the cabinet comes forwards while it lowers, users do not need to stretch across the full depth of the worktop to reach items stored inside.

The movement is motorised, quiet and steplessly adjustable. It can be stopped at any height, allowing each user to position the cabinet at a comfortable level before returning it to its raised position after use.

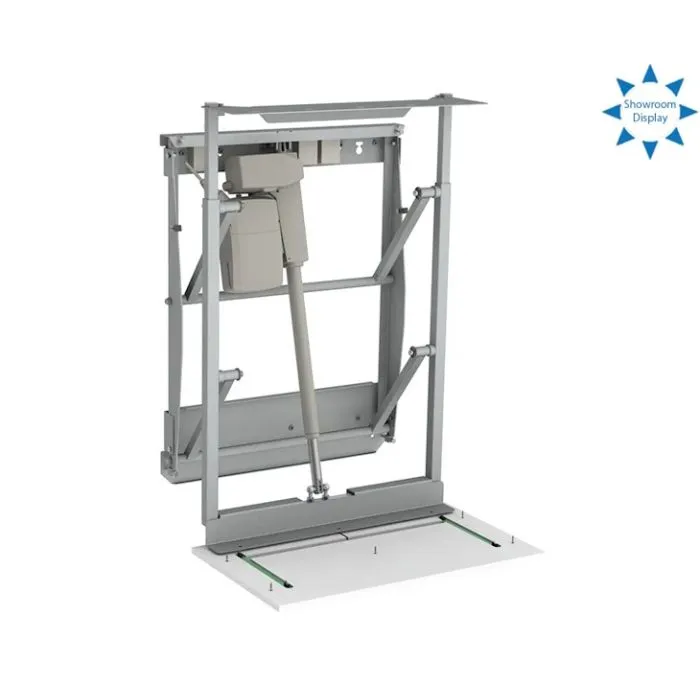

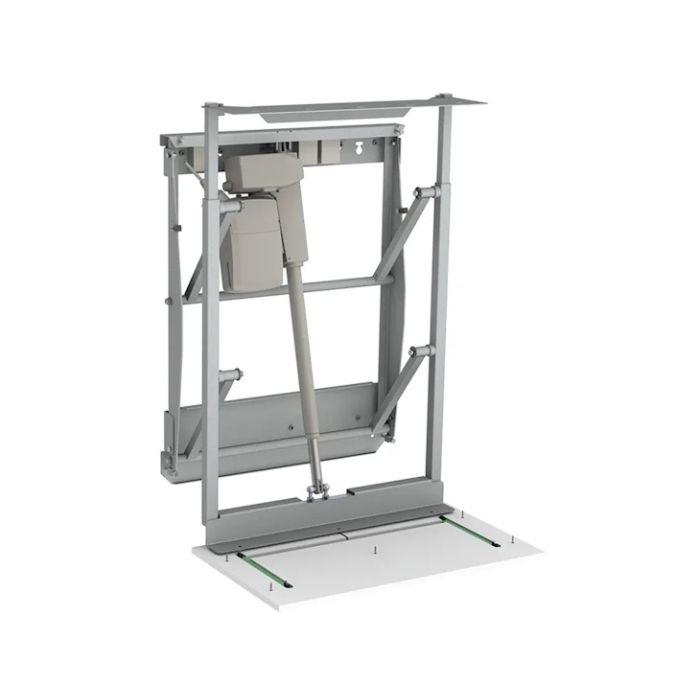

The Diago lifting frame is installed behind the wall cabinet, so it does not take up storage space inside. It can support new or suitable existing cabinets and can be integrated into kitchens from a wide range of manufacturers.

Why Choose the Diago 504?

• Electric height-adjustable lifting system for kitchen wall cabinets.
• Lowers the complete cabinet rather than only its internal shelves.
• Moves the cabinet diagonally downwards and forwards.
• Brings stored items towards the front edge of the worktop.
• Particularly helpful for wheelchair users and people with limited reach.
• Motorised, quiet and steplessly adjustable movement.
• Can be stopped at any height to suit the user.
• Mounted behind the cabinet without reducing internal storage space.
• Suitable for cabinets from 600 to 1100 mm wide.
• Integrated obstruction safety system.

How It Works

The wall cabinet is mounted between the upper and lower supporting rails of the Diago frame. When the control is operated, the complete cabinet travels in a controlled curved movement downwards and forwards.

The cabinet lowers by up to 435 mm and moves up to 227 mm forwards from the wall. This brings the cabinet closer to the user and positions it near the front of the worktop, reducing the need to reach across the work surface.

The movement is steplessly adjustable and can be stopped at any point. The cabinet can therefore be positioned at the most suitable height for the individual user.

Cabinet Alignment

The Diago 504 allows the fitted cabinet to be fine-tuned in multiple directions during installation. This helps the cabinet align accurately with adjacent fixed wall units, even where the wall is not completely level or straight.

Because the lifting frame is positioned behind the cabinet, the cabinet projects 110 mm further from the wall when raised. Adjacent cabinets may need to be brought forwards by the same distance to create a consistent finished appearance.

Choice of Controls

The Diago 504 is available with a selection of wired, wireless and handheld control options. This allows the operating method and control position to be selected around the user, the kitchen layout and any other Granberg lifting systems within the room.

• Recessed – Control Button, Wired, Black (Product Code: 61310-10)
• Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
• Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
• Recessed – Wireless Mini Control Buttons (Product Code: 61376)
• Single Channel Remote Control (Product Code: 61385-10)
• Two to five-channel remote controls are also available when installing multiple lifting systems. Please contact us to discuss your requirements.

Safety as Standard

Each Diago 504 is supplied with one or more safety stop plates, depending on the selected cabinet width. These are fitted beneath the wall cabinet or cabinets supported by the lifting system.

If a safety plate comes into contact with an object on the worktop while the cabinet is lowering, the downward movement stops immediately. This helps protect the user, the work surface and objects positioned beneath the cabinet.

Optional Lighting

Optional lighting can be installed beneath the cabinet to illuminate the worktop and create a practical task-lighting area.

• LED lighting can be fitted beneath the safety stop plate.
• Optional lighting can be incorporated into the installation.
• An additional mains socket is required when optional lighting is installed.

Cabinet Compatibility

This version of the Diago 504 uses the 504-055 lifting unit and is designed for wall cabinet arrangements measuring from 600 to 1100 mm wide.

• Cabinet widths (mm): 600, 700, 800, 900, 1000 and 1100
• Compatible cabinet height: 700–1100 mm
• Compatible cabinet depth: 260–400 mm
• Minimum clearance to an adjoining wall or cabinet: 5 mm
• Recommended movement allowance should be confirmed during installation.
• Frame width: 550 mm
• Frame height: 720 mm
• Frame projection from wall: 110 mm

Technical Specification

• Product code: 504-055
• Type of lift: Diagonal lifting system for wall cabinets
• Height adjustment: 435 mm downwards
• Forward movement: 227 mm outwards
• Movement: Motorised and steplessly adjustable
• Operating speed: 17 mm/sec
• Maximum lifting force: 150 kg
• Electrical connection: Plug for 230V supply, maximum 1.5A
• IP rating: IPX4
• Frame width: 550 mm
• Frame height: 720 mm
• Frame projection: 110 mm
• Cabinet width range: 600–1100 mm
• Cabinet height range: 700–1100 mm
• Cabinet depth range: 260–400 mm

Materials and Finish

• Frame: Powder-coated steel
• Frame colour: Aluminium Grey RAL 9006
• Safety stop plates: 12 mm white-painted MDF
• Safety stop plate depth: 350 mm

Available Cabinet Widths

• 600 mm cabinet width
• 700 mm cabinet width
• 800 mm cabinet width
• 900 mm cabinet width
• 1000 mm cabinet width
• 1100 mm cabinet width

Manufacturer Product Codes

The complete Diago 504 configuration varies according to cabinet width, controls and selected options. Manufacturer product codes within this range include:

504-060, 504-060-01, 504-060-06, 504-060-07, 504-060-08, 504-070, 504-070-01, 504-070-06, 504-070-07, 504-070-08, 504-080, 504-080-01, 504-080-06, 504-080-07, 504-080-08, 504-090, 504-090-01, 504-090-06, 504-090-07, 504-090-08, 504-100, 504-100-01, 504-100-06, 504-100-07, 504-100-08, 504-110, 504-110-01, 504-110-06, 504-110-07 and 504-110-08.

Warranty

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Installation Notes

• The Diago frame is installed behind the wall cabinet and projects 110 mm from the wall.
• Adjacent fixed cabinets may need to be positioned 110 mm forwards to align with the cabinet fitted to the Diago.
• A minimum gap of 5 mm must be maintained between the moving cabinet and an adjoining cabinet or wall.
• The cabinet must be securely fixed between the upper and lower supporting rails.
• The fitted cabinet can be adjusted during installation to align with surrounding kitchen furniture.
• Safety stop plates must be fitted beneath all cabinets supported by the lifting system.
• Wireless control options require an additional mains socket for the receiver.
• Optional LED lighting requires an additional mains socket.
• The electrical supply, socket positions and required clearances should be planned before installation.
• Cabinet construction, wall suitability and all structural fixings must be checked before installation.
