Granberg Wall Cabinet Lift Verti 840KA, 262 mm Depth - White
The Granberg Verti 840KA is an electric wall cabinet lift designed for wall cabinets with a 262 mm internal depth. It lowers the cabinet shelves smoothly by up to 485 mm, bringing everyday items within comfortable reach while maintaining a clean, integrated kitchen design.

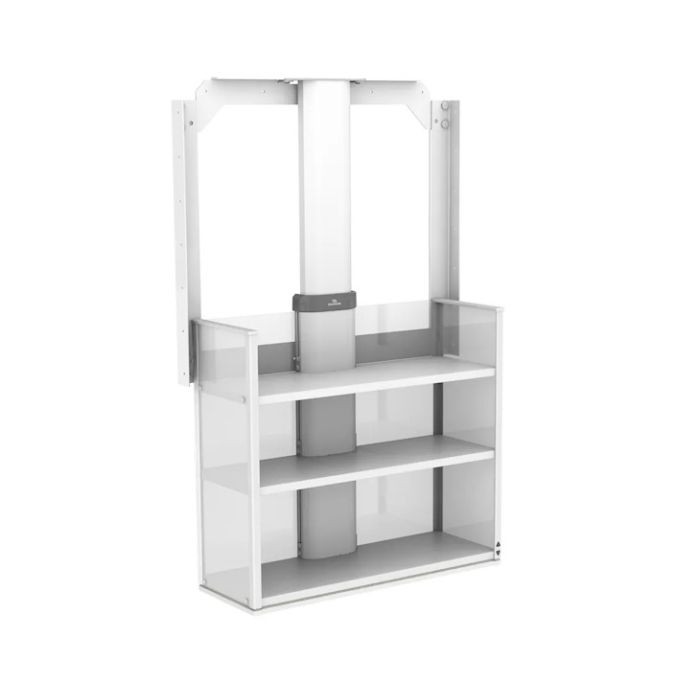

Granberg Verti 840KA Wall Cabinet Lift
The Granberg Verti 840KA transforms high-level kitchen storage into an accessible, practical and easy-to-use space. Designed for wall cabinets with an internal depth of 262 mm, the lift lowers the cabinet shelves quietly and smoothly towards the worktop, allowing everyday items to be reached comfortably without stretching, climbing or overreaching.
Unlike conventional pull-down storage systems, the Verti 840KA moves the entire shelving unit vertically by up to 485 mm. This keeps the shelves level throughout their travel, making it easier to access plates, food, glasses and kitchen essentials while leaving clear worktop space directly in front of the cabinet.
Its compact design fits neatly inside standard kitchen wall cabinets from most manufacturers, making it equally suitable for new kitchen installations and refurbishment projects. The movement is smooth, quiet and can be stopped at any point, allowing every user to position the shelves at the most comfortable working height.
Why Choose the Verti 840KA?
The Verti 840KA has been developed to improve independence without compromising kitchen design. Whether the kitchen is shared by wheelchair users, standing users or people with reduced mobility, the lift allows wall cabinet storage to remain practical and accessible for everyone.
- Electric height-adjustable wall cabinet lift.
- Quiet, smooth motorised operation.
- Lowers shelves vertically by up to 485 mm.
- Creates easy access to high-level storage.
- Leaves free worktop space in front of the shelves when lowered.
- Compatible with kitchens from virtually any manufacturer.
- Suitable for both new kitchens and retrofit installations.
How It Works
The lifting mechanism is installed neatly inside the wall cabinet after the cabinet base and shelves have been removed. At the touch of a button, the complete shelving unit lowers vertically towards the worktop, bringing the contents into a comfortable working position. The lift can be stopped at any height, allowing each user to choose the most suitable position.
Control Options
The Verti 840KA is available with a choice of wired, wireless and remote-control options, allowing the controls to be tailored to the kitchen layout and individual user requirements.
- Recessed – Control Button, Wired, Black (Product Code: 61310-10)
- Recessed – Corded Mini Control Buttons with 5 metre control cable (Product Code: 61315)
- Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
- Recessed – Wireless Mini Control Buttons (Product Code: 61376)
- Single Channel Remote Control (Product Code: 61385-10)
- 2 to 5 channel remote controls are also available when operating multiple Granberg lifting systems. Please contact us for advice.
Safety as Standard
Every Verti 840KA is fitted with an integrated safety plate beneath the lowest shelf. Should the safety plate come into contact with an obstruction during operation, the lift immediately stops, helping to prevent trapping or accidental damage during everyday use.
Additional lighting can be incorporated into the Verti 840KA to improve visibility inside the kitchen workspace.
- Factory-fitted LED spotlights beneath the safety plate.
- Optional LED strip lighting.
- Matching LED lighting for adjacent fixed-height wall cabinets is also available.
Cabinet Compatibility
The Verti 840KA is designed for standard kitchen wall cabinets with an internal depth of 262 mm.
- Cabinet widths (mm): 400, 500, 600, 700, 800, 900 and 1000
- Verti widths (mm): 360, 460, 560, 660, 760, 860 and 960
- Suitable for cabinet heights: 700 mm and above
- Internal cabinet depth: 262 mm
- Cabinet side thickness: 16–20 mm
- Taller cabinets may require a fixed shelf above the lifting mechanism.
Technical Specification
- Colour: White
- Shelf depth: 240 mm
- Lift height: 680 mm
- Vertical travel: 485 mm
- Operating speed: 41 mm/sec
- Maximum lifting capacity: 60 kg
- Maximum shelf weight: 28 kg
- Electrical supply: 230V mains plug
- Control voltage: 5V
- Lighting voltage: 24V
- IP Rating: IP20
- Noise level: Less than 70 dB(A)
Materials
- Shelves: 19 mm White Melamine
- Safety Plate: 12 mm White MDF
- Sides: Crylon Softone
- Metal Components: Powder-coated White (RAL 9003)
- Sliding Rail: Aluminium
Warranty
- 5 year manufacturer warranty.
- This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies.
Installation Notes
- The wall cabinet shelves and base must be removed before installation.
- The Verti 840KA is not compatible with in-frame wall cabinets due to a potential pinch risk created by the front frame.
- Wireless and remote-control options require an additional plug socket for the receiver.
- Power sockets should be positioned approximately 50 mm above the wall cabinet.
| Manufacturer | Granberg |
|---|---|
| Model | Verti 840 |
| Style | Cabinet Shelves Lower to User |
| Max. Distance Lowered (mm) | 485 |
| For Cabinet Width (mm) | 400, 500, 600, 700, 800, 900, 1000 |
| Cabinet Height (mm) | 700-840 |
| For Cabinet Depth (mm) | 262 |
| Max. Load (kg / St) | 60 / 9.4 |
| Colour | White - 01 |
| Stock status | Available to order |
|---|---|
| Delivery time | 7-10 working days |
| Returns Status | Returnable in 14 days |
