Granberg Wall Cabinet Lift Verti 840KB, 307 mm Depth - Anthracite

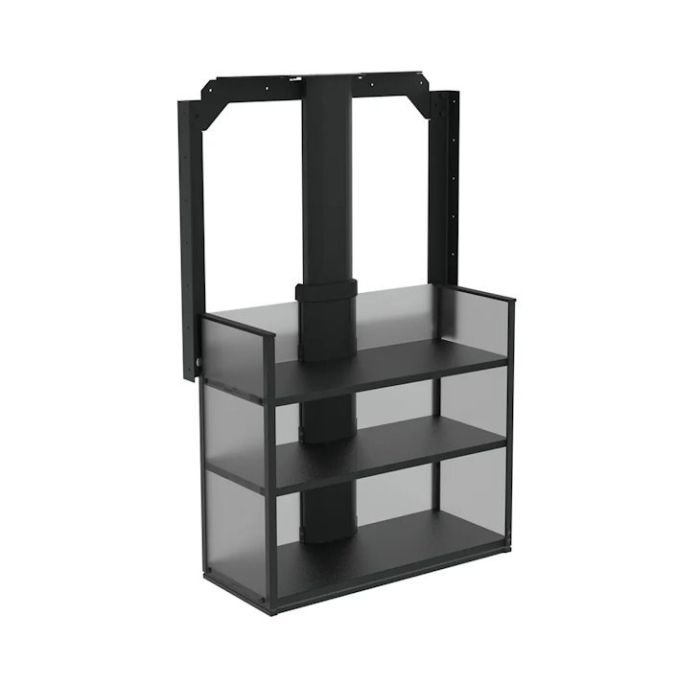

Granberg Verti 840KB-07 Wall Cabinet Lift

The Granberg Verti 840KB-07 combines accessible wall cabinet storage with a contemporary anthracite finish. Designed for deeper kitchen wall cabinets, the electric lifting system lowers the complete shelving unit smoothly towards the worktop, bringing stored items within comfortable reach.

The shelves move vertically downwards by up to 485 mm and remain level throughout their travel. This allows plates, glasses, ingredients and everyday kitchen items to be accessed without excessive stretching, climbing or reaching into a high-level cabinet.

Unlike mechanisms that swing forwards into the room, the Verti lowers vertically within the cabinet opening. When the shelves are lowered, useful worktop space remains available in front of them.

The movement is quiet, smooth and steplessly adjustable. It can be stopped at any height, allowing wheelchair users, standing users and people with reduced mobility to select a comfortable position.

The anthracite Verti 840KB-07 is available in the complete range of widths for cabinets from 400 to 1000 mm wide, allowing its darker finish to be used across a wide variety of accessible kitchen designs.

Why Choose the Verti 840KB-07?

• Contemporary anthracite finish.
• Available in all cabinet widths from 400 to 1000 mm.
• Electric height-adjustable wall cabinet lift.
• Designed for deeper kitchen wall cabinets.
• Lowers the complete shelving unit vertically by up to 485 mm.
• Smooth, quiet and stepless motorised movement.
• Can be stopped at any height.
• Leaves useful worktop space in front of the lowered shelves.
• Suitable for new kitchens and compatible existing cabinets.
• Integrated obstruction safety system.

How It Works

The lifting mechanism is installed inside the wall cabinet after the original cabinet base and shelves have been removed. When the control is operated, the complete shelving unit lowers vertically towards the worktop.

The movement can be stopped anywhere within its 485 mm travel range. This allows the user to bring the shelves to the most comfortable height before raising them back inside the cabinet after use.

Choice of Controls

A choice of wired, wireless and handheld controls allows the Verti 840KB-07 to be configured around the user and the kitchen layout.

• Recessed – Control Button, Wired, Black (Product Code: 61310-10)
• Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
• Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
• Recessed – Wireless Mini Control Buttons (Product Code: 61376)
• Single Channel Remote Control (Product Code: 61385-10)
• Two to five-channel remote controls are also available when installing multiple lifting systems. Please contact us to discuss your requirements.

Safety as Standard

The Verti 840KB-07 is fitted with an integrated safety plate beneath the lowest shelf. If the plate comes into contact with an object while the shelves are lowering, the downward movement stops immediately.

This helps reduce the risk of trapping and protects the worktop and objects positioned below the lift.

Optional Lighting

Optional lighting can be fitted beneath the lift to improve visibility over the work surface and complement the kitchen design.

• Factory-fitted LED spotlights beneath the safety plate.
• Optional LED strip lighting.
• Matching LED lighting for adjacent fixed-height cabinets is available separately.

Cabinet Compatibility

The Verti 840KB-07 has a nominal depth of 307 mm and requires a wall cabinet with at least 312 mm internal depth.

• Cabinet widths (mm): 400, 500, 600, 700, 800, 900 and 1000
• Verti widths (mm): 360, 460, 560, 660, 760, 860 and 960
• Verti depth: 307 mm
• Minimum internal cabinet depth: 312 mm
• Lift height: 680 mm
• Suitable cabinet height: 700 mm and above
• Cabinet side thickness: 16–20 mm
• Taller cabinets may require a fixed internal shelf above the lifting system.

Technical Specification

• Product code: 840KB-07-xxx
• Type of lift: Vertical lifting system for wall cabinets
• Colour: Anthracite
• Vertical adjustment: Up to 485 mm downwards
• Movement: Motorised and steplessly adjustable
• Operating speed: 41 mm/sec
• Maximum lifting force: 60 kg
• Electrical connection: Plug for 230V supply, maximum 5A
• IP rating: IP20
• Lift height: 680 mm
• Cabinet width range: 400–1000 mm
• Cabinet side thickness: 16–20 mm

Materials and Finish

• Shelves: 19 mm anthracite melamine, Kronospan MFC 164 PE
• Safety plate: 12 mm lacquered MDF, Grey NCS S 7502-G, Gloss 35
• Sides: Crylon Softone
• Aluminium and sheet metal components: Powder-coated AkzoNobel SABLÉ BLACK, YW 359 F
• Plastic components: Black RAL 9005

Warranty

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Installation Notes

• The original wall cabinet shelves and cabinet base must be removed before installation.
• The cabinet must provide an internal depth of at least 312 mm.
• The Verti 840KB-07 is not compatible with an in-frame wall cabinet because the front frame can create a pinch or entrapment risk.
• Wireless and handheld remote-control options may require an additional electrical socket for the receiver.
• The electrical supply and socket positions should be planned before the wall cabinet is installed.
• Cabinet construction, wall suitability and the required fixings must be checked before installation.
