Granberg Wall Cabinet Lift Verti 840KB, 307 mm Depth - White

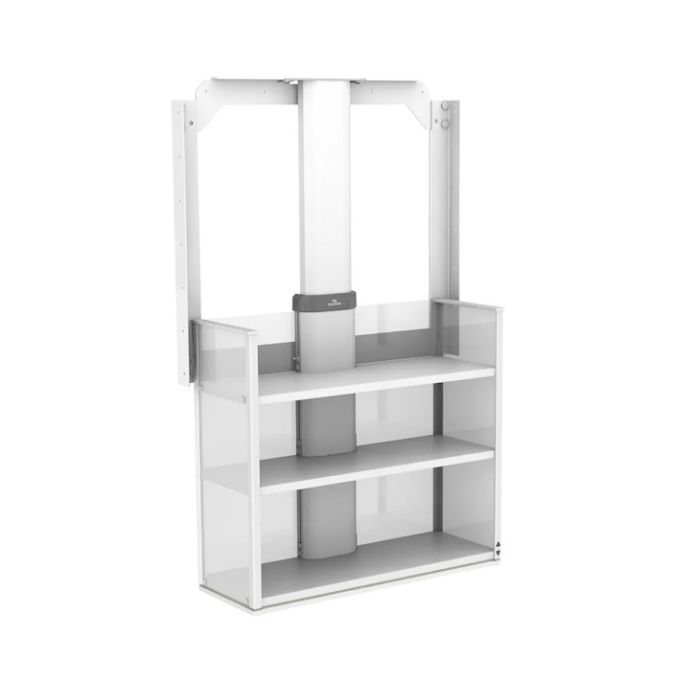

Granberg Verti 840KB Wall Cabinet Lift

The Granberg Verti 840KB is a white electric wall cabinet lift designed to make high-level kitchen storage easier and more comfortable to use. Suitable for deeper wall cabinets, it lowers the complete shelving unit vertically towards the worktop, bringing plates, glasses, food and other everyday items within convenient reach.

The shelves travel downwards by up to 485 mm and remain level throughout their movement. Unlike systems that swing outwards, the Verti moves vertically inside the cabinet opening, leaving useful worktop space in front of the lowered shelves.

The movement is smooth, quiet and steplessly adjustable, allowing the lift to be stopped at any height. This makes the Verti 840KB particularly useful in multi-user kitchens shared by wheelchair users, standing users and people with reduced mobility or limited reach.

Its compact mechanism fits neatly inside compatible wall cabinets without requiring them to project further from the wall. It can therefore be incorporated into new accessible kitchens or installed as part of a carefully planned refurbishment.

Why Choose the Verti 840KB?

• Electric height-adjustable wall cabinet lift.
• Designed for deeper kitchen wall cabinets.
• Lowers the complete shelving unit vertically by up to 485 mm.
• Smooth, quiet and stepless motorised operation.
• Can be stopped at any height to suit the user.
• Leaves useful worktop space in front of the shelves when lowered.
• Suitable for new kitchens and compatible existing cabinets.
• Can be integrated into kitchens from a wide range of manufacturers.
• Integrated obstruction safety system.

How It Works

The Verti 840KB is installed inside the wall cabinet after the cabinet’s original shelves and base have been removed. At the touch of a control, the complete shelving unit lowers vertically towards the worktop.

The lift can be stopped anywhere within its 485 mm travel range, allowing each user to position the shelves at a comfortable height. Once the items have been used or returned, the shelving unit can be raised neatly back inside the cabinet.

Choice of Controls

The Verti 840KB is available with a selection of wired, wireless and handheld control options. The most suitable control can be selected according to the user’s reach, the kitchen layout and any other Granberg lifting systems being installed.

• Recessed – Control Button, Wired, Black (Product Code: 61310-10)
• Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
• Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
• Recessed – Wireless Mini Control Buttons (Product Code: 61376)
• Single Channel Remote Control (Product Code: 61385-10)
• Two to five-channel remote controls are also available when installing multiple lifting systems. Please contact us to discuss your requirements.

Safety as Standard

An integrated safety plate is fitted beneath the lowest shelf. If the plate touches an object on the worktop while the lift is lowering, the downward movement stops immediately.

This helps protect the user, the work surface and any objects positioned beneath the cabinet during operation.

Optional Lighting

Optional lighting can be incorporated beneath the Verti to illuminate the worktop and coordinate with other wall cabinets in the kitchen.

• Factory-fitted LED spotlights beneath the safety plate.
• Optional LED strip lighting.
• Matching LED lighting for adjacent fixed-height wall cabinets is available separately.

Cabinet Compatibility

The Verti 840KB is the deeper version of the Verti 840 wall cabinet lift. The lift has a nominal depth of 307 mm and requires a cabinet with at least 312 mm internal depth.

• Cabinet widths (mm): 400, 500, 600, 700, 800, 900 and 1000
• Verti widths (mm): 360, 460, 560, 660, 760, 860 and 960
• Verti depth: 307 mm
• Minimum internal cabinet depth: 312 mm
• Lift height: 680 mm
• Suitable cabinet height: 700 mm and above
• Cabinet side thickness: 16–20 mm
• Taller cabinets may require a fixed internal shelf above the lifting system.

Technical Specification

• Product code: 840KB-xxx
• Type of lift: Vertical lifting system for wall cabinets
• Colour: White
• Vertical adjustment: Up to 485 mm downwards
• Movement: Motorised and steplessly adjustable
• Operating speed: 41 mm/sec
• Maximum lifting force: 60 kg
• Electrical connection: Plug for 230V supply, maximum 5A
• IP rating: IP20
• Lift height: 680 mm
• Cabinet width range: 400–1000 mm
• Cabinet side thickness: 16–20 mm

Materials and Finish

• Shelves: 19 mm white melamine
• Safety plate: 12 mm white lacquered MDF
• Sides: Crylon Softone
• Aluminium and sheet metal components: Powder-coated White RAL 9003
• Plastic components: White RAL 9003
• Sliding rail: Aluminium

Warranty

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Installation Notes

• The original wall cabinet shelves and cabinet base must be removed before installation.
• The cabinet must provide an internal depth of at least 312 mm.
• The Verti 840KB is not compatible with an in-frame wall cabinet because the front frame can create a pinch or entrapment risk.
• Wireless and handheld remote-control options may require an additional electrical socket for the receiver.
• The electrical supply and socket positions should be planned before the wall cabinet is installed.
• Cabinet construction, wall suitability and the required fixings must be checked before installation.
