Granberg Wall Cabinet Lift Verti 840SB, 307 mm Depth - Anthracite

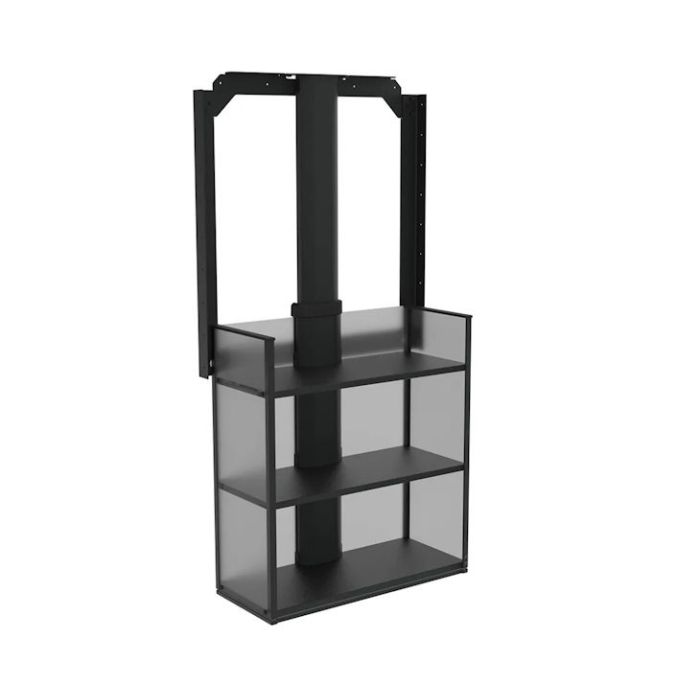

Granberg Verti 840SB-07 Wall Cabinet Lift

The Granberg Verti 840SB-07 combines accessible high-level storage with a contemporary anthracite finish. Designed for taller, deeper kitchen wall cabinets, the electric lifting system lowers the complete shelving unit smoothly towards the worktop, bringing everyday items within comfortable reach.

The shelves travel vertically downwards by up to 630 mm and remain level throughout their movement. This makes plates, glasses, ingredients and other kitchen essentials easier to reach without excessive stretching, climbing or reaching into a high cabinet.

Unlike conventional pull-down mechanisms that swing forwards into the room, the Verti lowers vertically within the cabinet opening. This leaves useful worktop space in front of the shelves when they are in their lowered position.

The motorised movement is smooth, quiet and steplessly adjustable. It can be stopped at any point within its travel range, allowing wheelchair users, standing users and people with reduced mobility or limited reach to choose a comfortable working height.

The Verti 840SB-07 is available in the complete range of sizes for cabinets from 400 to 1000 mm wide, allowing its anthracite finish to be incorporated into a wide variety of contemporary accessible kitchen designs.

Why Choose the Verti 840SB-07?

• Contemporary anthracite finish.
• Available in all cabinet widths from 400 to 1000 mm.
• Electric height-adjustable wall cabinet lift.
• Designed for taller, deeper kitchen wall cabinets.
• Lowers the complete shelving unit vertically by up to 630 mm.
• Smooth, quiet and stepless motorised movement.
• Can be stopped at any height to suit the user.
• Keeps the shelves level throughout their movement.
• Leaves useful worktop space in front when lowered.
• Suitable for new kitchens and compatible existing cabinets.
• Integrated obstruction safety system.

How It Works

The Verti 840SB-07 is installed inside the wall cabinet after the original cabinet base and shelves have been removed. At the touch of a control, the complete shelving unit lowers vertically towards the worktop.

The stepless motorised movement can be stopped anywhere within its 630 mm travel range. Each user can therefore position the shelves at a comfortable height before raising them neatly back inside the cabinet after use.

Choice of Controls

The Verti 840SB-07 is available with a choice of wired, wireless and handheld control options. This allows the operating method and control position to be selected around the user, the kitchen layout and any other Granberg lifting systems within the room.

• Recessed – Control Button, Wired, Black (Product Code: 61310-10)
• Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
• Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
• Recessed – Wireless Mini Control Buttons (Product Code: 61376)
• Single Channel Remote Control (Product Code: 61385-10)
• Two to five-channel remote controls are also available when installing multiple lifting systems. Please contact us to discuss your requirements.

Safety as Standard

An integrated safety plate is fitted beneath the lowest shelf. If the plate comes into contact with an object on the worktop while the lift is lowering, the downward movement stops immediately.

This helps reduce the risk of trapping while protecting the user, the worktop and objects positioned beneath the cabinet.

Optional Lighting

Optional lighting can be fitted beneath the Verti to illuminate the work surface and complement the anthracite finish.

• Factory-fitted LED spotlights beneath the safety plate.
• Optional LED strip lighting.
• Matching LED lighting for adjacent fixed-height wall cabinets is available separately.

Cabinet Compatibility

The Verti 840SB-07 is the taller version of the deeper Verti 840 wall cabinet lift. The lifting unit has a nominal depth of 307 mm and requires a cabinet with at least 312 mm internal depth.

• Cabinet widths (mm): 400, 500, 600, 700, 800, 900 and 1000
• Verti widths (mm): 360, 460, 560, 660, 760, 860 and 960
• Verti depth: 307 mm
• Minimum internal cabinet depth: 312 mm
• Lift height: 830 mm
• Suitable cabinet height: 850 mm and above
• Cabinet side thickness: 16–20 mm
• Cabinets taller than 850 mm require a fixed internal shelf above the lifting system.

Technical Specification

• Product code: 840SB-07-xxx
• Type of lift: Vertical lifting system for wall cabinets
• Colour: Anthracite
• Lift height: 830 mm
• Vertical adjustment: Up to 630 mm downwards
• Movement: Motorised and steplessly adjustable
• Operating speed: 41 mm/sec
• Maximum lifting force: 60 kg
• Electrical connection: Plug for 230V supply, maximum 5A
• IP rating: IP20
• Cabinet width range: 400–1000 mm
• Cabinet side thickness: 16–20 mm

Materials and Finish

• Shelves: 19 mm anthracite melamine, Kronospan MFC 164 PE
• Safety plate: 12 mm lacquered MDF, Grey NCS S 7502-G, Gloss 35
• Sides: Crylon Softone
• Aluminium and sheet metal components: Powder-coated AkzoNobel SABLÉ BLACK, YW 359 F
• Plastic components: Black RAL 9005

Warranty

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Installation Notes

• The original wall cabinet shelves and cabinet base must be removed before installation.
• The cabinet must provide an internal depth of at least 312 mm.
• The Verti 840SB-07 is not compatible with an in-frame wall cabinet because the front frame can create a pinch or entrapment risk.
• Wireless and handheld remote-control options may require an additional electrical socket for the receiver.
• The electrical supply and socket positions should be planned before the wall cabinet is installed.
• Cabinet construction, wall suitability and the required fixings must be checked before installation.
