Granberg Wall Cabinet Lift Verti 840SB, 307 mm Depth - White

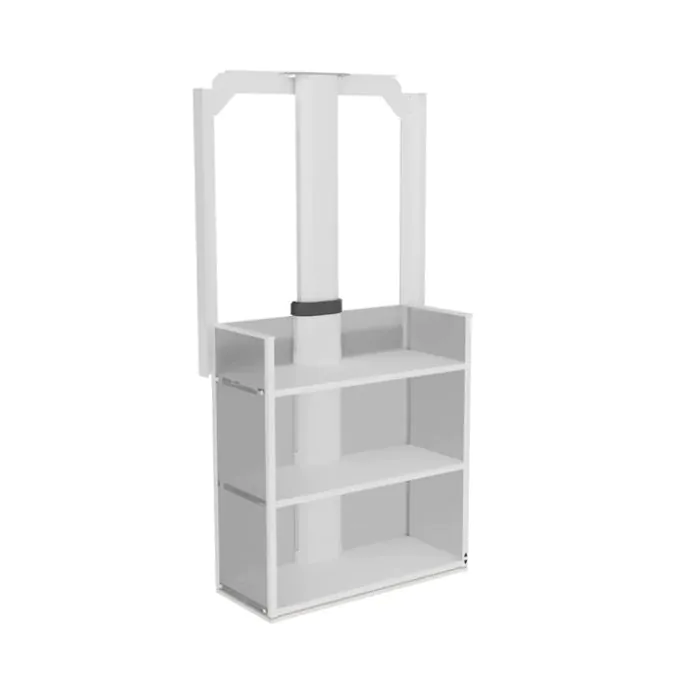

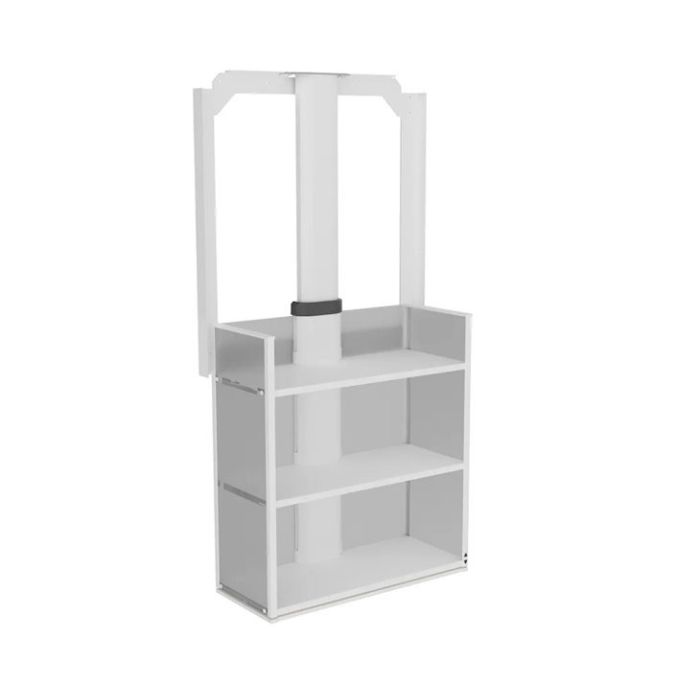

Granberg Verti 840SB Wall Cabinet Lift

The Granberg Verti 840SB is a white electric wall cabinet lift designed to make storage inside taller, deeper kitchen cabinets easier and more comfortable to reach. The complete shelving unit lowers smoothly towards the worktop, bringing plates, glasses, ingredients and other everyday items to a practical height.

Designed for taller wall cabinets, the Verti 840SB provides up to 630 mm of vertical travel. The shelves remain level throughout their movement, allowing their contents to be raised and lowered safely without the forward swing associated with conventional pull-down baskets.

When lowered, the shelving unit leaves useful worktop space in front. Its movement is quiet, smooth and steplessly adjustable, allowing the lift to be stopped at any height within its travel range. This makes it suitable for wheelchair users, standing users and people with reduced mobility or limited reach.

The compact mechanism fits neatly inside a compatible wall cabinet without requiring the cabinet to project further from the wall. The Verti 840SB can therefore be incorporated into a new accessible kitchen or installed as part of a carefully planned refurbishment.

Why Choose the Verti 840SB?

• Electric height-adjustable wall cabinet lift.
• Designed for taller, deeper kitchen wall cabinets.
• Lowers the complete shelving unit vertically by up to 630 mm.
• Smooth, quiet and stepless motorised operation.
• Can be stopped at any height to suit the user.
• Keeps the shelves level throughout their movement.
• Leaves useful worktop space in front when lowered.
• Suitable for new kitchens and compatible existing cabinets.
• Can be integrated into kitchens from a wide range of manufacturers.
• Integrated obstruction safety system.

How It Works

The Verti 840SB is installed inside the wall cabinet after the cabinet’s original shelves and base have been removed. At the touch of a control, the complete shelving unit lowers vertically towards the worktop.

The motorised movement is steplessly adjustable and can be stopped anywhere within its 630 mm travel range. Each user can therefore position the shelves at a comfortable height before raising them neatly back inside the cabinet after use.

Choice of Controls

The Verti 840SB is available with a choice of wired, wireless and handheld control options. This allows the operating method and control position to be selected around the user, the kitchen layout and any other Granberg lifting systems within the room.

• Recessed – Control Button, Wired, Black (Product Code: 61310-10)
• Recessed – Corded Mini Control Buttons with 5 metre Control Cable (Product Code: 61315)
• Recessed – Control Button with Radio Control, Black (Product Code: 61371-10)
• Recessed – Wireless Mini Control Buttons (Product Code: 61376)
• Single Channel Remote Control (Product Code: 61385-10)
• Two to five-channel remote controls are also available when installing multiple lifting systems. Please contact us to discuss your requirements.

Safety as Standard

Every Verti 840SB is supplied with an integrated safety plate beneath the lowest shelf. If the plate comes into contact with an object on the worktop while the lift is lowering, the downward movement stops immediately.

This helps reduce the risk of trapping while protecting the user, the worktop and objects positioned beneath the cabinet.

Optional Lighting

Optional lighting can be fitted beneath the Verti to illuminate the work surface and create a coordinated finish with adjacent wall cabinets.

• Factory-fitted LED spotlights beneath the safety plate.
• Optional LED strip lighting.
• Matching LED lighting for adjacent fixed-height wall cabinets is available separately.

Cabinet Compatibility

The Verti 840SB is the taller version of the deeper Verti 840 wall cabinet lift. The lifting unit has a nominal depth of 307 mm and requires a cabinet with at least 312 mm internal depth.

• Cabinet widths (mm): 400, 500, 600, 700, 800, 900 and 1000
• Verti widths (mm): 360, 460, 560, 660, 760, 860 and 960
• Verti depth: 307 mm
• Minimum internal cabinet depth: 312 mm
• Lift height: 830 mm
• Suitable cabinet height: 850 mm and above
• Cabinet side thickness: 16–20 mm
• Cabinets taller than 850 mm require a fixed internal shelf above the lifting system.

Technical Specification

• Product code: 840SB-xxx
• Type of lift: Vertical lifting system for wall cabinets
• Colour: White
• Lift height: 830 mm
• Vertical adjustment: Up to 630 mm downwards
• Movement: Motorised and steplessly adjustable
• Operating speed: 41 mm/sec
• Maximum lifting force: 60 kg
• Electrical connection: Plug for 230V supply, maximum 5A
• IP rating: IP20
• Cabinet width range: 400–1000 mm
• Cabinet side thickness: 16–20 mm

Materials and Finish

• Shelves: 19 mm white melamine
• Safety plate: 12 mm white lacquered MDF
• Sides: Crylon Softone
• Aluminium and sheet metal components: Powder-coated White RAL 9003
• Plastic components: White RAL 9003
• Sliding rail: Aluminium

Warranty

• 5 year manufacturer warranty
• This product comes with a 5-year warranty against manufacturing defects when registered on Granberg's website. Without registration, our standard 3-year warranty applies

Installation Notes

• The original wall cabinet shelves and cabinet base must be removed before installation.
• The cabinet must provide an internal depth of at least 312 mm.
• The Verti 840SB is not compatible with an in-frame wall cabinet because the front frame can create a pinch or entrapment risk.
• Wireless and handheld remote-control options may require an additional electrical socket for the receiver.
• The electrical supply and socket positions should be planned before the wall cabinet is installed.
• Cabinet construction, wall suitability and the required fixings must be checked before installation.
