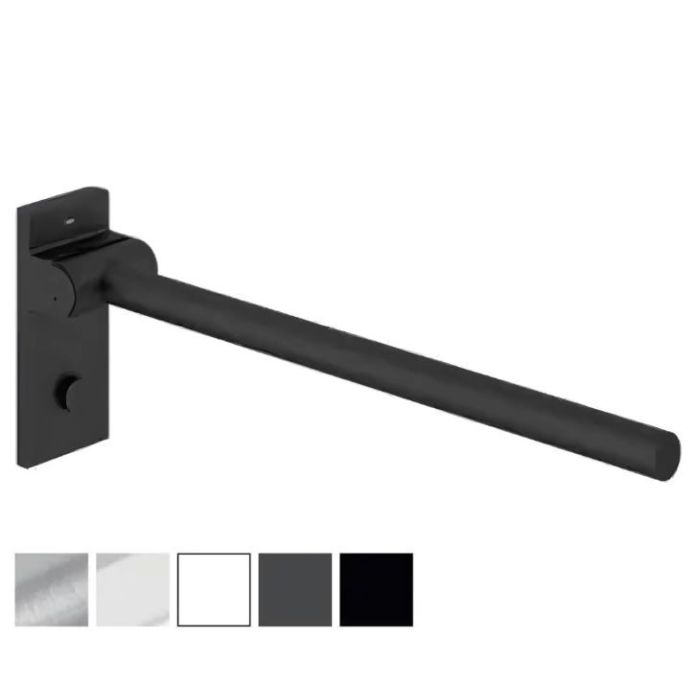

HEWI System 900 - 600mm Mobile Hinged Support Rail Mono, OPT Leg & Cover Plate - Choice of Finish
HEWI removable hinged support rail Mono Mobile, made of high-quality stainless steel. Maintenance free, permanently smooth, and easy moving joint. With an 600mm projection, wall plate, loading capacity of 75kg and a choice of five finishes. Matt Black, Powder Coated Matt White, Satin Finished, Chrome Plated and Matt Dark Grey Pearl Mica. Optional colour match support legs 565 or 645mm in length and wall fixing cover plates for when the rail has been demounted.
The HEWI Mono Mobile support rail, a round gripping rail, made of quality stainless steel. Folding support arm has a friction hinge, and 600mm projection. Fixings are concealed, creating a modern appearance. Permanently smooth and easy moving joint. With a choice of five stylish finishes.
The HEWI System 900 mobile support rail can be dismounted from the wall. Specifically beneficial for fitting into hotels, Airbnb’s, B&B’s, and domestic properties creating flexible usage when the rail is not in use or is not required.
Once the rail has been removed the wall mounting plate can be concealed with an optional colour matching cover plate. The mounting plates and covers are also available separately.
Optional colour matching HEWI floor supports legs, are also available in two lengths 565 and 645mm, for retrofitting onto the rails to increase stability when the support rail is in use.
Using the System 900 you can create a stylish and flexible handrail installation.
Key benefits:
Suitable for both wet and dry environments
Friction hinge for assisted use
Folding rail
Easy installation
Pore-free surfaces
Doc M compliant
Choice of five finishes / Product Code:
- Matt Black / 900.50.40060DC
- Powder Coated Matt White / 900.50.40060DX
- Satin Finished / 900.50.400XA
- Chrome Plated / 900.50.40040
- Matt Dark Grey Pearl Mica / 900.50.40060SC
Technical details:
Rail diameter 33.7mm
Load tested to 75kg (165lb)
600mm length
Secured by fixing screw to prevent unintentional removal
Optional Floor Support:
Two length options: 565mm or 645mm
Choice of five matching finishes to support rails
Diameter of 16mm
Height adjustment within +/- 15mm range
Warranty:
1 year manufacturer warranty
Please note:
The fixing screws/bolts/wall plugs that are not included - the installer should select the correct HEWI System 900 - fixing based on wall type
Please refer to the installation instructions for more information
VAT Exemption is available on this product - deducted at Checkout (Info)
HEWI removable hinged support rail Mono Mobile, made of high-quality stainless steel. Maintenance free, permanently smooth, and easy moving joint. With an 600mm projection, wall plate, loading capacity of 75kg and a choice of five finishes. Matt Black, Powder Coated Matt White, Satin Finished, Chrome Plated and Matt Dark Grey Pearl Mica. Optional colour match support legs 565 or 645mm in length and wall fixing cover plates for when the rail has been demounted.
Simply copy this text directly into your specification document...
HEWI System 900 - 600mm Mobile Hinged Support Rail Mono, OPT Leg & Cover Plate - Choice of Finish
Product code: 900.50.400
HEWI removable hinged support rail Mono Mobile, made of high-quality stainless steel. Maintenance free, permanently smooth, and easy moving joint. With an 600mm projection, wall plate, loading capacity of 75kg and a choice of five finishes. Matt Black, Powder Coated Matt White, Satin Finished, Chrome Plated and Matt Dark Grey Pearl Mica. Optional colour match support legs 565 or 645mm in length and wall fixing cover plates for when the rail has been demounted.
900.50.400XA - 600mm Hinged Support Rail Duo Design B - Satin Finish
HEWI removable hinged support rail Mono Mobile, is easily accessible for all, stylish Satin Finish made of stainless steel. 600mm in length, 210mm high and 101mm wide. With a loading capacity of 100kg.
900.50.40060DC - 600mm Mobile Hinged Support Rail Mono - Matt Black
HEWI removable hinged support rail Mono Design B easily accessible for all, stylish Satin finish, smooth and easy moving joint, made of stainless steel. 210mm high and 101mm wide with a loading capacity of 100kg.
900.50.40060DX - 600mm Mobile Hinged Support Rail Mono - Powder Coated Matt White
HEWI removable hinged support rail Mono Mobile - Design B, is easily accessible for all, stylish Powder Coated Matt White, smooth and easy moving joint, made of stainless steel. 210mm high and 101mm wide with a loading capacity of 100kg.
900.50.40060SC - 600mm Mobile Hinged Support Rail Mono - Powder Coated Matt Dark Grey Pearl Mica
HEWI Hinged Support rail Mono Design B easily accessible for all, stylish Powder Coated Matt Dark Grey Pearl Mica, smooth and easy moving joint, made of stainless steel. 210mm high and 101mm wide with a loading capacity of 75kg.
900.50.40040 - 600mm Mobile Hinged Support Rail Mono - Chrome Plated
HEWI removable hinged support rail Mono Design B easily accessible for all, stylish Chrome Plated finish made of stainless steel. 600mm in length, 210mm high and 101mm wide. With a loading capacity of 100kg.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish satin finish. Made of high quality stainless steel. With a vertical length of 565mm and a mounting height of 680mm.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish chrome plated finish. Made of high quality stainless steel. With a vertical length of 565mm and a mounting height of 680mm.
900.50.02160SC - 565mm Length - Matt Dark Grey Pearl Mica
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish powder coated matt dark grey pearl mica. Made of high quality stainless steel. With a vertical length of 565mm and a mounting height of 680mm.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish powder coated matt black finish. Made of high quality stainless steel. With a vertical length of 565mm and a mounting height of 680mm.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish powder coated matt white finish. Made of high quality stainless steel. With a vertical length of 565mm and a mounting height of 680mm.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish satin finish. Made of high quality stainless steel. With a vertical length of 645mm and a mounting height of 760mm.
HEWI Floor Support, for retrofitting on hinged support rails, in a stylish chrome plated finish. Made of high quality stainless steel. With a vertical length of 645mm and a mounting height of 760mm.
900.50.02060SC - 645mm Length - Matt Dark Grey Pearl Mica
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish matt dark grey pearl mica finish. Made of high quality stainless steel. With a vertical length of 645mm and a mounting height of 760mm.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish matt black finish. Made of high quality stainless steel. With a vertical length of 645mm and a mounting height of 760mm.
HEWI Floor Support, for retrofitting on hinged support rails, creating a steady anchor for all ages and abilities to be able to use. In a stylish powder coated matt white finish. Made of high quality stainless steel. With a vertical length of 645mm and a mounting height of 760mm.
900.50.003XA98 - Mounting Plate with Cover - Satin Finished/Signal White
HEWI mounting plate with cover, the cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. Both mounting plate and face plate are made of high-quality stainless steel. Satin Finished cover plate with a Signal White frame, 80mm wide, 226mm high and 20mm deep.
900.50.003XA92 - Mounting Plate with Cover - Satin Finished/Anthracite Grey
HEWI mounting plate with cover, the cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. Both mounting plate and face plate are made of high-quality stainless steel. Satin Finished cover plate with a Anthracite Grey frame, 80mm wide, 226mm high and 20mm deep.
900.50.0034092 - Mounting Plate with Cover - Chrome Plated/Anthracite Grey
HEWI mounting plate with cover, the cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. Both mounting plate and face plate are made of high-quality stainless steel. Chrome Plated cover plate with a Anthracite Grey frame, 80mm wide, 226mm high and 20mm deep.
900.50.0034098 - Mounting Plate with Cover - Chrome Plated/Signal White
HEWI mounting plate with cover, the cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. Both mounting plate and face plate are made of high-quality stainless steel. Chrome Plated cover plate with a Signal White frame, 80mm wide, 226mm high and 20mm deep.
900.50.00360CV - Mounting Plate with Cover - Matt Black
HEWI mounting plate with cover, the cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. Both mounting plate and face plate are made of high-quality stainless steel. Matt Black finish on the cover plate and mounting plate, 80mm wide, 226mm high and 20mm deep.
900.50.00360AS - Wall Cover for Mounting Plate - Matt White
HEWI mounting plate with cover, the cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. Both mounting plate and face plate are made of high-quality stainless steel. Matt White finish on the cover plate and mounting plate, 80mm wide, 226mm high and 20mm deep.
900.50.002XA98 - Wall Cover for Mounting Plate - Satin Finished/Signal White
The HEWI cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. With a stylish Satin finish to match the removed handrail and a Signal White frame. The face plate is made of high-quality stainless steel. 80mm wide, 226mm high and 20mm deep.
The HEWI cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. With a stylish Satin finish to match the removed handrail and a Anthracite Grey frame. The face plate is made of high-quality stainless steel. 80mm wide, 226mm high and 20mm deep.
The HEWI cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. With a stylish Chrome Plated finish to match the removed handrail and a Anthracite Grey frame. The face plate is made of high-quality stainless steel. 80mm wide, 226mm high and 20mm deep.
900.50.0024098 - Wall Cover for Mounting Plate - Chrome Plated/Signal White
The HEWI cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. With a stylish Chrome Plated finish to match the removed handrail and a Signal White frame. The face plate is made of high-quality stainless steel. 80mm wide, 226mm high and 20mm deep.
900.50.00260CV - Wall Cover for Mounting Plate - Matt Black
The HEWI cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. With a stylish Matt Black finish to match the removed handrail. The face plate is made of high-quality stainless steel. 80mm wide, 226mm high and 20mm deep.
900.50.00260AS - Wall Cover for Mounting Plate - Matt White
The HEWI cover is designed to disguise fixings when the HEWI mobile handrails are temporarily removed. With a stylish Matt White finish to match the removed handrail. The face plate is made of high-quality stainless steel. 80mm wide, 226mm high and 20mm deep.
Available to order (Info)
Please Email for a lead time
