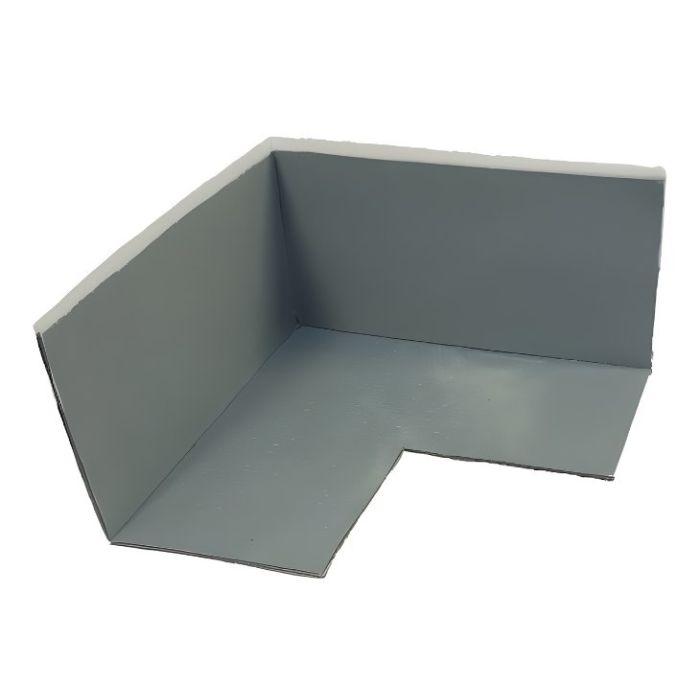

Hydromat EasyLap Double Sided Self-adhesive Butyl Internal Corner

Hydromat EasyLap Double-Sided Self-Adhesive Butyl Internal Corners are designed to create secure, waterproof seals at internal wall-to-wall and floor-to-wall junctions within wetroom and bathroom tanking systems.

Used as part of the Hydromat EasyLap waterproofing system, these preformed internal corners are installed before the joint tape and membrane, helping to form one continuous waterproof barrier throughout the installation. The double-sided butyl construction allows Hydromat EasyLap membrane and joint tape to bond securely at critical junctions where movement and water exposure are highest.

The flexible butyl material accommodates structural movement while maintaining a permanently waterproof seal. Once installed, the system can be tiled immediately with no curing time required.

Key benefits:

• Preformed internal corner for wetroom tanking systems
• Double-sided self-adhesive butyl construction
• Designed for use with Hydromat EasyLap membrane system
• Creates secure waterproof sealing at internal junctions
• Flexible material accommodates movement
• 120 mm x 120 mm size
• Suitable for walls and floors
• Compatible with underfloor heating systems
• Allows immediate tiling after installation

Typical applications:

• Internal floor-to-wall junctions
• Internal wall-to-wall corners
• Wetrooms and level access showers
• Bathrooms and tiled shower areas

Installation guidance:

• Ensure the substrate is sound, clean and free from contaminants
• Fill significant gaps or irregularities before installation
• Prime surfaces where required and allow to dry
• Install internal corners before applying joint tape and membrane
• Apply joint tape into wall-to-wall junctions, overlapping onto the corner down to the floor
• Apply floor-to-wall tape overlapping onto the corner by 50 mm
• Hydromat membrane should overlap onto the tape by a minimum of 70 mm
• Roll all areas thoroughly to ensure maximum adhesion
• Seal all joints and penetrations using Hydromat Butyl Sealant
• The aim is to create one continuous waterproof layer down to the drain

Also available separately:

• Hydromat EasyLap membrane roll – 15 m x 550 mm (7.5 m²)
• Hydromat self-adhesive joint tape
• Hydromat self-adhesive external corners
• 1 litre primer
• 310 ml Hydromat Butyl Sealant
• Hydromat application roller

Technical details:

• Product type: Double-sided self-adhesive butyl internal corner
• Size: 120 mm x 120 mm
• System compatibility: Hydromat EasyLap waterproofing system
• Application: Internal wall-to-wall and floor-to-wall junctions
• Installation: Immediate bond, no curing time
• Tile finish: Ready to tile immediately
• Suitable for underfloor heating: Yes

Warranty:

• When installed correctly by a competent person and used for normal wetroom applications, the Hydromat EasyLap system carries a life-of-tiling manufacturer guarantee, subject to grout maintenance
• No guarantee is offered where installation or maintenance requirements are not followed

FAQs:

• What is a Hydromat internal corner used for? It seals internal junctions within the tanking system to maintain a continuous waterproof barrier.
• When should internal corners be installed? Internal corners should be installed before applying the joint tape and membrane.
• How much overlap is required? Joint tape overlaps the corner by 50 mm and the membrane overlaps onto the tape by at least 70 mm.
• Can tiles be installed immediately? Yes, the Hydromat EasyLap system allows immediate tiling after installation.
• Is it compatible with underfloor heating? Yes, it is suitable for installations incorporating underfloor heating systems.
