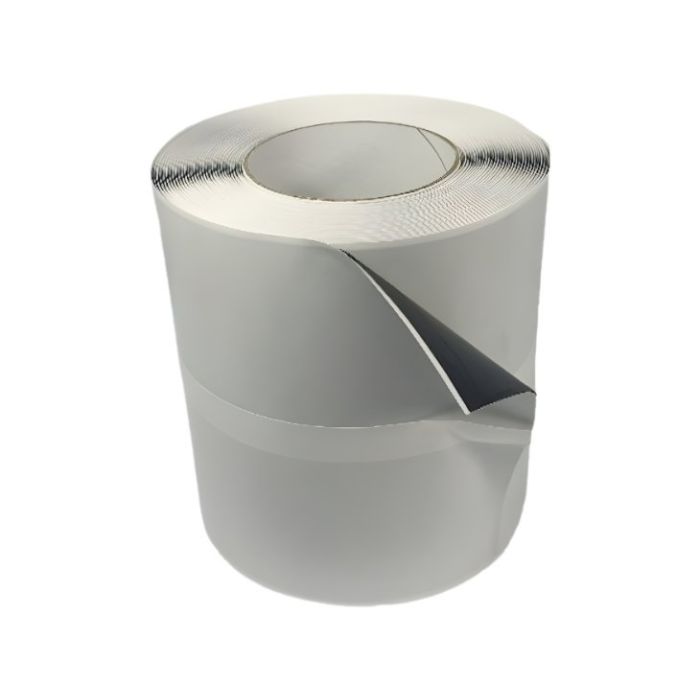

Hydromat EasyLap Single Sided Self-adhesive Butyl Joint Tape - 10m x 150mm

Hydromat EasyLap Single-Sided Self-Adhesive Butyl Joint Tape is designed to create secure, waterproof joints within the Hydromat EasyLap wetroom tanking system, ensuring a continuous waterproof barrier across walls and floors.

Used in conjunction with the Hydromat EasyLap membrane (15 m x 550 mm, 7.5 m²), this high-tack butyl tape reinforces wall-to-wall joints, floor-to-wall junctions and membrane overlaps. The self-adhesive backing provides immediate bonding, while the split release film allows accurate positioning and easier installation.

As part of the Hydromat EasyLap system, the joint tape helps form one continuous waterproof layer from the walls down to the drain, allowing tiles to be installed immediately after application with no curing time required.

Key benefits:

• Single-sided self-adhesive butyl joint tape
• Designed for use with the Hydromat EasyLap tanking system
• Creates secure waterproof joints and overlaps
• Supports the 50 mm EasyLap overlap system
• 10 m roll length
• 150 mm width for effective joint reinforcement
• Split release backing for easier positioning and application
• Suitable for walls and floors
• Compatible with underfloor heating systems
• Allows immediate tiling after installation

Typical applications:

• Wall-to-wall junctions
• Wall-to-floor junctions
• Membrane overlaps
• Wetroom floor former installations
• Continuous waterproofing in bathrooms and wetrooms

Installation guidance:

• Ensure the substrate is sound, clean and free from contaminants
• Fill any gaps or significant irregularities before installation
• Prime surfaces and allow to dry before application
• Install internal corners first
• Apply joint tape into wall-to-wall junctions, overlapping onto the internal corner down to the floor
• Apply joint tape into floor-to-wall junctions, overlapping onto the internal corner by 50 mm
• Do not overlap floor joint tape onto the vertical tape
• Apply Hydromat membrane from the corner, overlapping onto the joint tape by minimum 70 mm
• Use the integrated 50 mm overlap strip when joining membrane runs
• Roll all tape and membrane thoroughly for maximum adhesion
• Seal all gaps, joints and penetrations using Hydromat Butyl Sealant
• The aim is to create one continuous waterproof layer down to the drain

Also available separately:

• Hydromat EasyLap membrane roll – 15 m x 550 mm (7.5 m²)
• Hydromat internal corners
• Hydromat external corners
• Hydromat butyl sealant
• Hydromat application roller
• 1 litre primer

Technical details:

• Product type: Single-sided self-adhesive butyl joint tape
• Length: 10 m
• Width: 150 mm
• System compatibility: Hydromat EasyLap membrane system
• Application: Walls and floors
• Installation: Immediate bond, no curing time
• Tile finish: Ready to tile immediately
• Suitable for underfloor heating: Yes

Warranty:

• When installed correctly by a competent person and used for normal wetroom applications, the Hydromat EasyLap system carries a life-of-tiling guarantee, subject to grout maintenance
• No guarantee is offered where installation instructions are not followed

FAQs:

• What is Hydromat EasyLap joint tape used for? It seals and reinforces joints, overlaps and junctions within the tanking system.
• Is joint tape required? Yes, it is essential for creating a continuous waterproof barrier.
• How much overlap is required? The membrane should overlap the joint tape by at least 70 mm.
• Can tiles be installed immediately? Yes, the Hydromat EasyLap system allows immediate tiling after installation.
• Is it suitable for wetrooms? Yes, it is designed specifically for wetroom and bathroom waterproofing.
