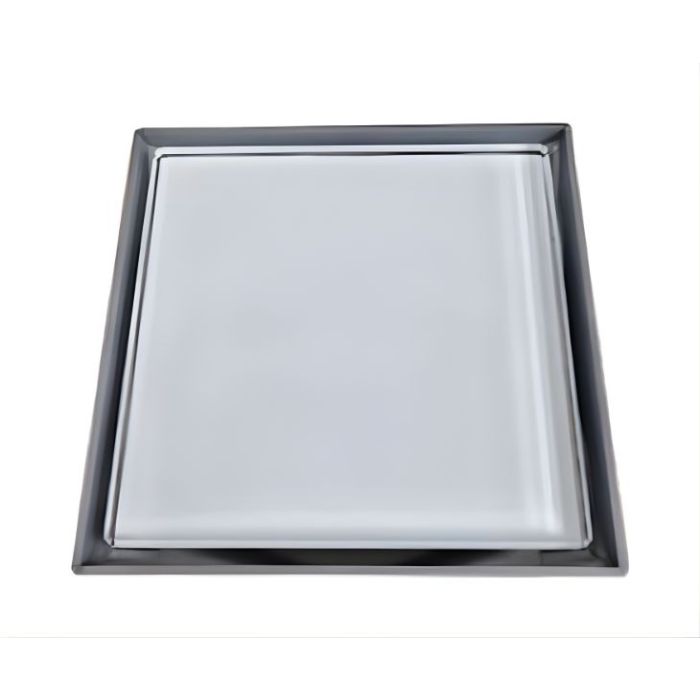

Innovations Glass Grid for Tiled Floors, 130x130mm - White

Durable low iron White tempered safety glass for square tiling frame with removable grid. Create a premium finishing touch to any tiled wet room floor.

Tempered glass increases the strength of the grid, the safety tempered glass provides is caused by the glass breaking into small pieces rather than sharp shards.

The frame should be placed centrally over the waste so to allow full access to the trap for cleaning.

Start tiling the floor former from the edge of the frame outwards, on completion of the grouting fill the joint between the frame and tiles with silicone sealant.

The grid is removable for access and maintenance of the Purus wastes below.

Technical details:

• Dimensions: 130 x 130mm
• Height: 12mm
• Materials: Stainless steel, tempered safety glass and plastic
• Top: 8mm thick White tempered safety glass
• Backing plate: 3mm stainless steel
• Frame: Grey plastic
• Tempered safety glass: BSEN 12150
• The frame can be rotated to the desired location of the tiles

Compatible with:

• Purus Minimax 50 with Horizontal Outlet (Product Code: 7113764UK)
• Purus Minimax 2-Part Wet Floor Gulley, Horizontal Outlet (Product Code: 52719)
• Purus Mini Brage 110 Vertical Outlet (Product Code: 7113538UK-F)
• Purus Mini Brage 50 Vertical Waste Outlet (Product Code: 7113539UK)
• Purus Mini Oden 50, Horizontal Outlet (Product Code: 7113535UK)
