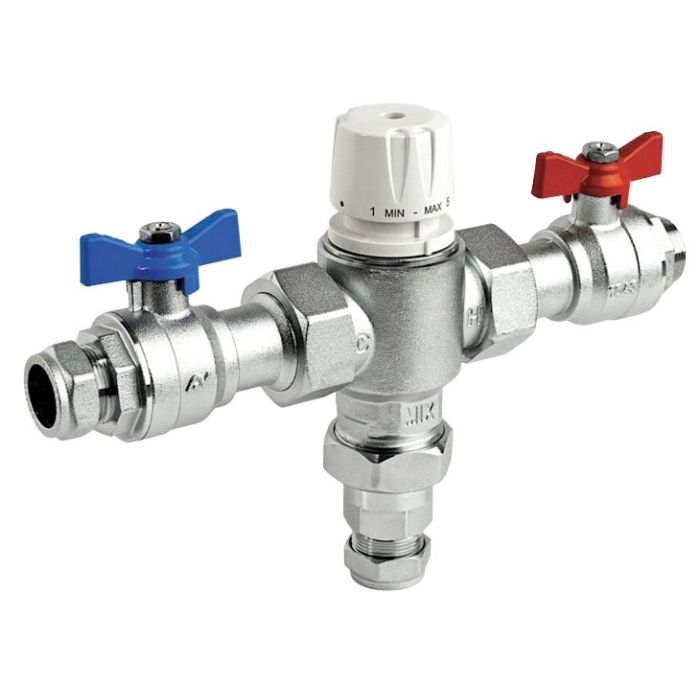

Inta Intamix Pro V 28mm with Isolating Unions

Inta Intamix Pro V 28mm thermostatic failsafe mixing valve with isolated unions.

Perfect for use where a high volume of water is required at the outlet, such as shower blocks and centralised mixing.

Providing a high volume of water at a stable temperature, the Intamix Pro reflects the quality of the Intatec range.

Key benefits:

• Thermostatic protection
• Tamper-proof head
• Single piece thermostatic cartridge construction
• Automatic shut off in the event of hot or cold water failure
• High flow rate with low pressure drops
• Adjustable outlet temperature

Safety:

• Anti-scald - water is prevented from getting hot enough to scald

Technical details:

• Temperature adjustment range: 30°C - 65°C
• Temperature stability: ±2°C
• Max inlet temperature: 85°C
• Max operating pressure: 14 bar static
• Min inlet pressure: 0.2 bar dynamic
• Min temperature to achieve failsafe: 10°C
• Max pressure inlet differential: 2:1

Warranty:

• 1 year manufacturer warranty
